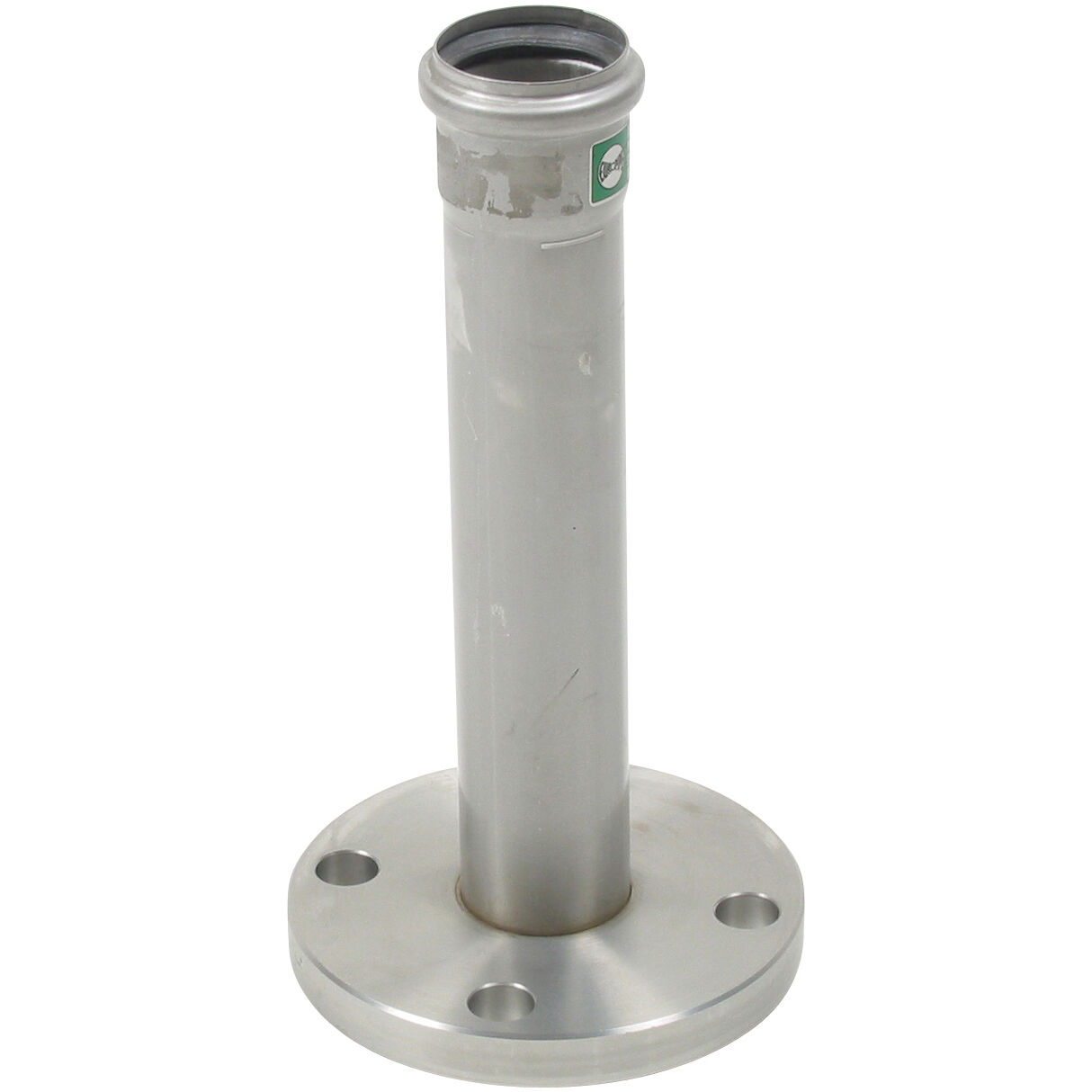

ANSI FLANGE ADAPTOR WITH SOCKET - (854.025.050 S)
×
![]()
Part Of the Series: Adaptor-flange-ANSI
Type no.: 854.025.050 S
EAN no.: 5705499409871
RSK no.: 1552184
NRF no.: 2172715
ANSI FLANGE ADAPTOR WITH SOCKET
-Diameter: Ø50mm
-Flange ANSI B16.5
-Stainless steel: AISI316L/EN1.4404

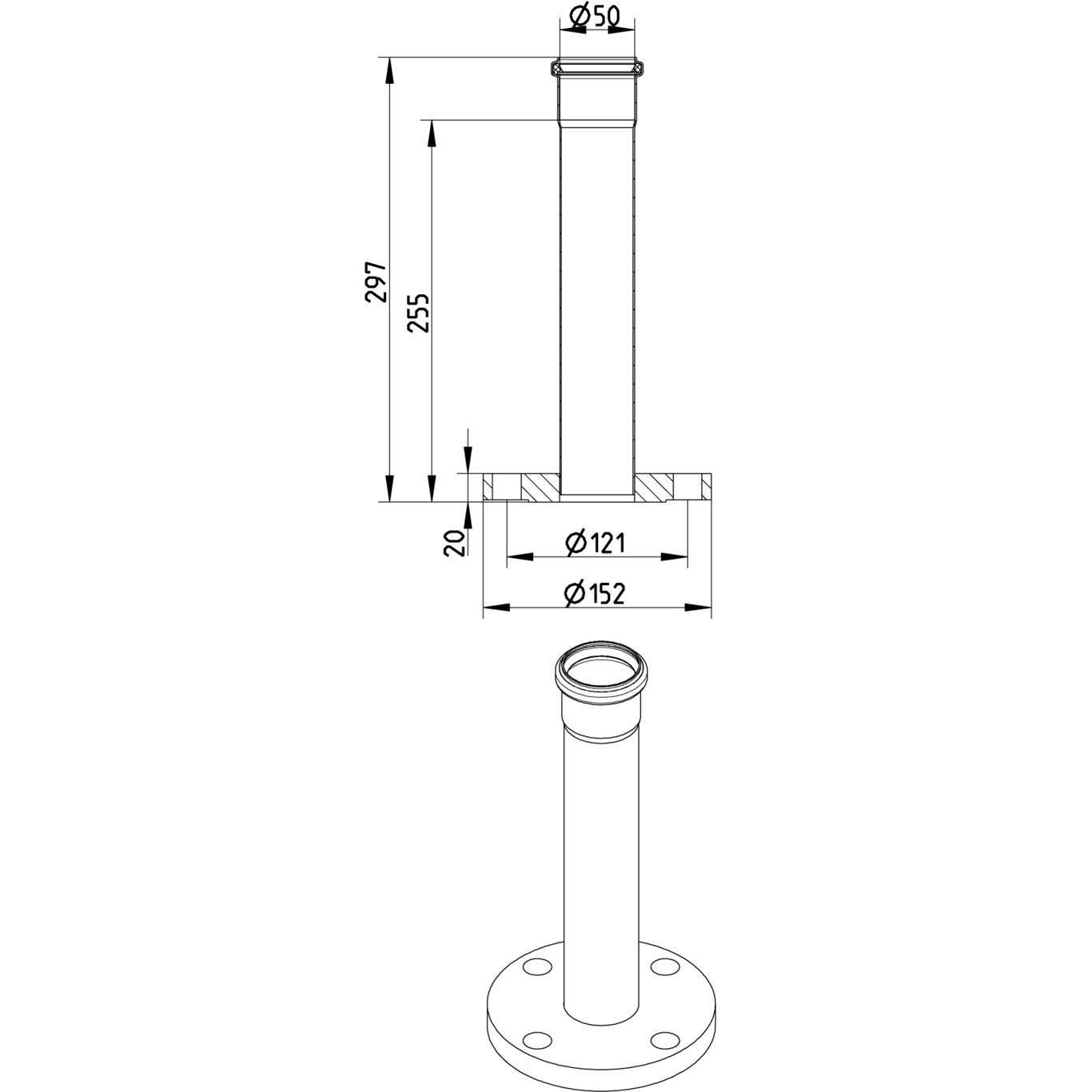

| Product Specification | |
|---|---|
| Length (mm) | 255 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 297 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 2,52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
