DIN FLANGE ADAPTOR WITH SOCKET - (854.300.050 S)
Part Of the Series: Adaptor-flange-DIN
Type no.: 854.300.050 S
EAN no.: 5705499403879
RSK no.: 1552189
NRF no.: 2170312

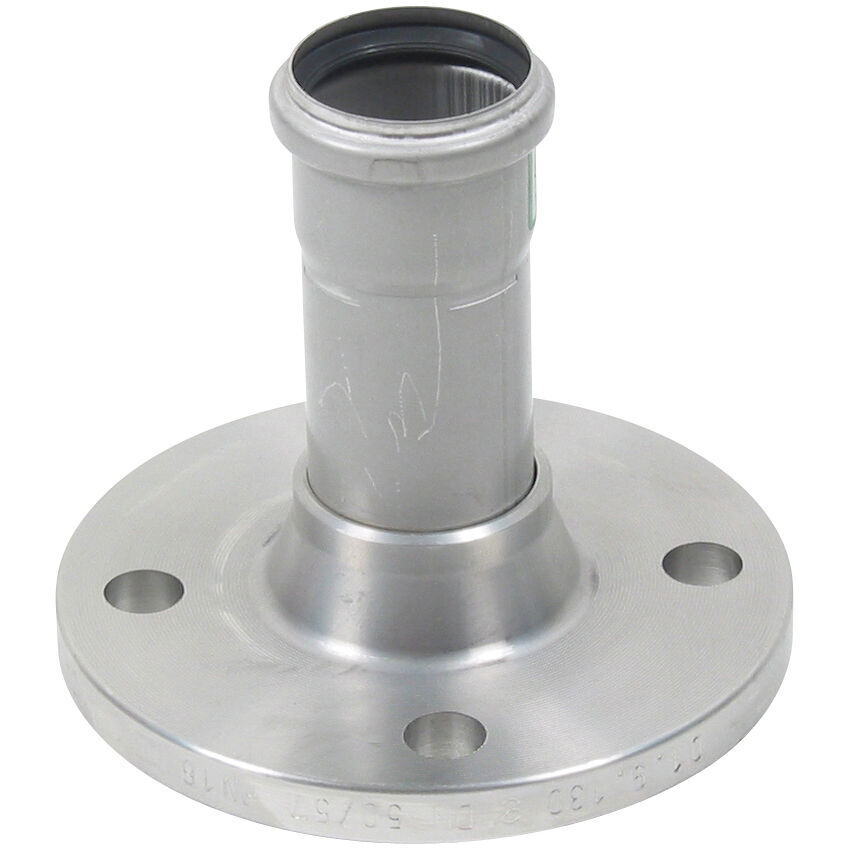

DIN FLANGE ADAPTOR WITH SOCKET
-Diameter: Ø50mm
-Flange PN16/DN50, DIN 2633/EN1092-1
-Stainless steel: AISI316L/EN1.4404

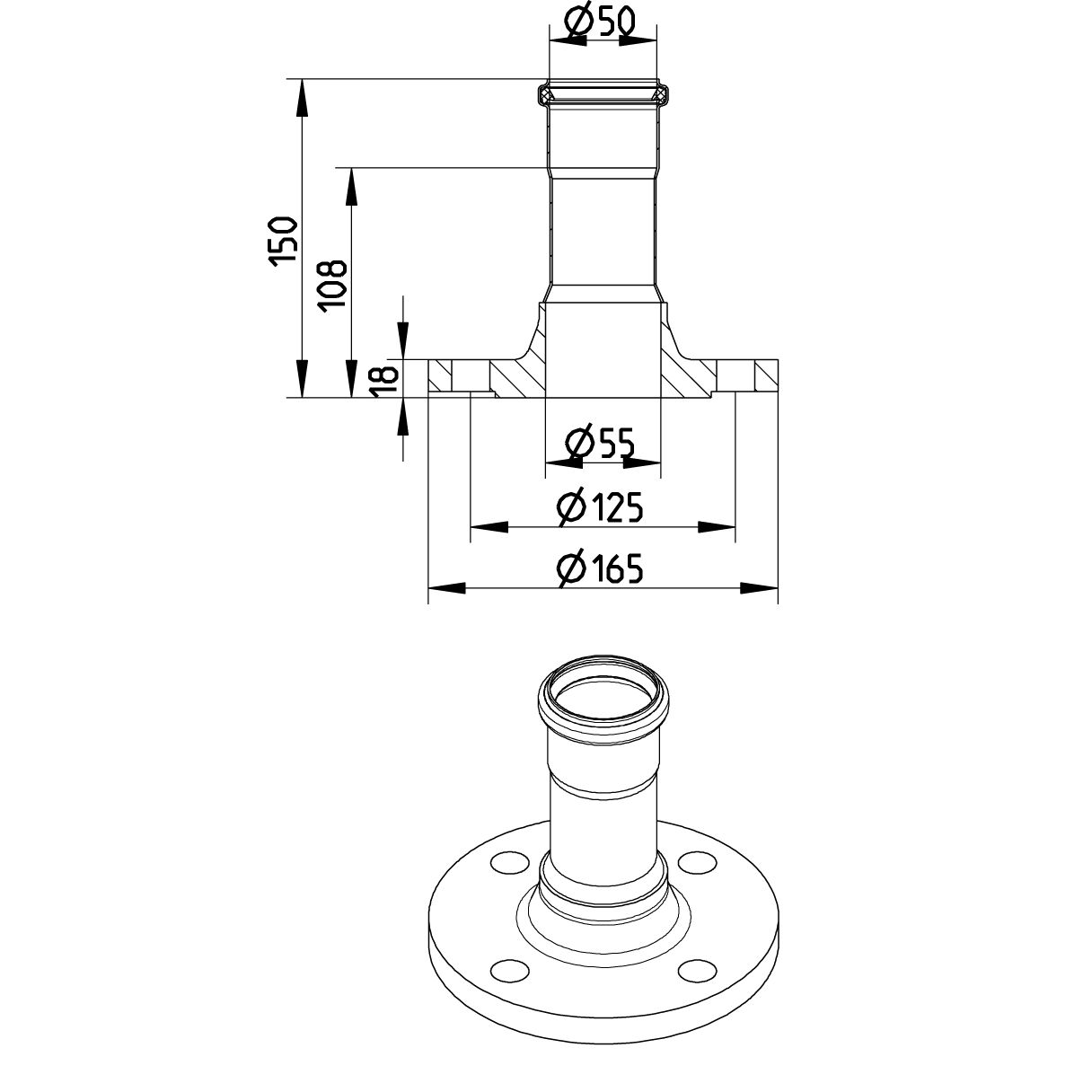

Product Specification | |
---|---|
Length (mm) | 108 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 150 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 2,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
HACCP Food Safety Programme - Australasia Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA_02
