DIN FLANGE ADAPTOR WITH SOCKET - (854.300.110 S)
×
![]()
Part Of the Series: Adaptor-flange-DIN
Type no.: 854.300.110 S
EAN no.: 5705499403886
RSK no.: 1552191
NRF no.: 2170314

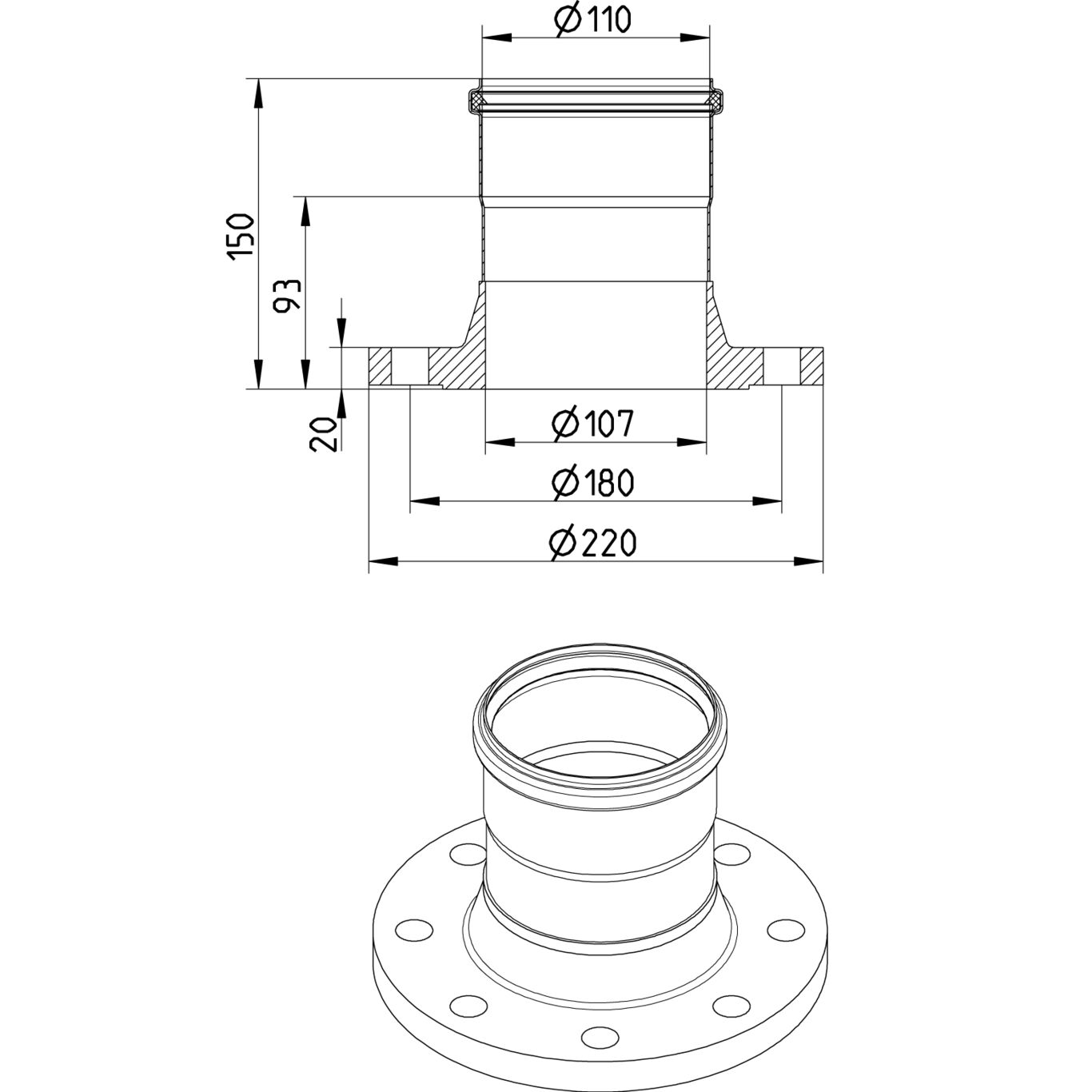

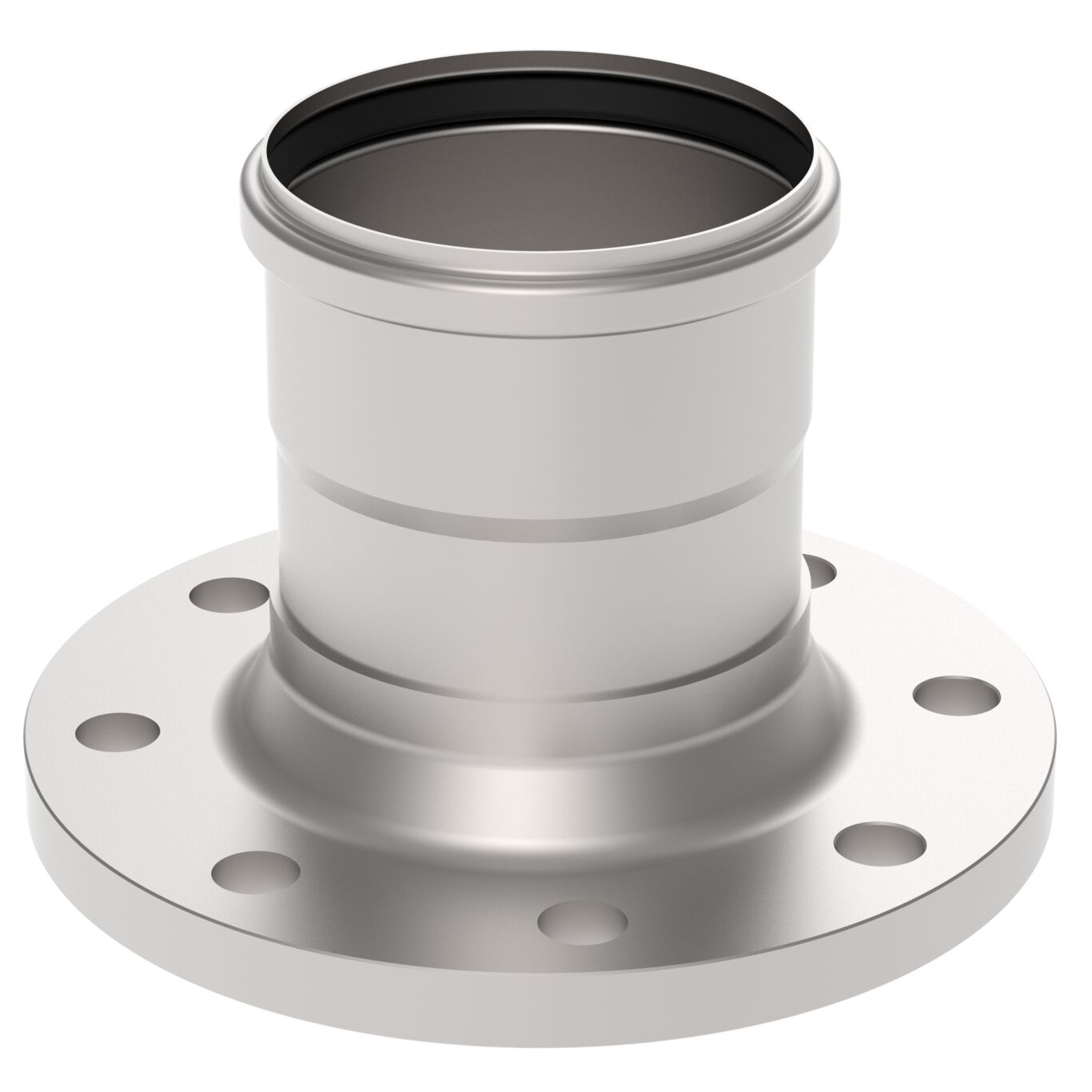

DIN FLANGE ADAPTOR WITH SOCKET
-Diameter: Ø110mm
-Flange PN16/DN100, DIN 2633/EN1092-1
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 93 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 5,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
