DIN FLANGE ADAPTOR WITH SPIGOT - (854.310.110 S)
Part Of the Series: Adaptor-flange-DIN
Type no.: 854.310.110 S
EAN no.: 5705499403909
RSK no.: 1552195
NRF no.: 2170318

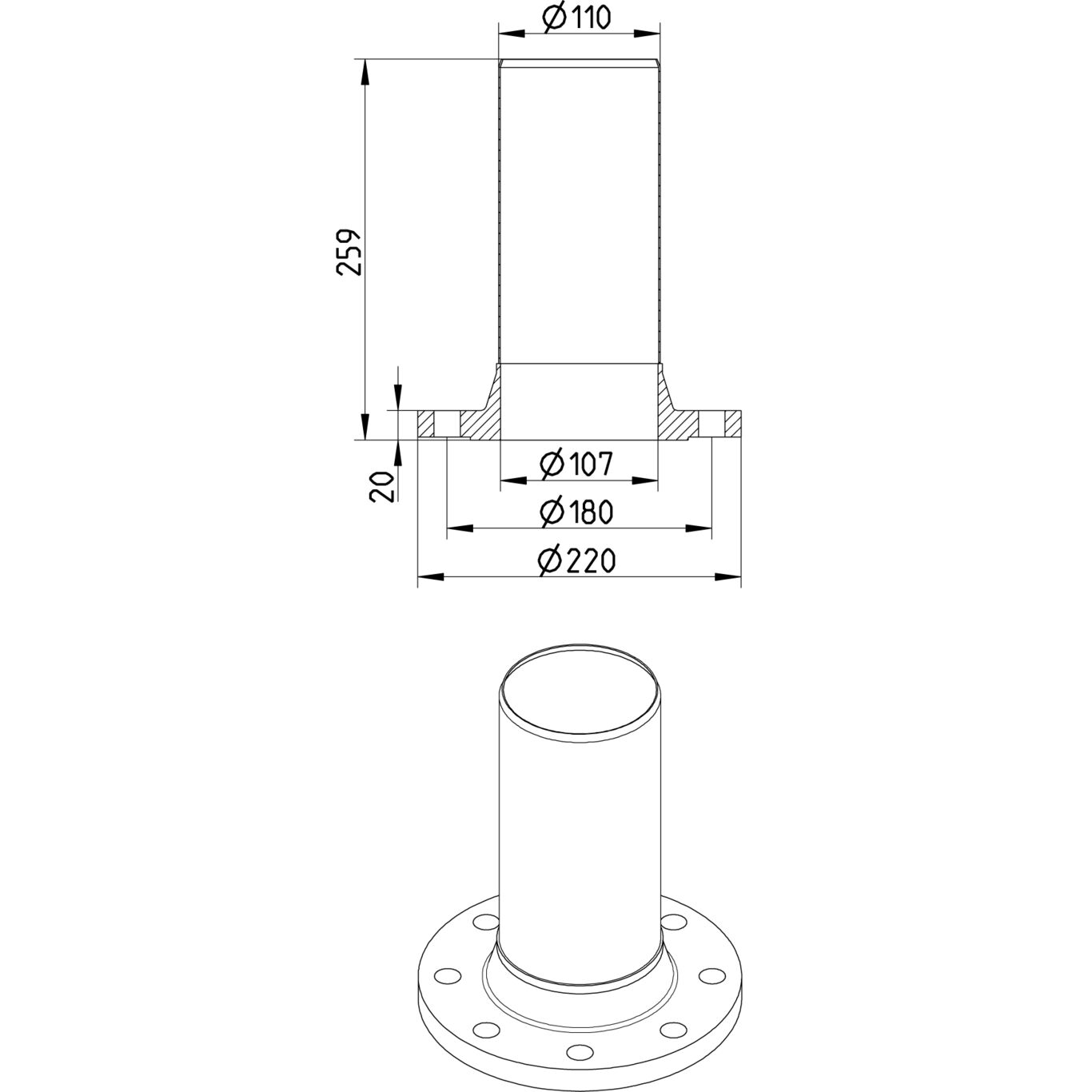

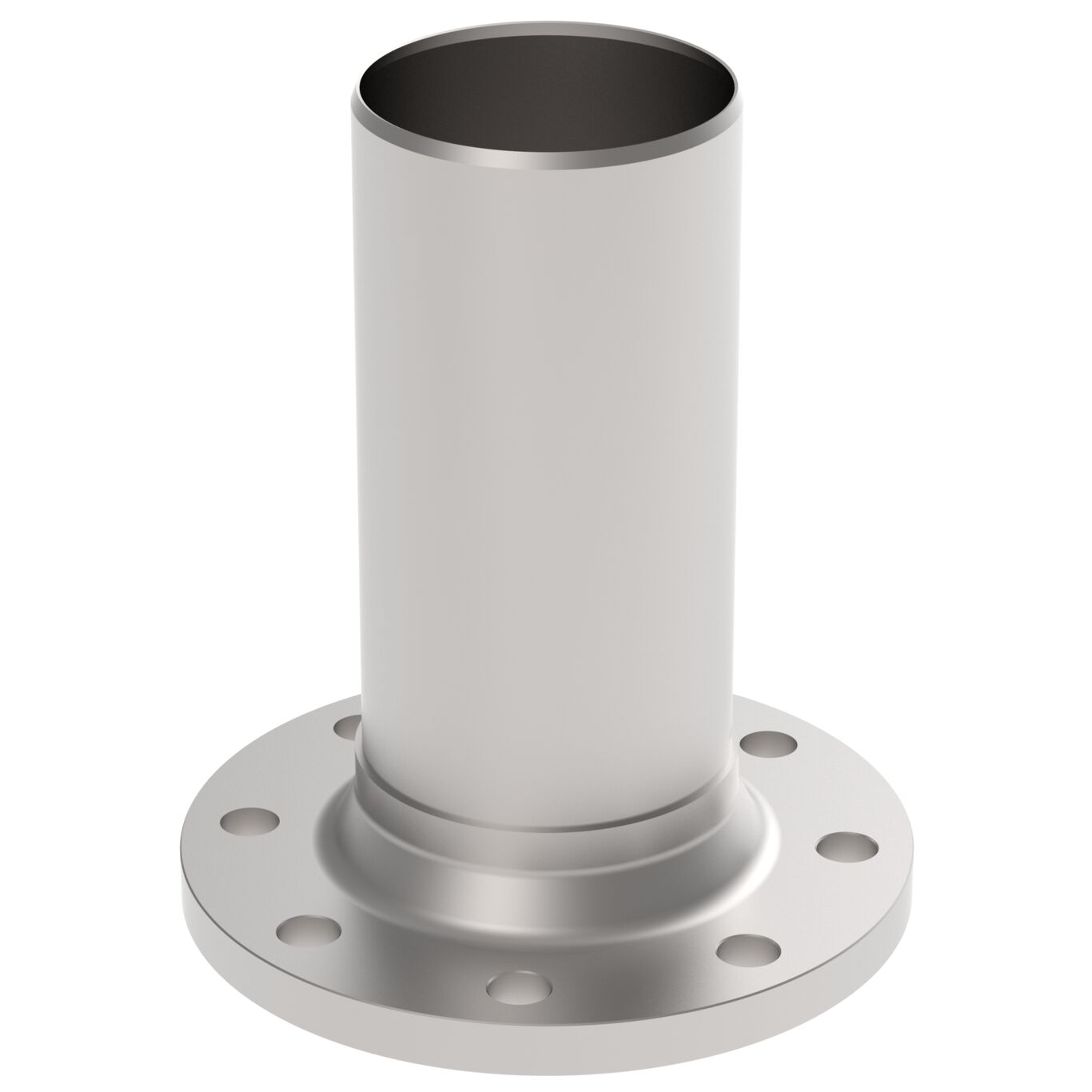

DIN FLANGE ADAPTOR WITH SPIGOT
-Diameter: Ø110mm
-Flange PN16/DN100, DIN 2633/EN1092-1
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length (mm) | 207 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 259 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 5,15 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Europe DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA
