BEND 15° - (820.015.250 S)

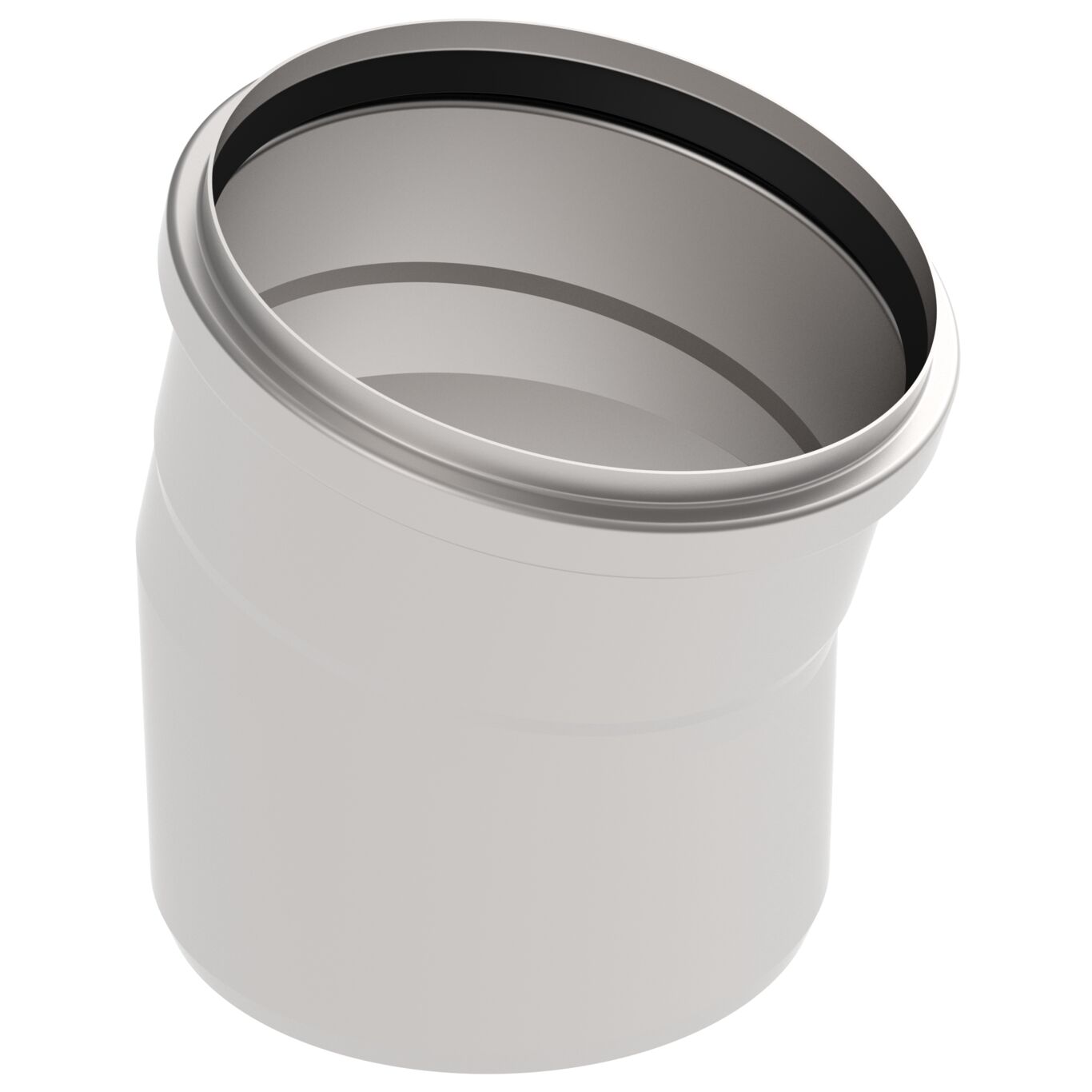

Product Image - Bend-15

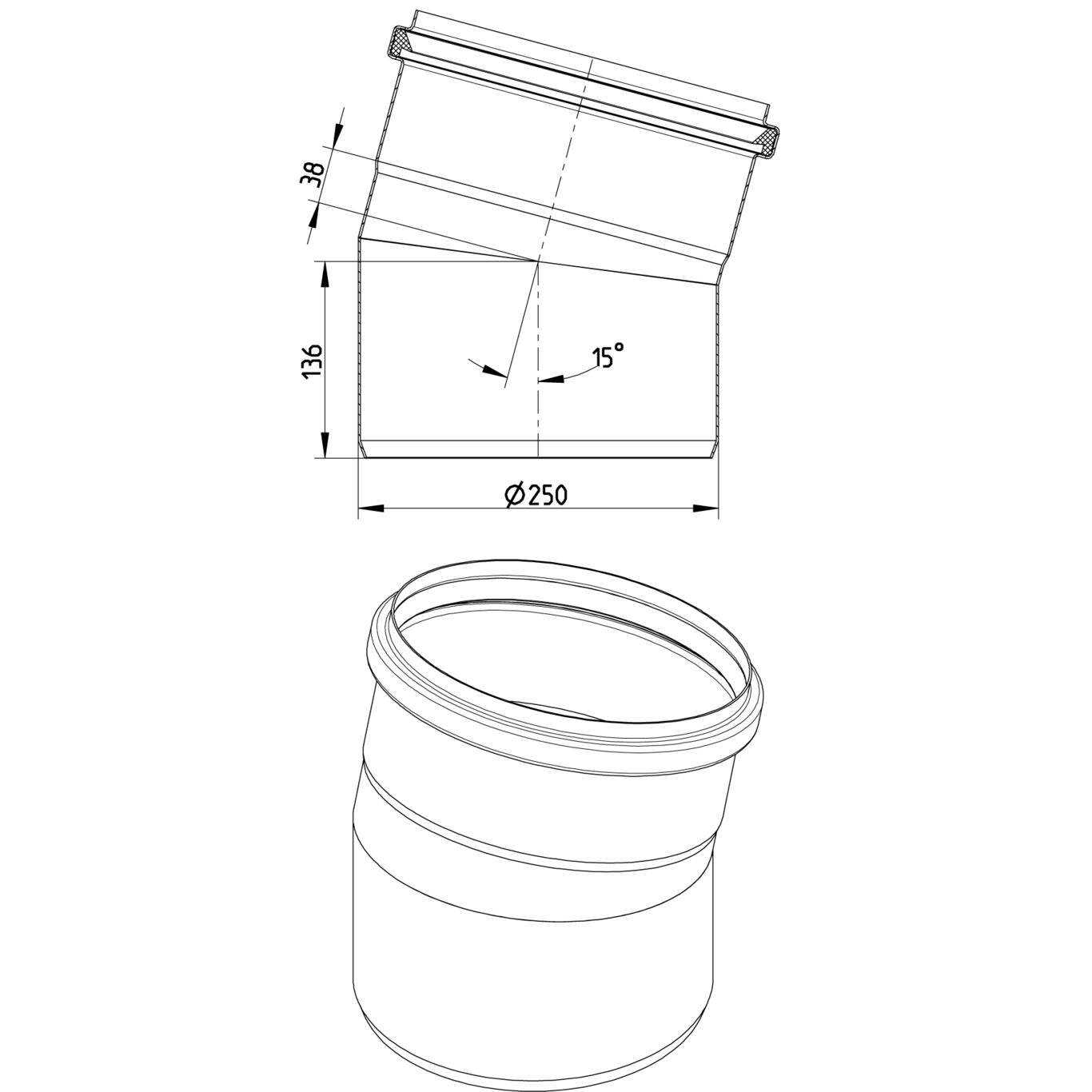

Line Drawing - Bend-15

Part Of the Series: Bend-15

Type no.: 820.015.250 S

EAN no.: 5705499121599

VVS no.: 160209550

RSK no.: 1552157

LVI no.: 0250587

BEND 15°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	15
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	250
Weight (kg)	3,03

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe DK - VA 2.12/19350 NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
