BEND 15° - (820.015.315 S)
×
![]()
Part Of the Series: Bend-15
Type no.: 820.015.315 S
EAN no.: 5705499413816
VVS no.: 160209615
NRF no.: 2172514
LVI no.: 0250588

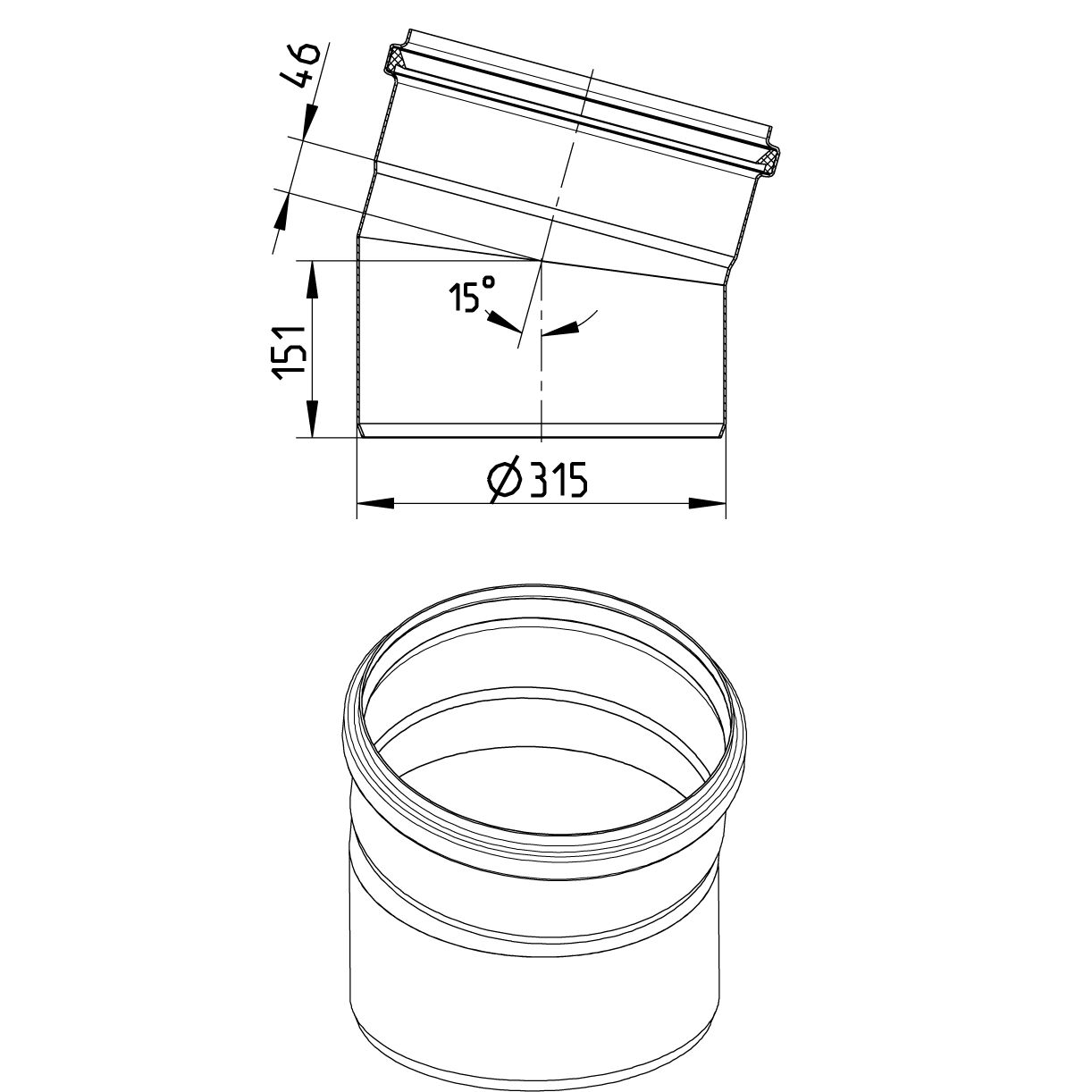

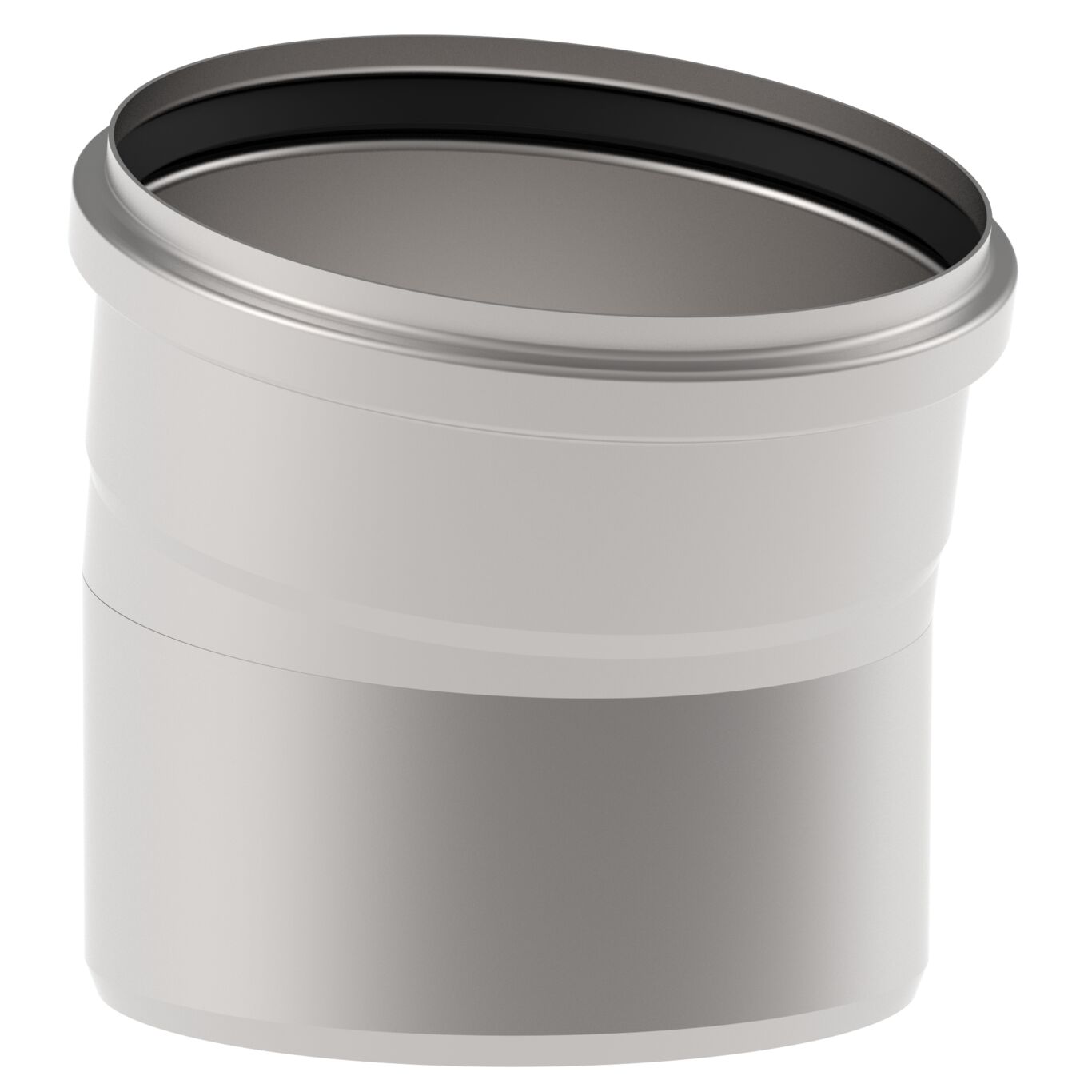

BEND 15°
-Diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 15 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 5,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD
DE - TÜV Rheinland R 60178453 0001
Declaration of Perfomance BS-EN1124-1-002
Declaration of Perfomance EN1124-1-001
