BEND 22.5° - (820.023.075 S)
×
![]()
Part Of the Series: Bend-22.5
Type no.: 820.023.075 S
EAN no.: 5705499401219
VVS no.: 160206375
NRF no.: 2172516

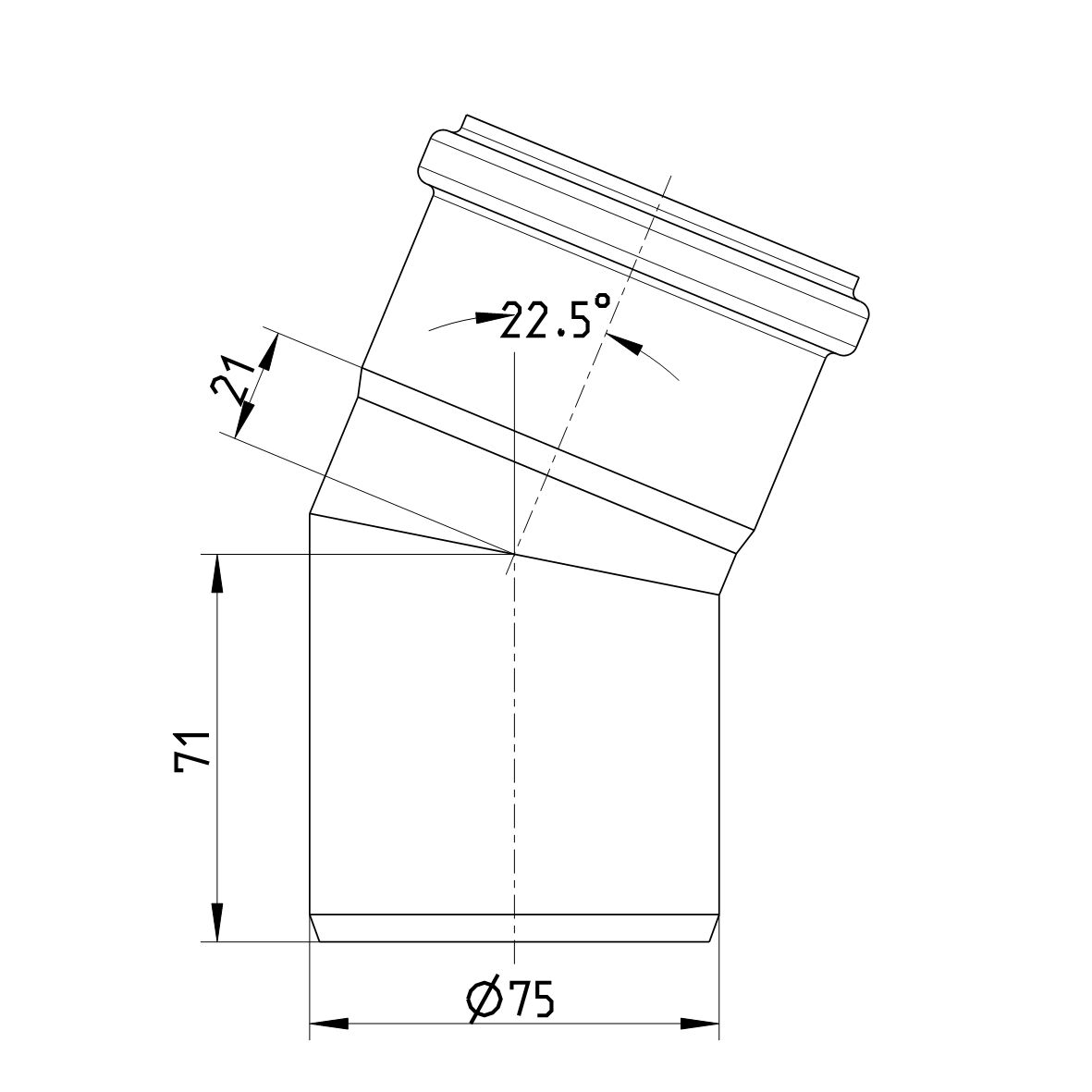

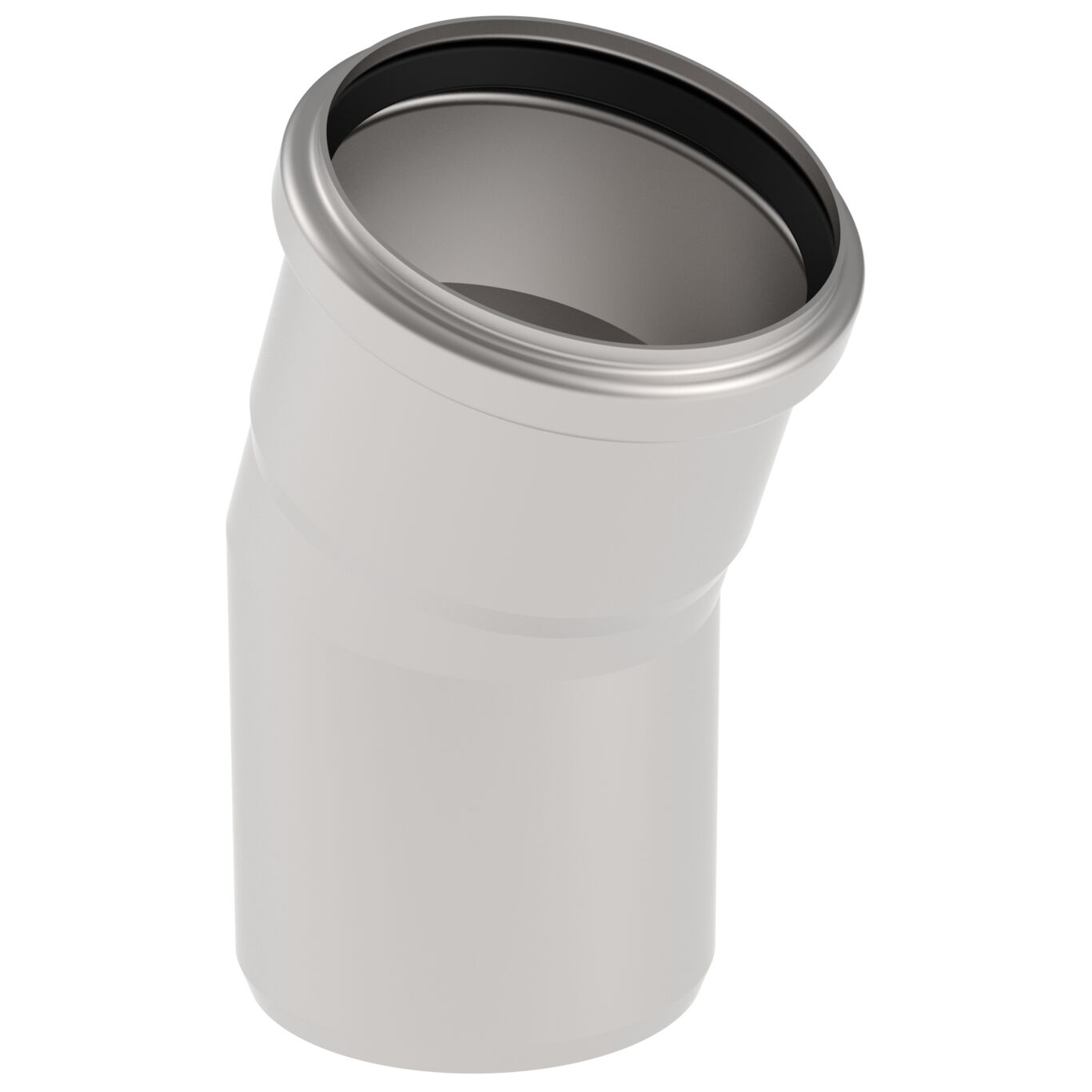

BEND 22.5°
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 22.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,29 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA
