BEND 22.5° - (820.023.160 S)
×
![]()
Part Of the Series: Bend-22.5
Type no.: 820.023.160 S
EAN no.: 5705499408645
NRF no.: 2172518

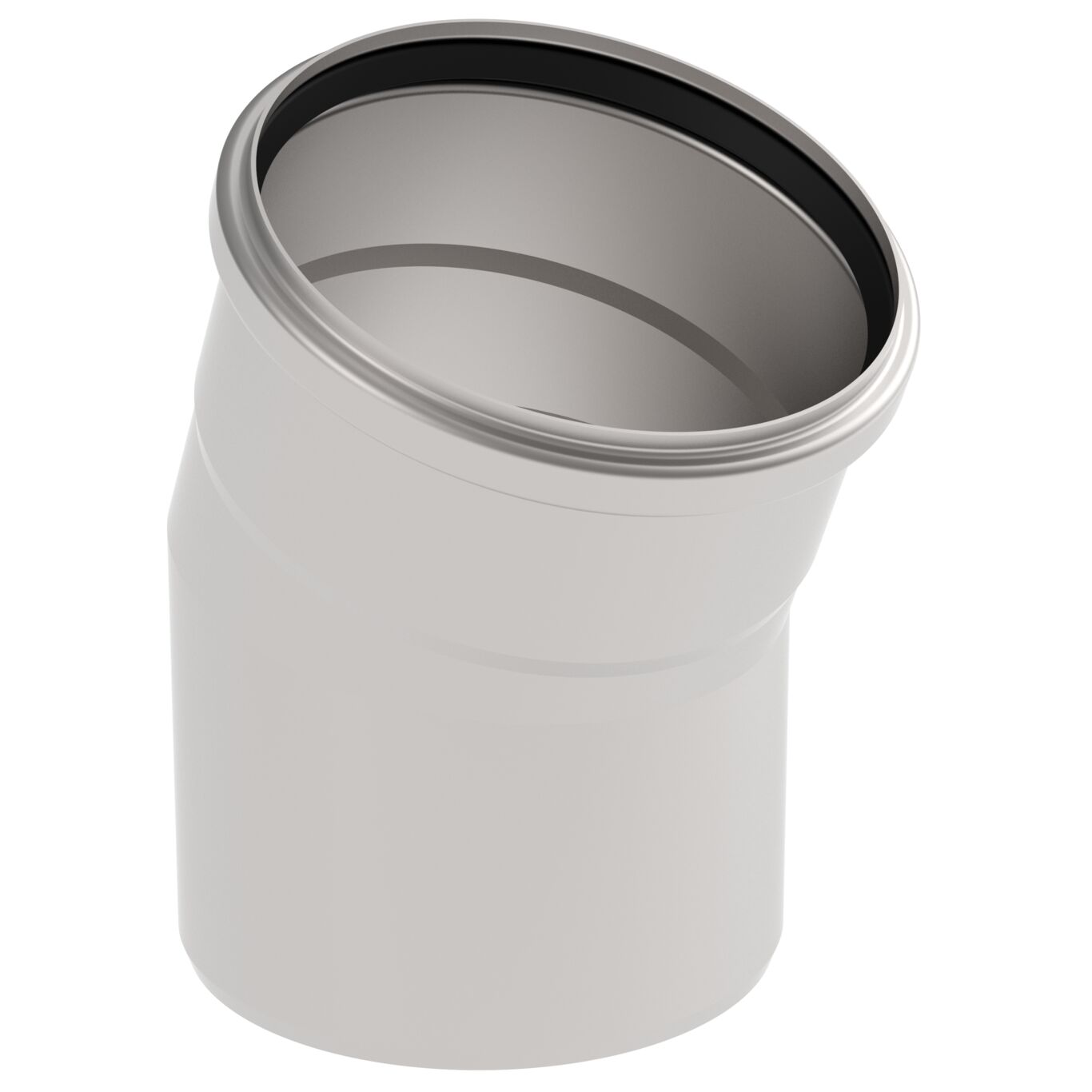

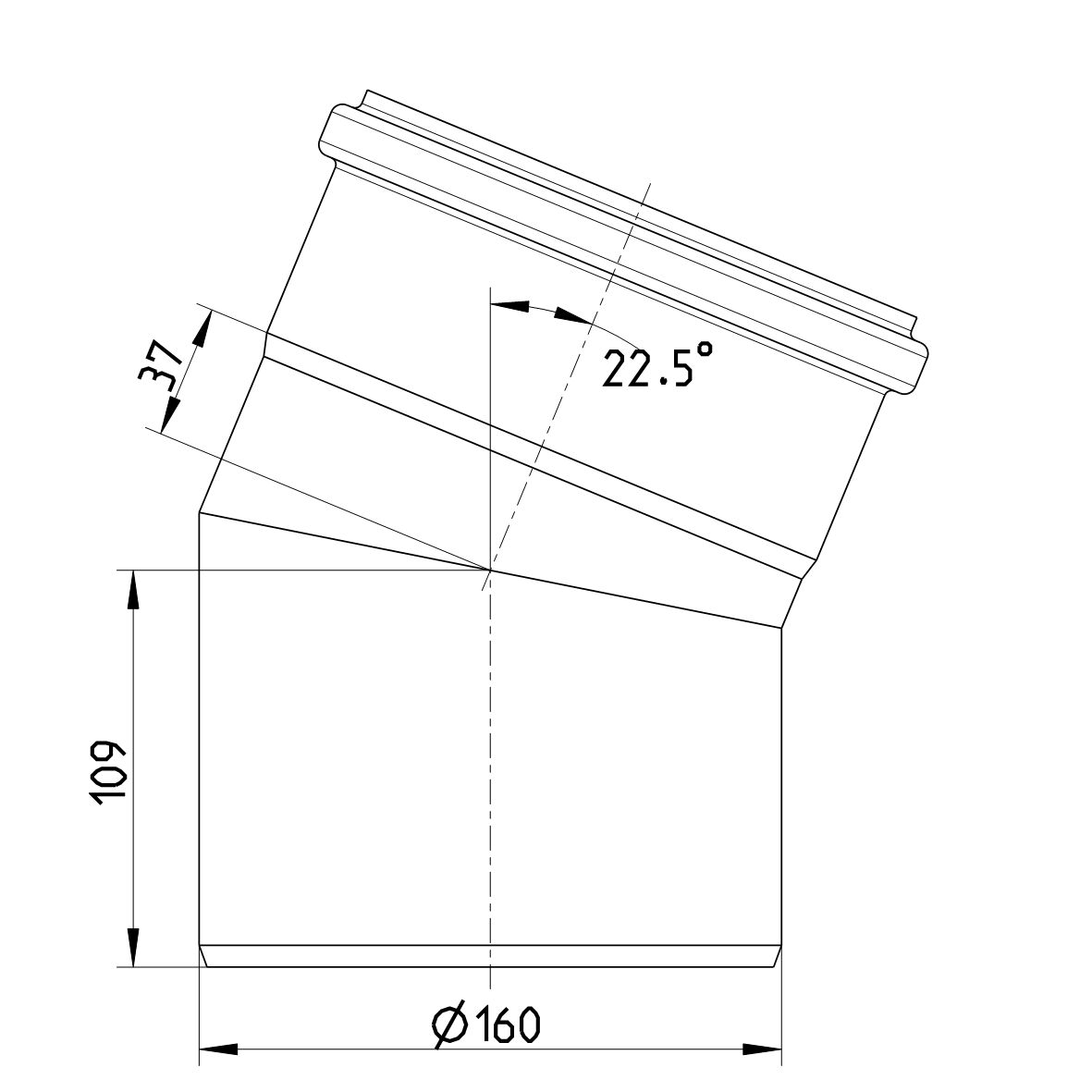

BEND 22.5°
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 22.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,18 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
