BEND 30° - (820.030.040 S)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.040 S
EAN no.: 5705499412888
VVS no.: 160207340
RSK no.: 1552758
NRF no.: 2172519
LVI no.: 0250631

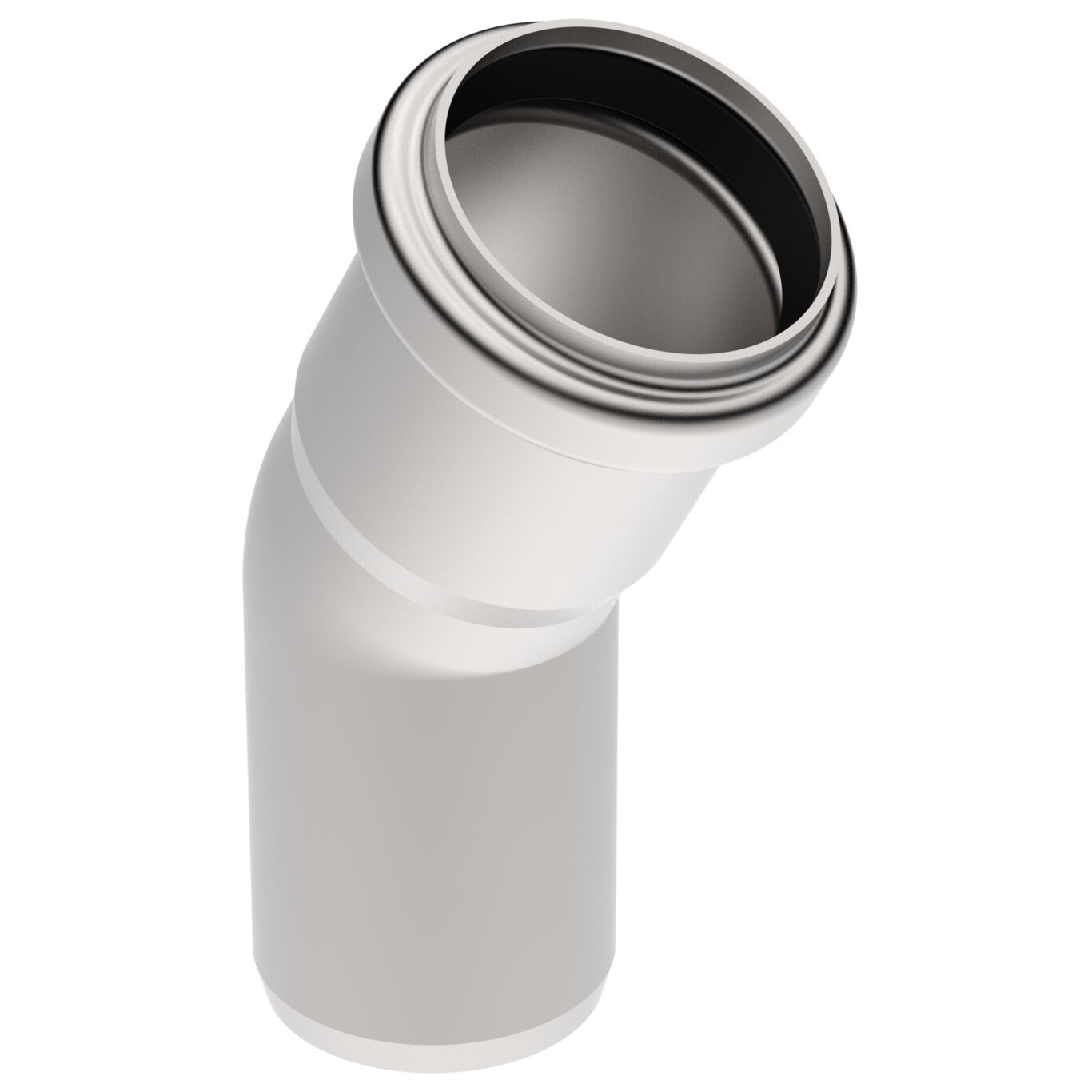

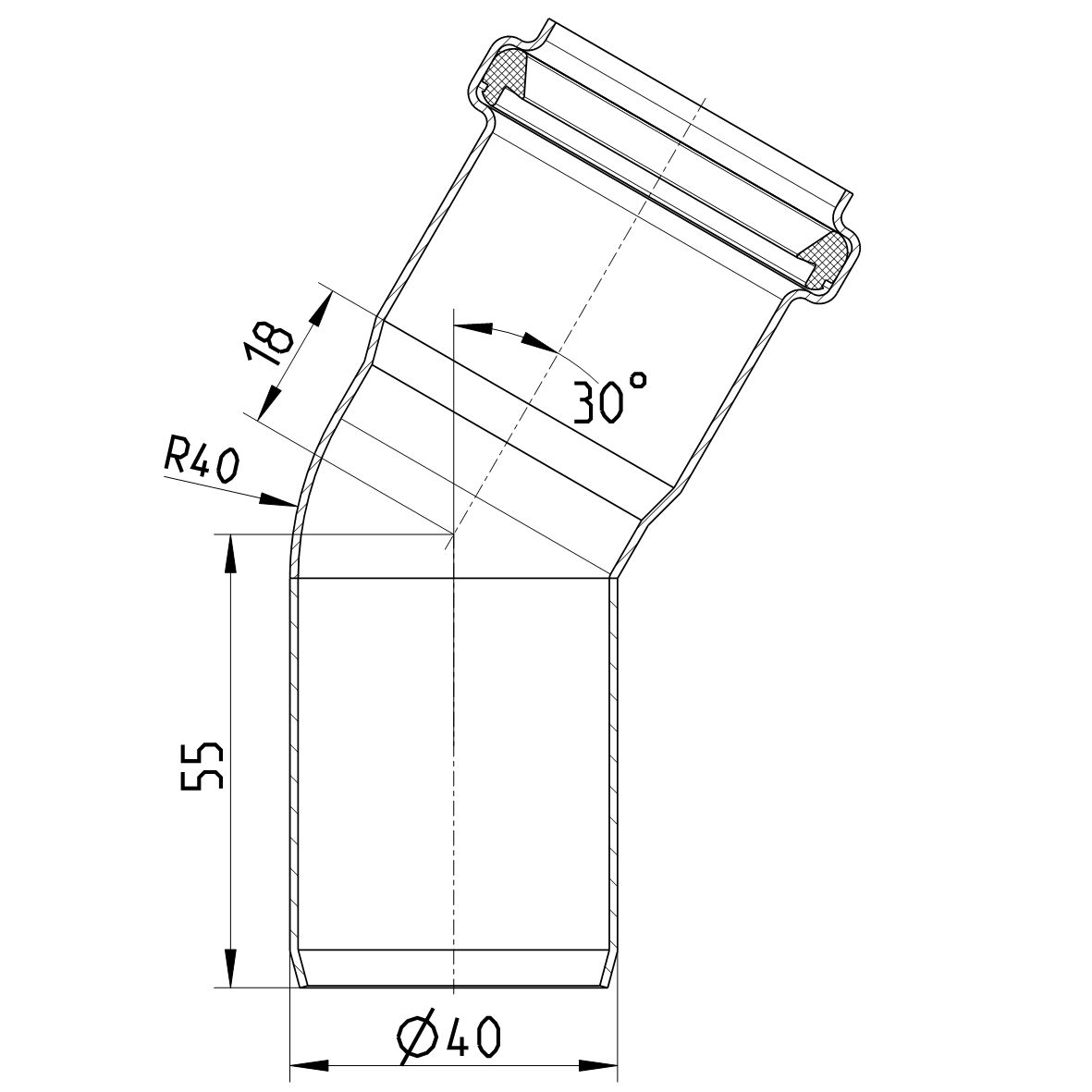

BEND 30°
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,13 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA
