BEND 30° - (820.030.075 S)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.075 S
EAN no.: 5705499401257
VVS no.: 160207375
RSK no.: 1550294
NRF no.: 2170745
LVI no.: 0250633

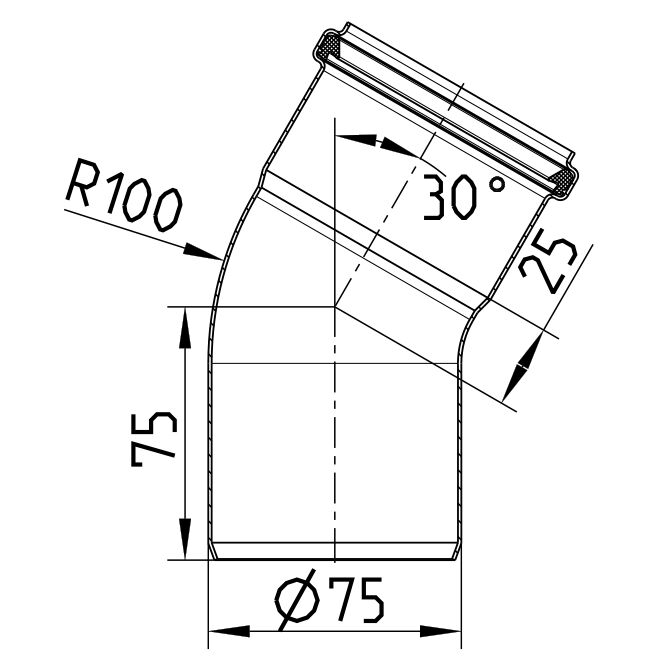

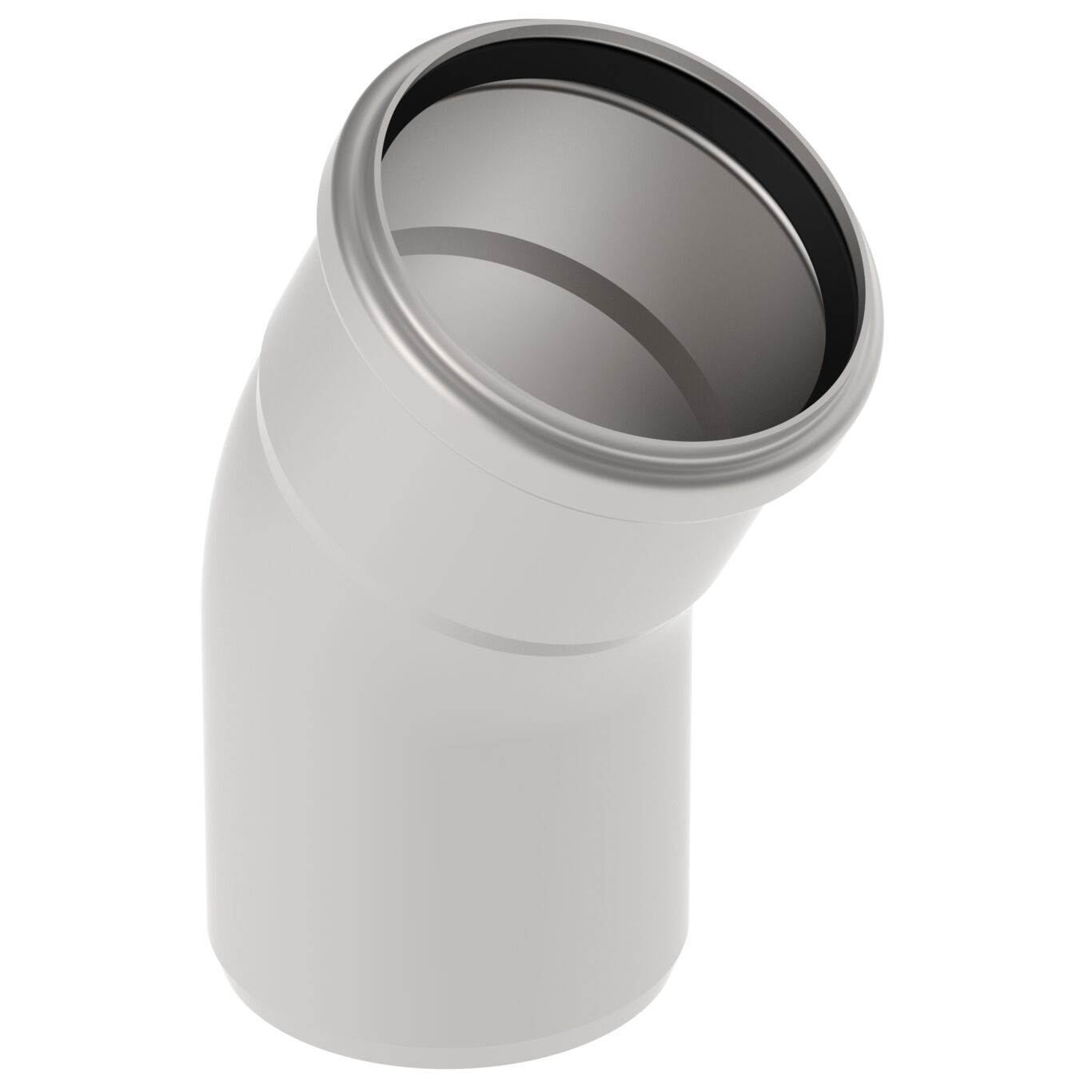

BEND 30°
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA
