BEND 30° - (820.030.125 S)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.125 S
EAN no.: 5705499408669
VVS no.: 160207425
RSK no.: 1551169
NRF no.: 2170773
LVI no.: 0256079

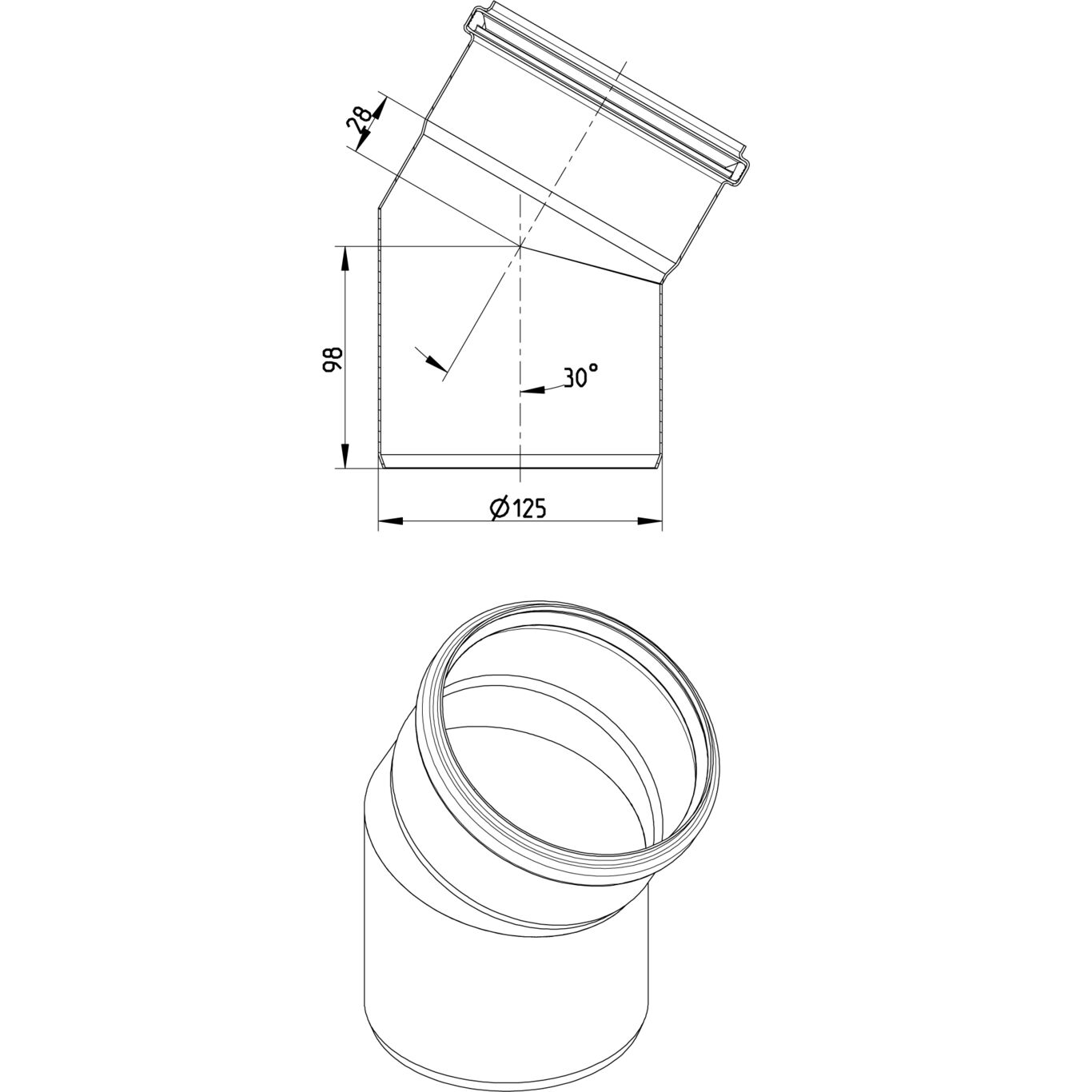

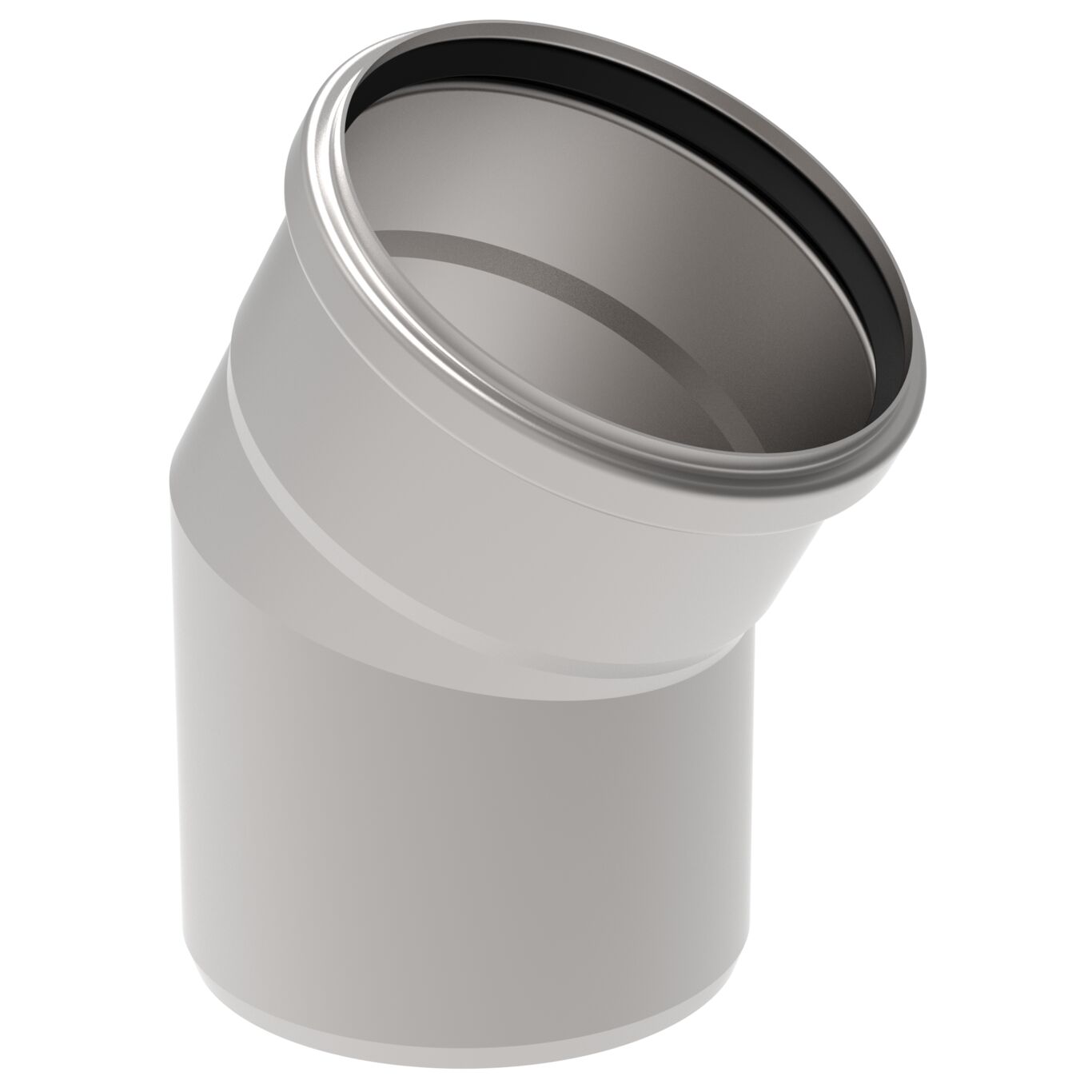

BEND 30°
-Diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 0,63 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
