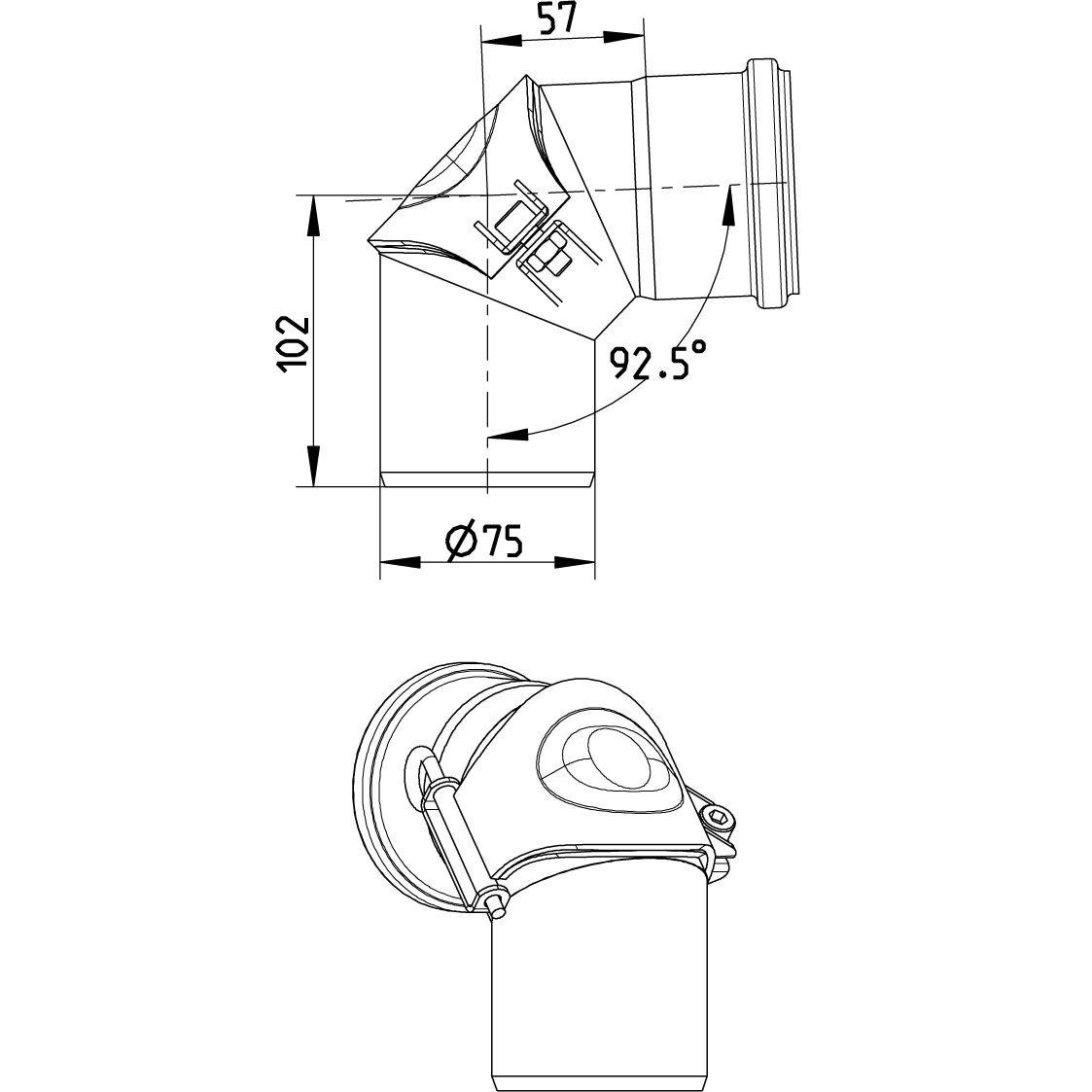

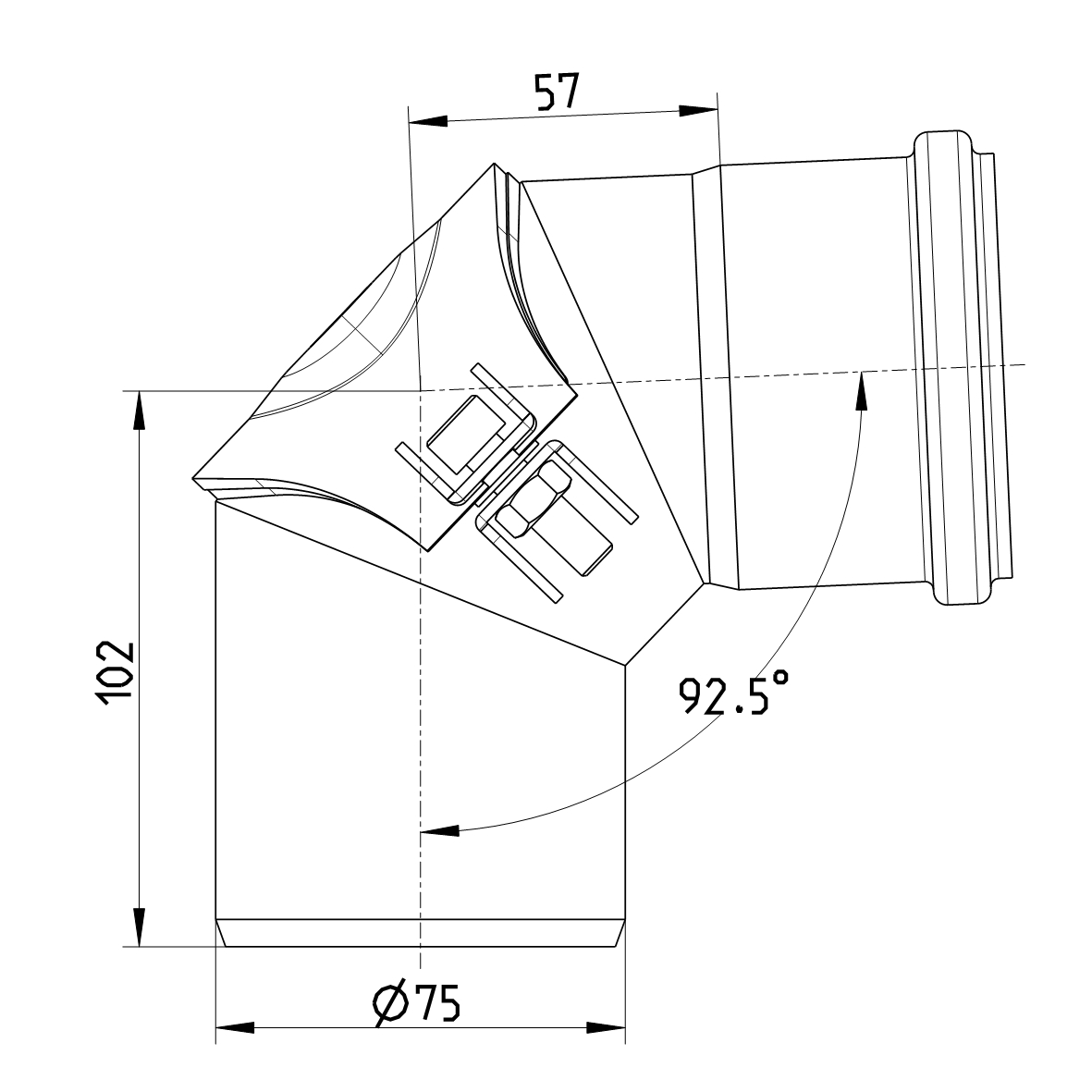

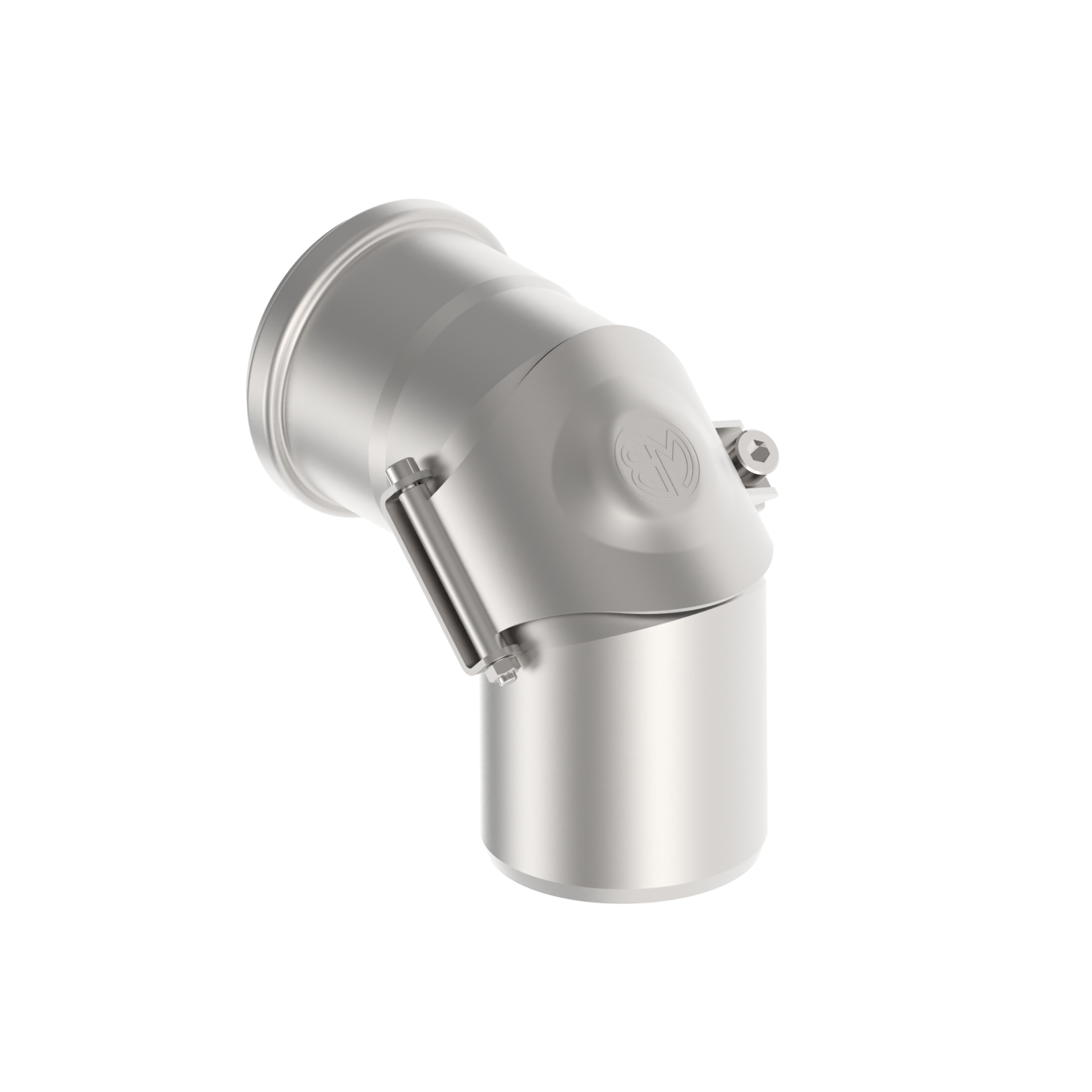

BEND 87.5° WITH ACCESS - (822.090.075)
×
![]()
Part Of the Series: Bend-87.5-access
Type no.: 822.090.075
EAN no.: 5705499401509
NRF no.: 2172322
BEND 87.5° WITH ACCESS
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,61 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance BS-EN1124-1-002
HACCP Food Safety Programme - Australasia
Declaration of Perfomance EN1124-1-001
AUS - WMKT00204 - 24
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02
