BEND 87.5° WITH ACCESS - (822.090.160 S)
×
![]()
Part Of the Series: Bend-87.5-access
Type no.: 822.090.160 S
EAN no.: 5705499401554
RSK no.: 1550283
NRF no.: 2172547

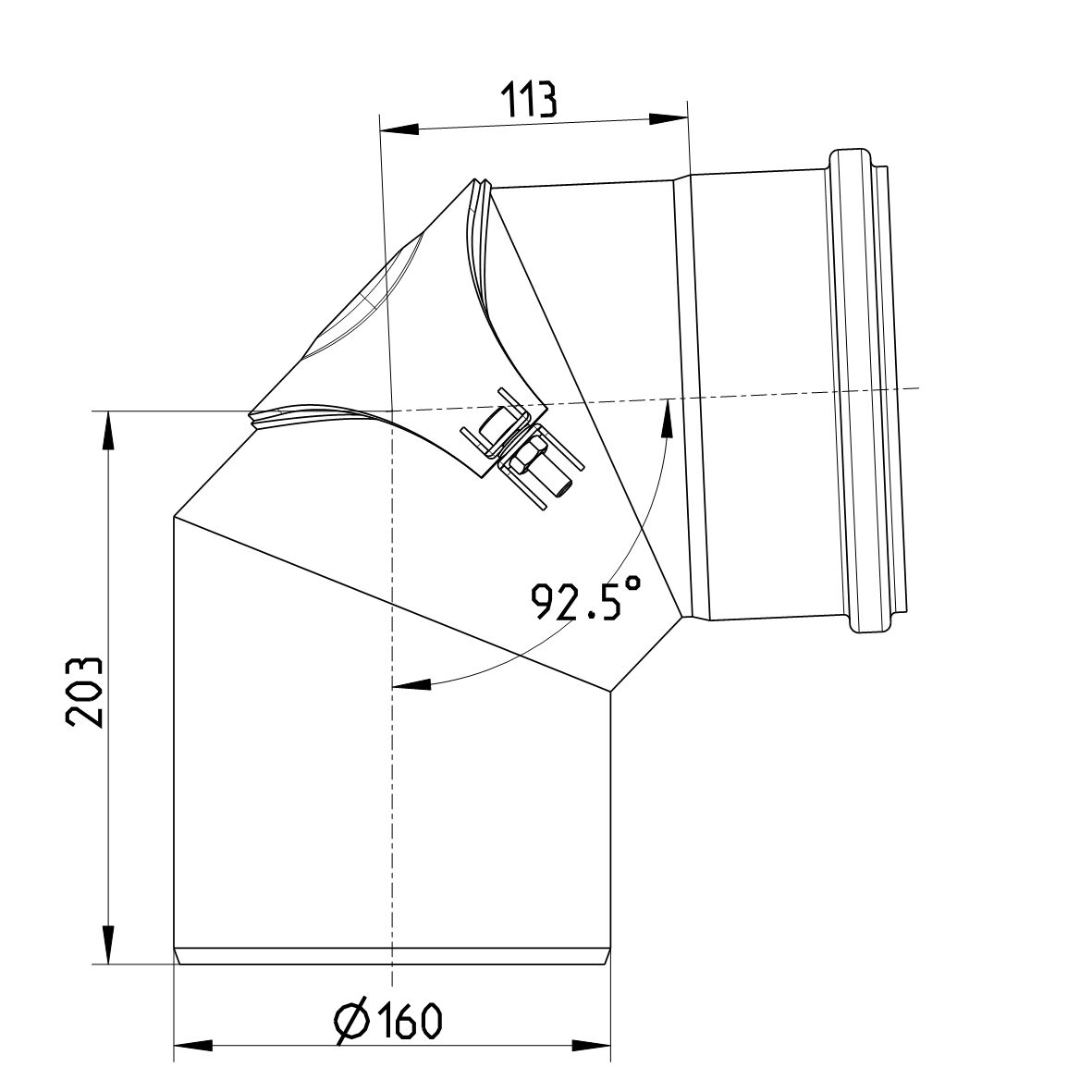

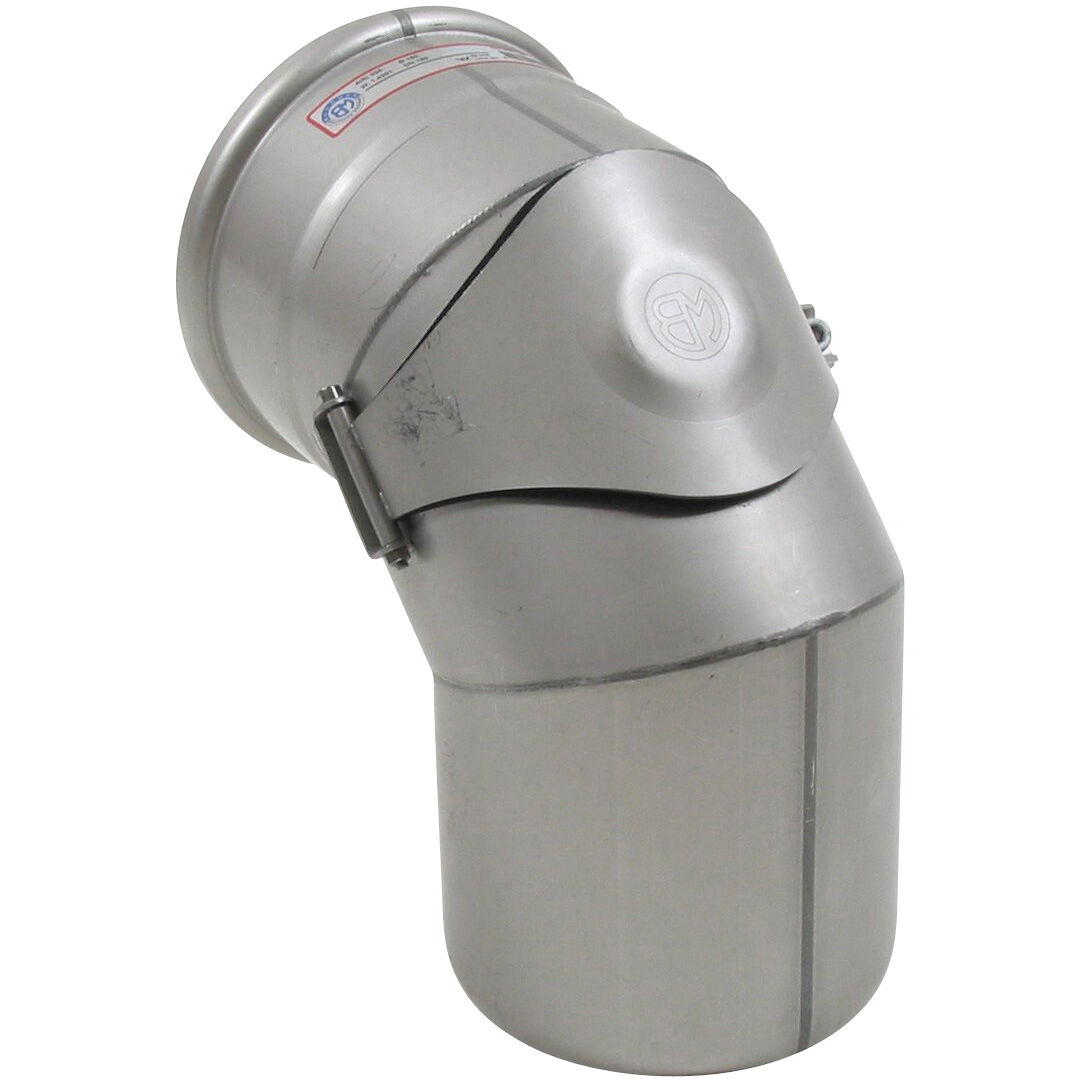

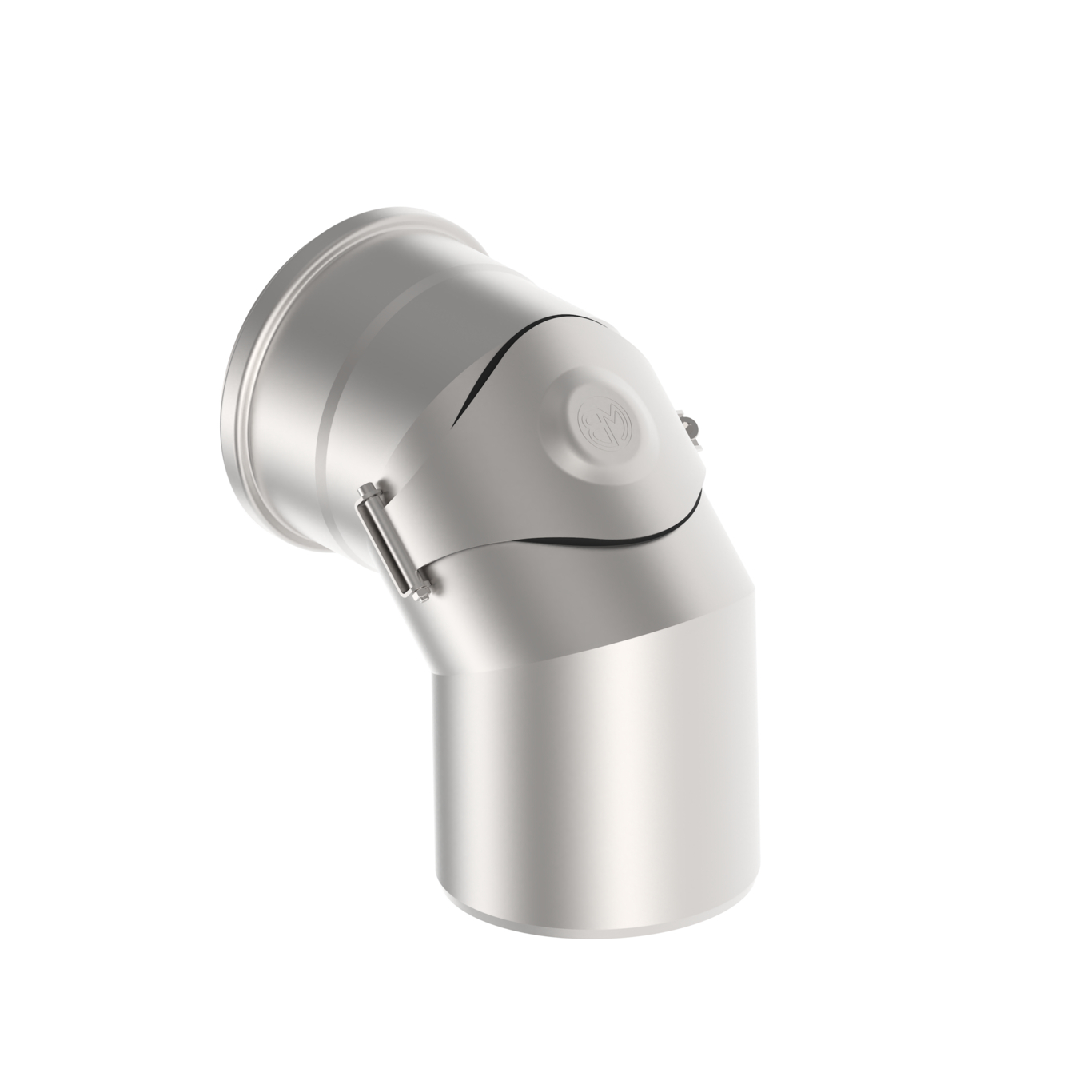

BEND 87.5° WITH ACCESS
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,97 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
Declaration of Perfomance BS-EN1124-1-002
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Europe
Declaration of Perfomance EN1124-1-001
DK - VA 2.12/19349 EuroPipe DS432
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products
