BEND, LONG 87.5°, 250 MM - (821.090.050)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.050
EAN no.: 5705499408751
RSK no.: 1550080
NRF no.: 2172316
LVI no.: 0240852

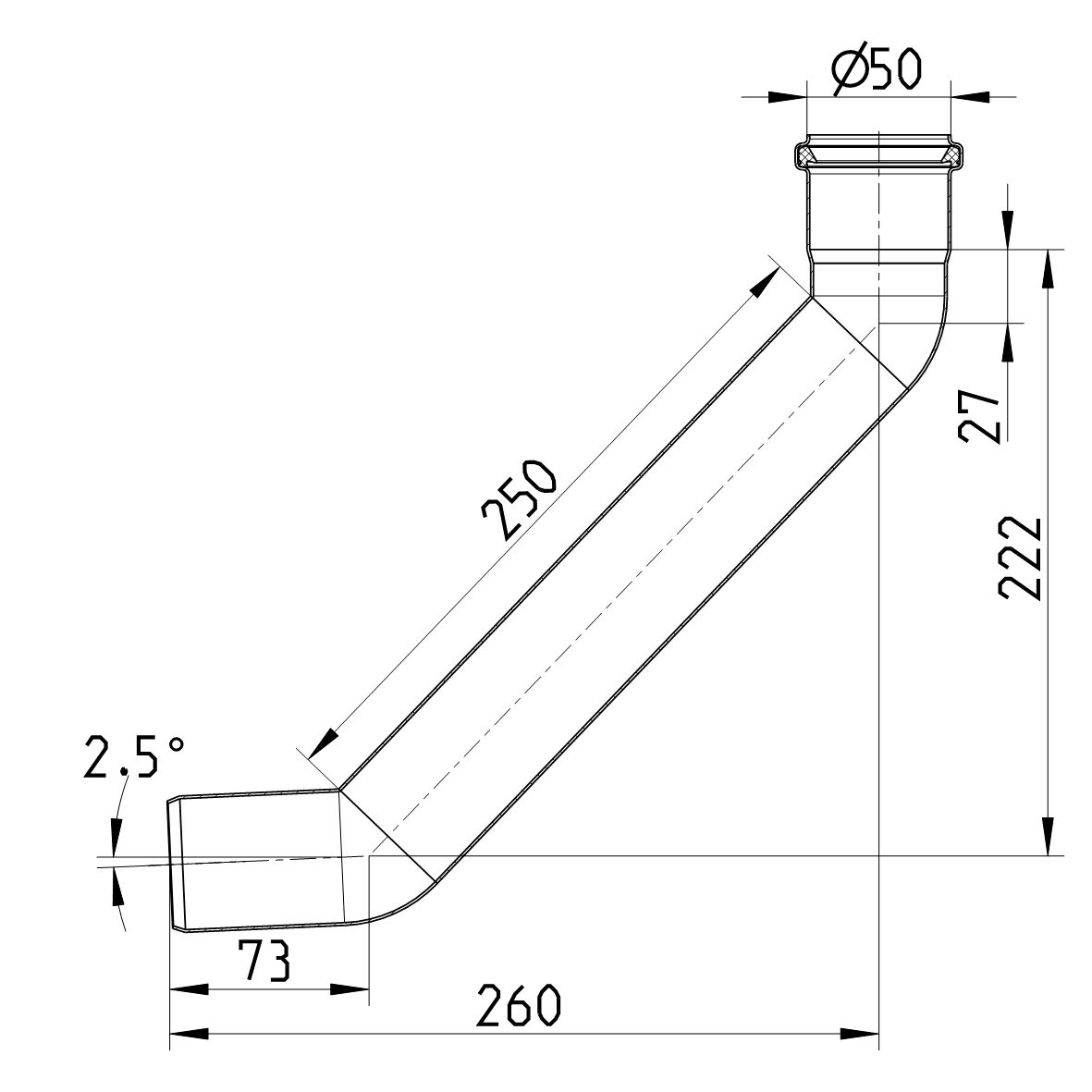

BEND, LONG 87.5°, 250 MM
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 221 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
