BEND, LONG 87.5°, 250 MM - (821.090.160 S)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.160 S
EAN no.: 5705499401493
VVS no.: 160211460
RSK no.: 1550400
NRF no.: 2172543
LVI no.: 0250855

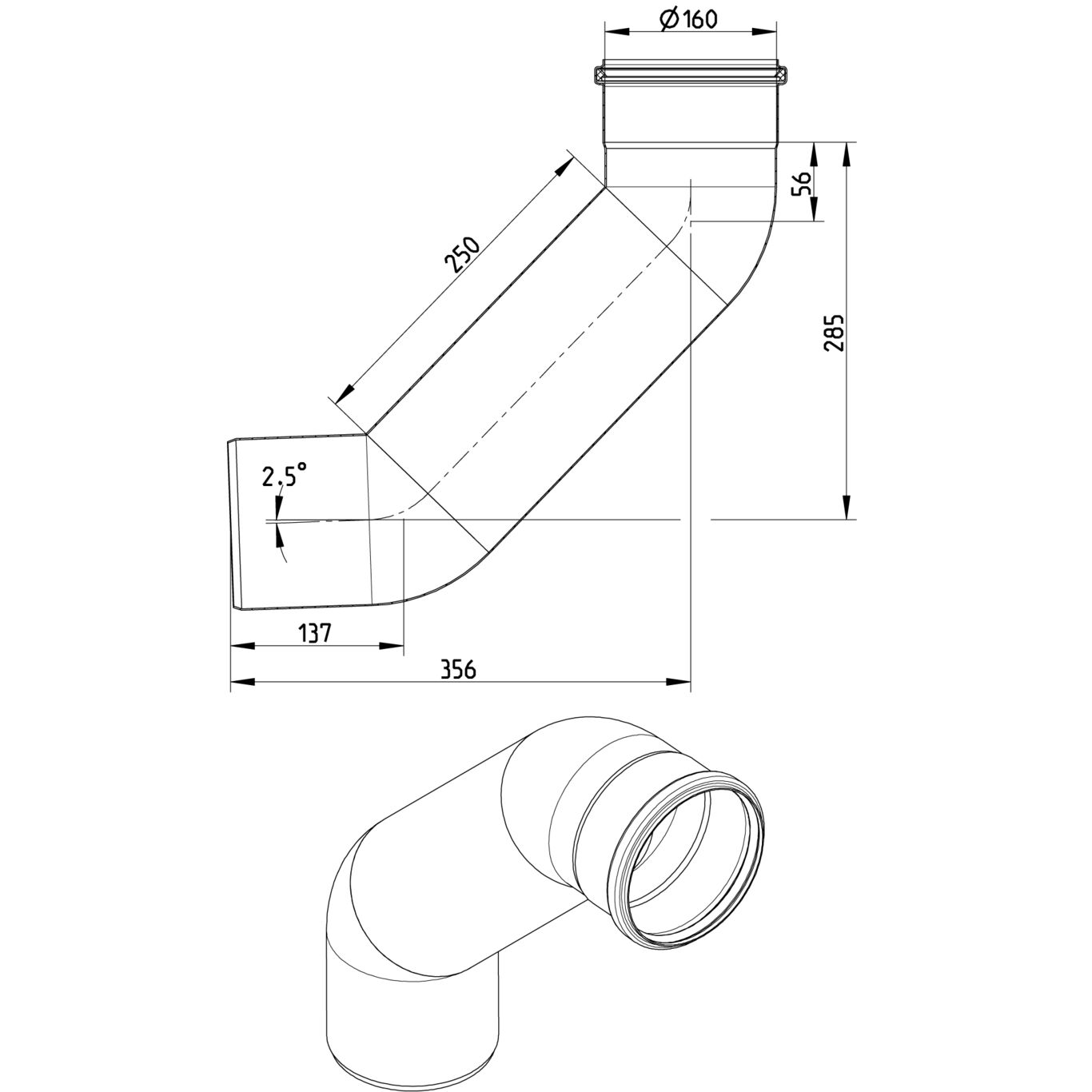

BEND, LONG 87.5°, 250 MM
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 285 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 3,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe AUS - WMKT00204 - 24 HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe DK - VA 2.12/19350 DE - LGA Certificate 57214035 a DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA
