BEND, LONG 87.5°, 50 MM - (821.000.050)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.000.050
EAN no.: 5705499404005
RSK no.: 1551567
NRF no.: 2170062

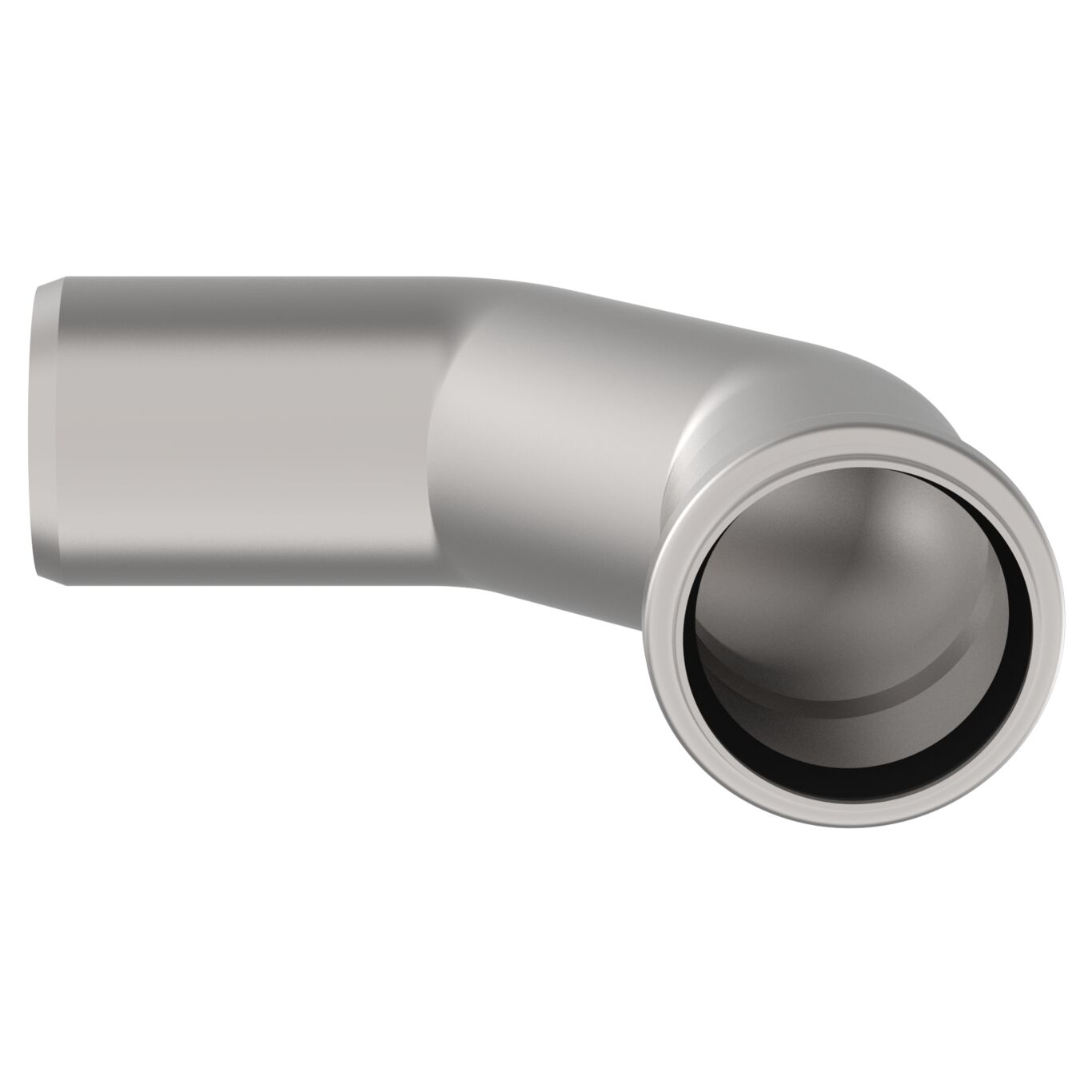

BEND, LONG 87.5°, 50 MM
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301

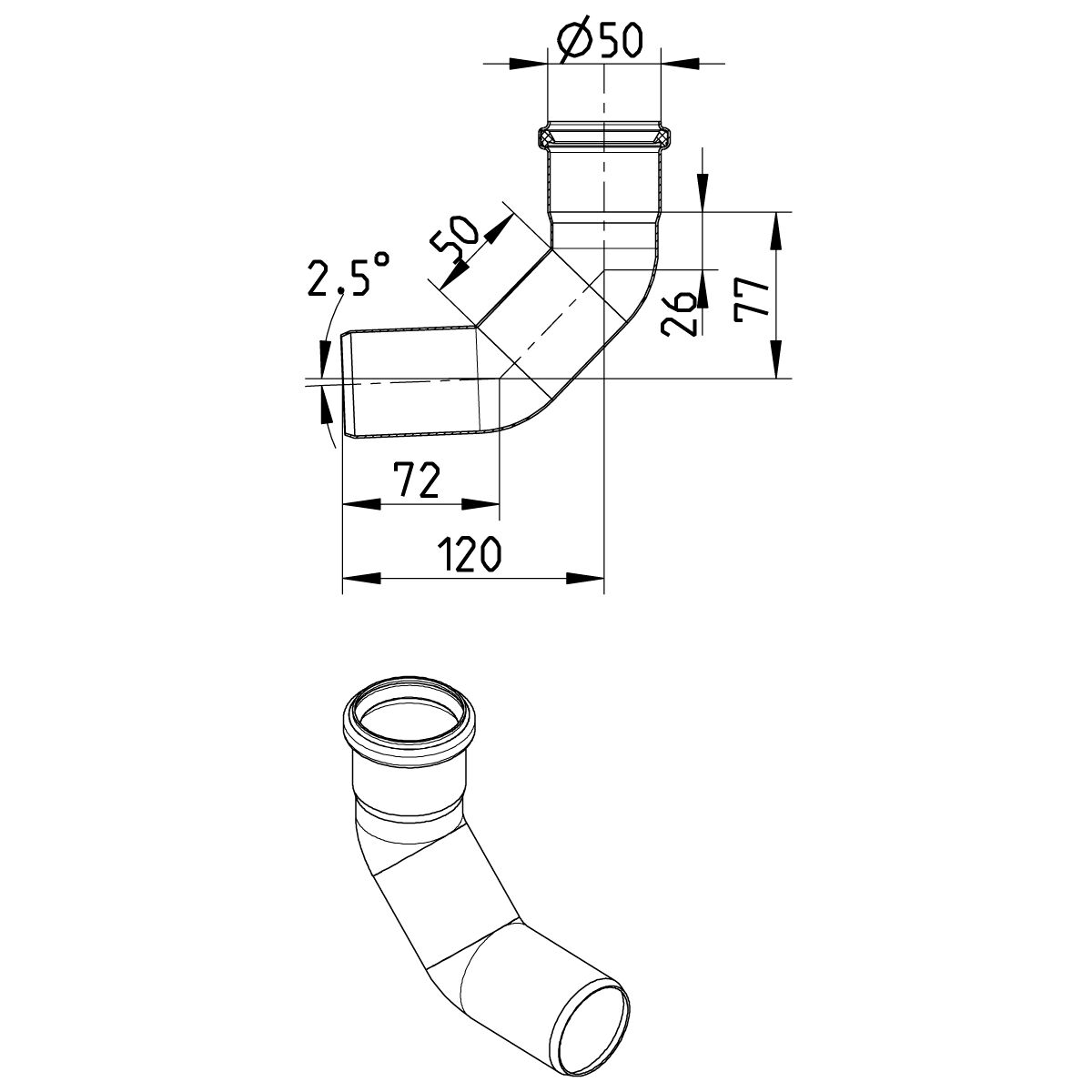

Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 77 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 US - IAPMO File No.3247-EuroPipe ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings
