BEND, LONG 87.5°, 50 MM - (821.000.050 S)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.000.050 S
EAN no.: 5705499404012
RSK no.: 1551559
NRF no.: 2172536

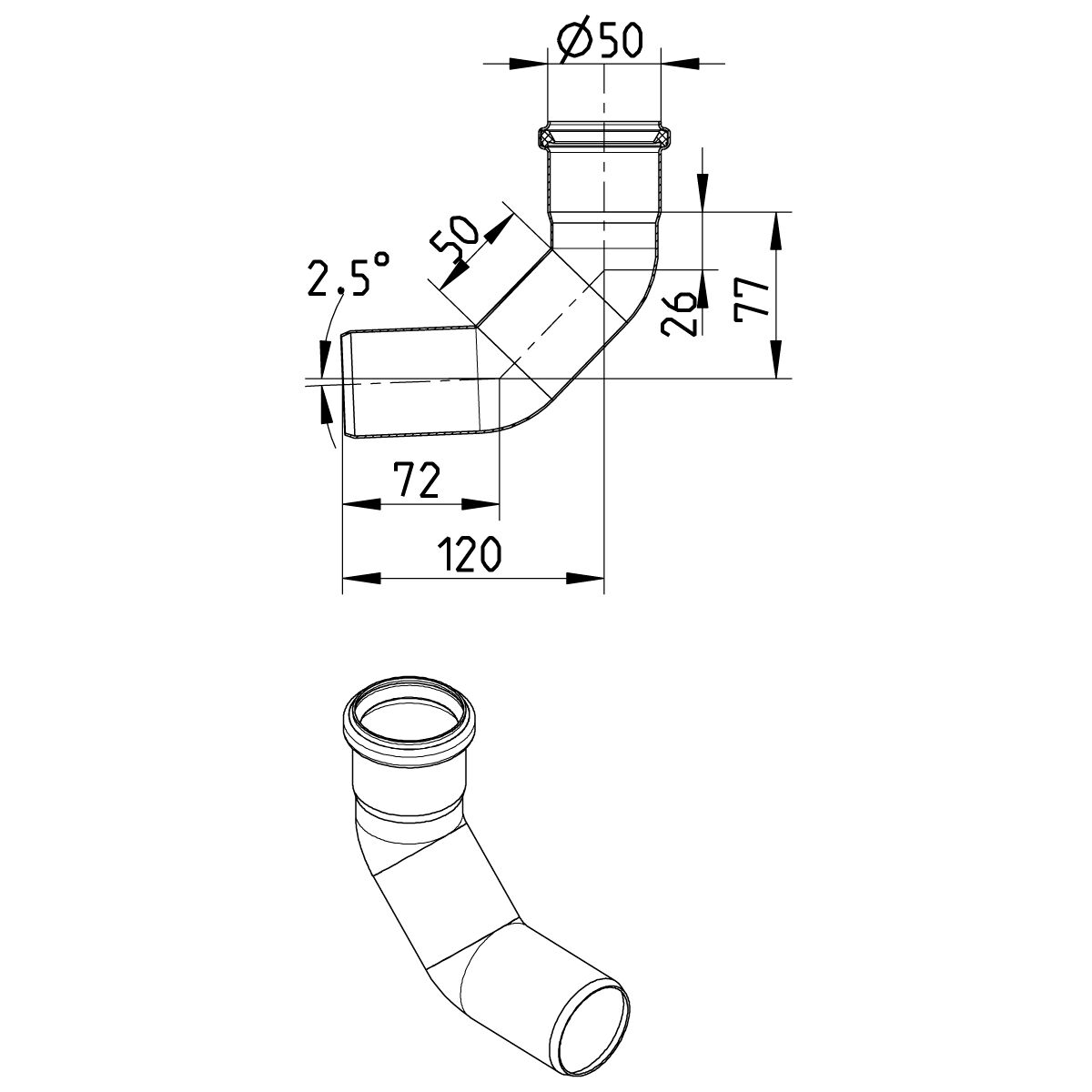

BEND, LONG 87.5°, 50 MM
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 77 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe
