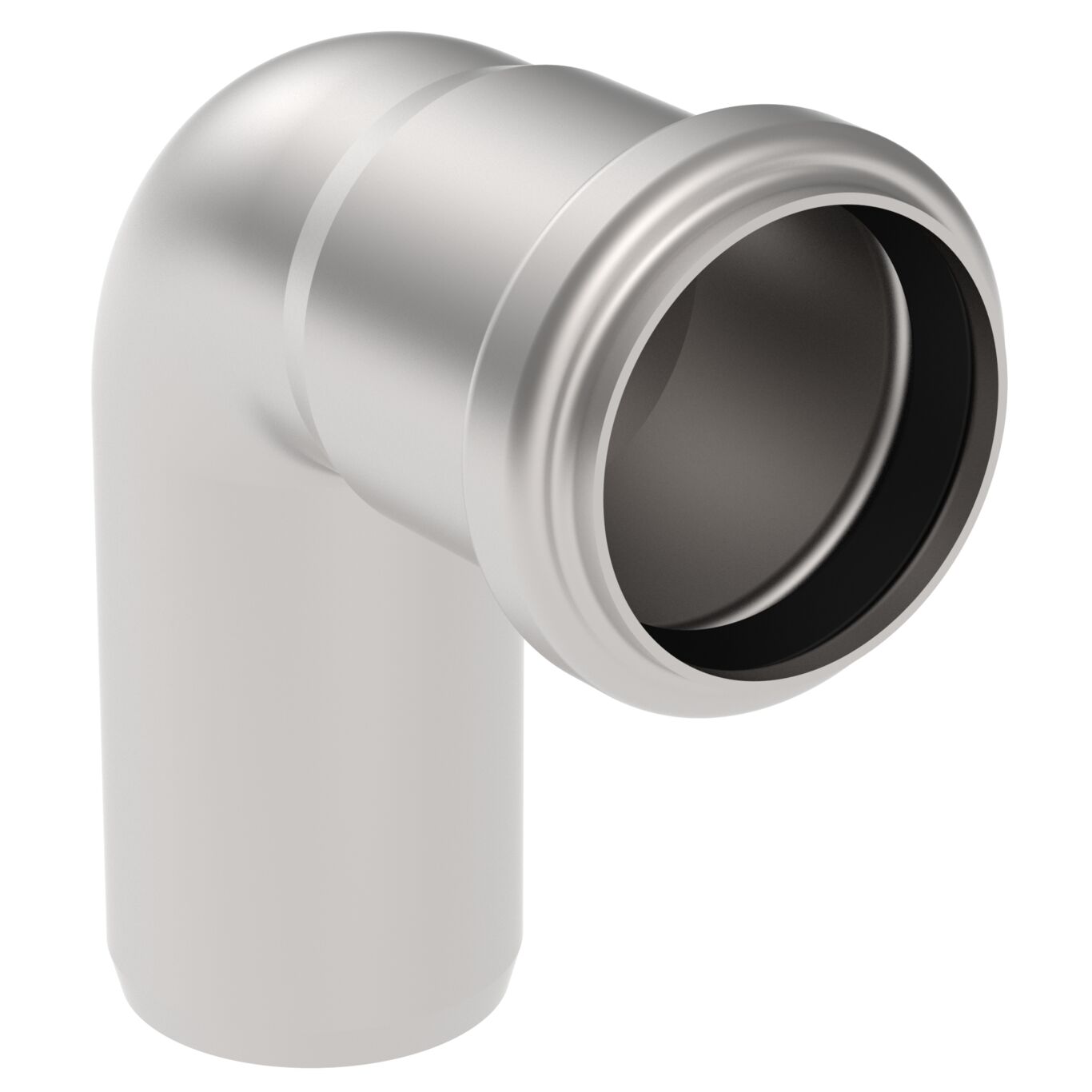

BEND 87.5° - (820.090.040 S)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.040 S
EAN no.: 5705499412925
VVS no.: 160201340
RSK no.: 1552756
NRF no.: 2172528
LVI no.: 0250831

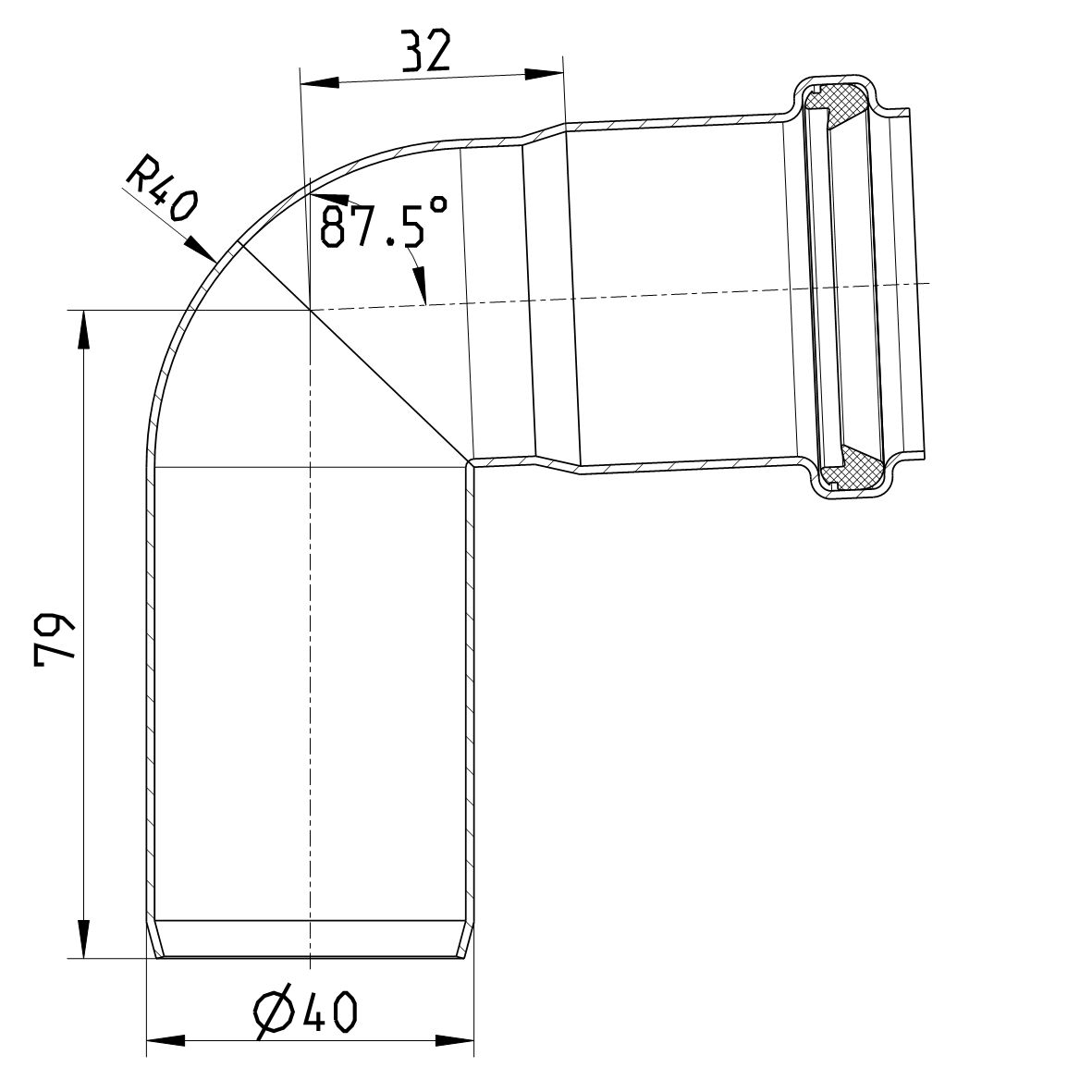

BEND 87.5°
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,16 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings
