BEND 87.5° - (820.090.110 S)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.110 S
EAN no.: 5705499401431
VVS no.: 160201410
RSK no.: 1550287
NRF no.: 2170766
LVI no.: 0250834

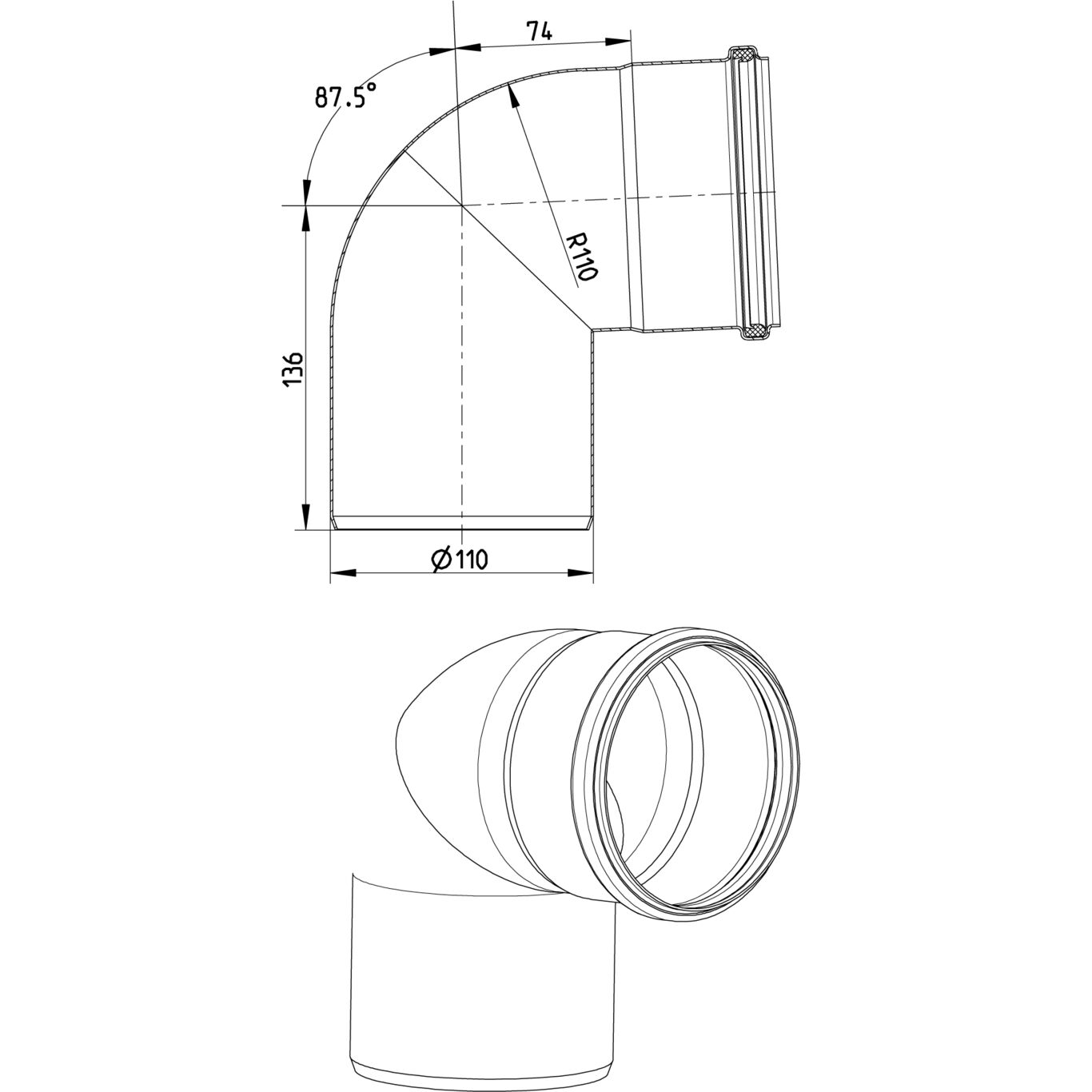

BEND 87.5°
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19350
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA
