BEND 89° - (820.090.160 AS)

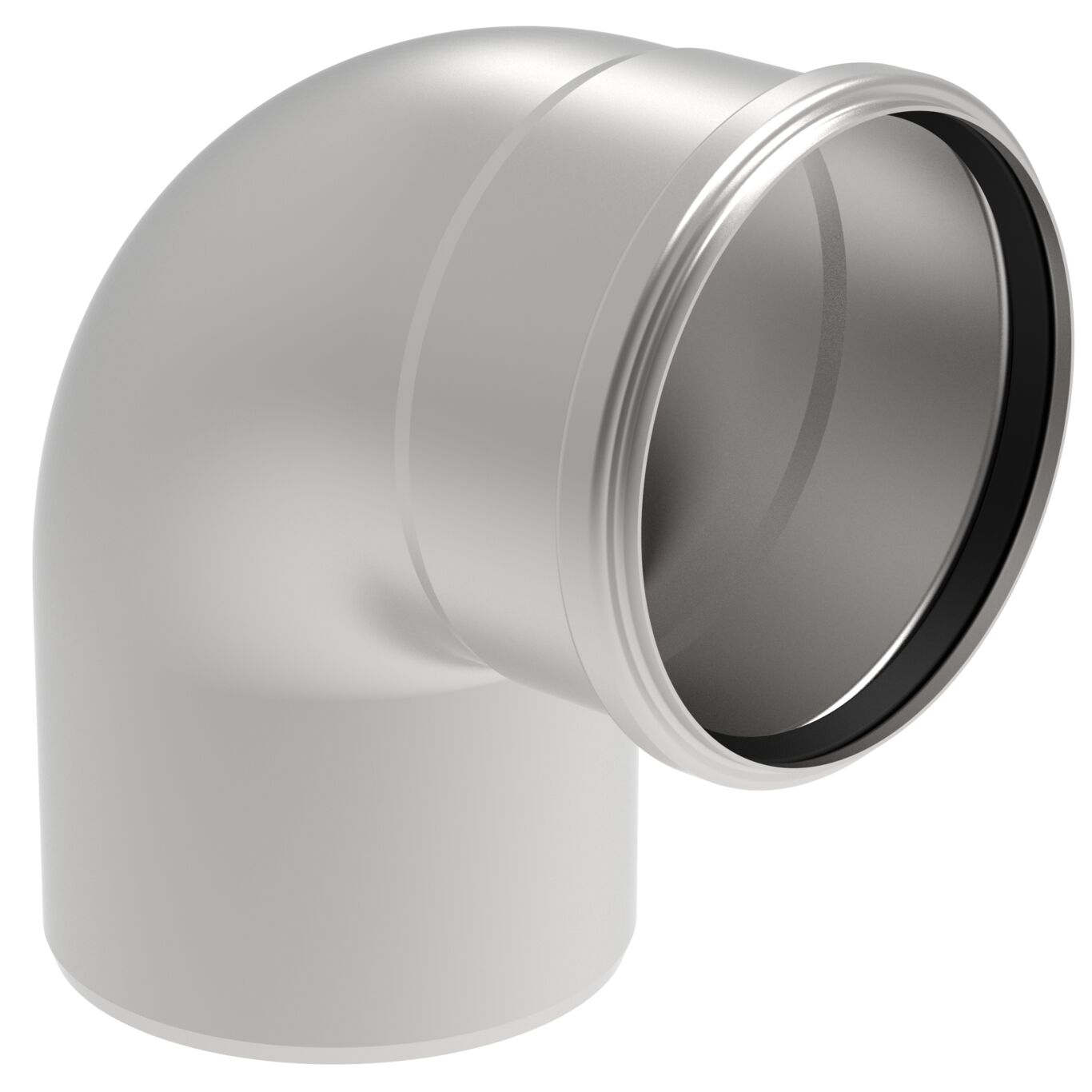

Product Image - Bend-87.5

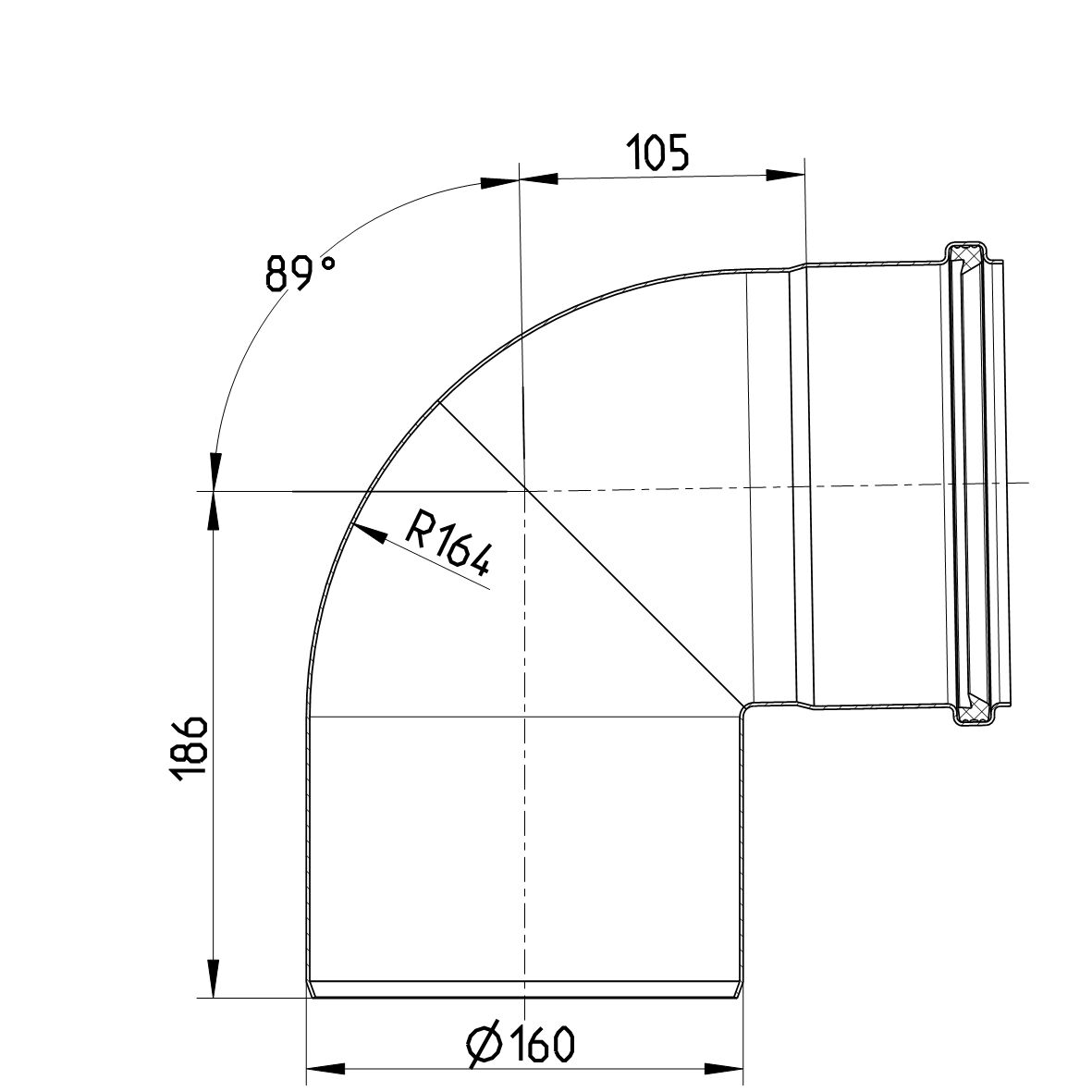

Line Drawing - Bend-89

Part Of the Series: Bend-89

Type no.: 820.090.160 AS

EAN no.: 5705499408744

NRF no.: 2172534

BEND 89°
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	89
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	160
Weight (kg)	2,10

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia NO - 0692-22 EuroPipe DK - VA 2.12/19350 DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe RU - 0212322 Pipes-21 Achilles Certificate - 46702-22 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings

Share this Product

Product Accessories

Clamps

PRESSURE PEAK CLAMP - (847.001.160)

PIPE JOINT CLAMP - (847.160.160)

Oil and Lubricants

JOINTING LUBRICANT 0.5 L - (007.100.050)

Pipe Hangers

PIPE HANGER WITH EPDM - (895.012.160 AGS)

PIPE HANGER WITH EPDM - (895.300.160 GS)

PIPE HANGER WITH EPDM - (895.403.160 S)

PIPE HANGER WITH EPDM - (895.012.160 GS)

PIPE HANGER WITH EPDM - (895.402.160)

PIPE HANGER WITH EPDM - (895.401.160)

PIPE HANGER WITH EPDM - (895.200.160 S)

PIPE HANGER WITH TPE - (860.040.160)

PIPE HANGER WITH EPDM - (895.000.160 GS)

Plugs

SOCKET PLUG - (845.000.160 S)

SOCKET PLUG - (844.000.160 S)

Sealing Rings

EPDM LIP SEALING BLACK, Ø160MM - (801.EPDM.160)

NBR SEAL BLACK/YELLOW - (801.NBR.160)

FPM LIP SEALING GREEN, Ø160MM - (801.FPM.160)

Tools

ASSEMBLY TOOL - (806.000.160)

DIMPLING JAWS - (800.200.001)
