OBLIQUE BRANCH 45° - (838.040.040)
Part Of the Series: Branch-45
Type no.: 838.040.040
EAN no.: 5705499412994
VVS no.: 160224040
RSK no.: 1552788
NRF no.: 2171208
LVI no.: 0241151

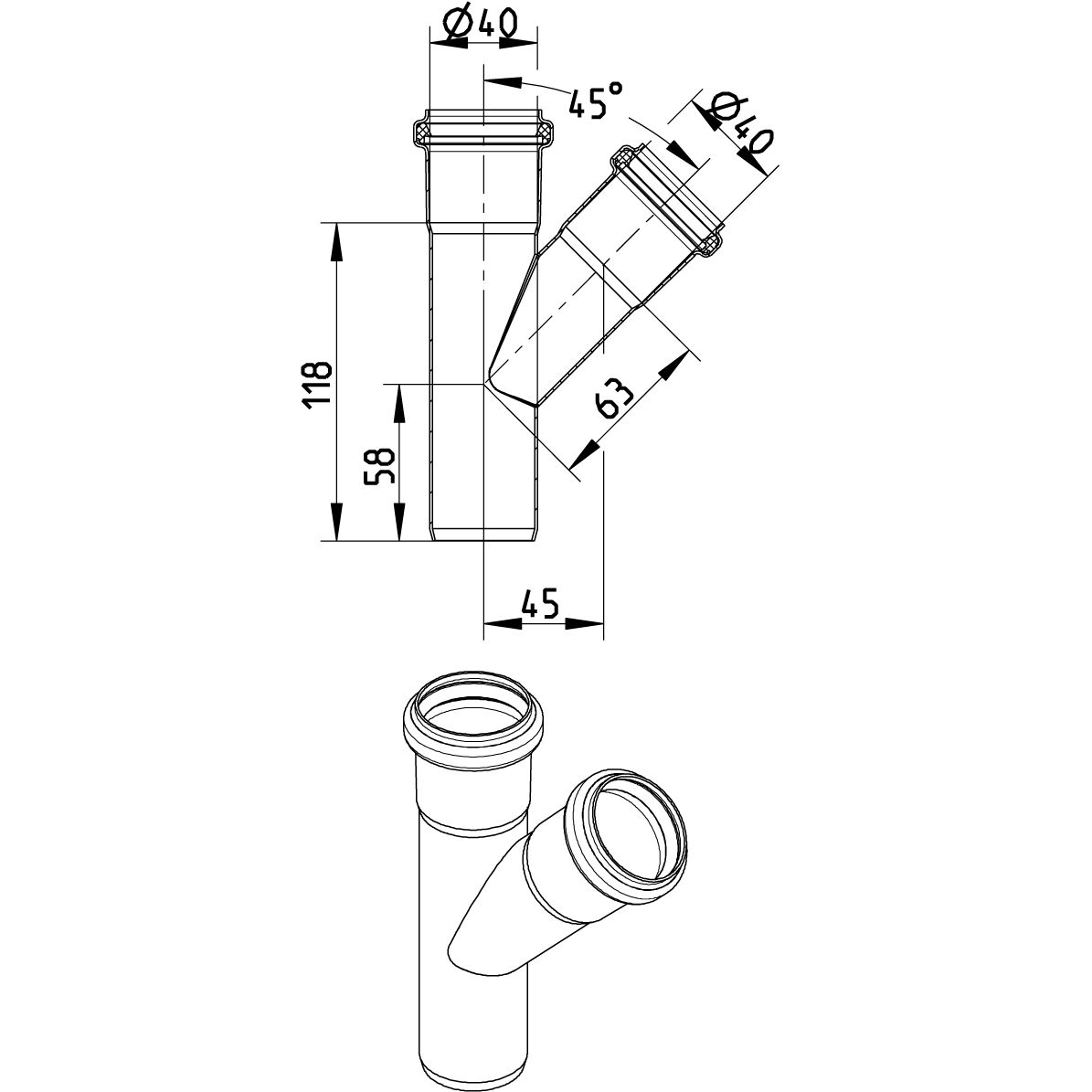

OBLIQUE BRANCH 45°
-Pipe diameter: Ø40mm. Branch diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 118 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes
