OBLIQUE BRANCH 45° - (838.040.040 S)
Part Of the Series: Branch-45
Type no.: 838.040.040 S
EAN no.: 5705499413007
VVS no.: 160224340
RSK no.: 1552762
NRF no.: 2172627
LVI no.: 0251151

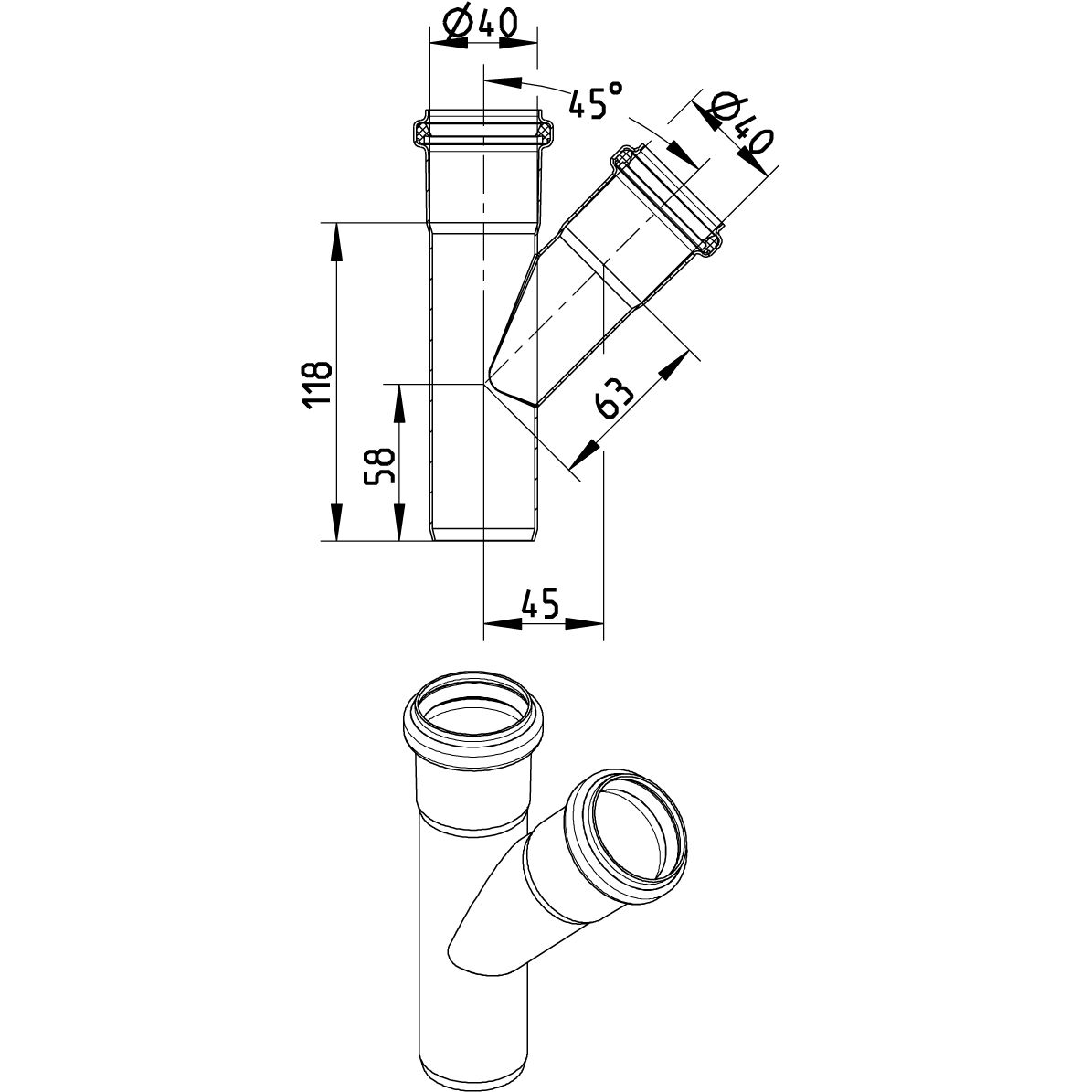

OBLIQUE BRANCH 45°
-Pipe diameter: Ø40mm. Branch diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 118 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA
