OBLIQUE BRANCH 45° - (838.050.075 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.075 S
EAN no.: 5705499402384
VVS no.: 160224373
RSK no.: 1550311
NRF no.: 2170786
LVI no.: 0251155

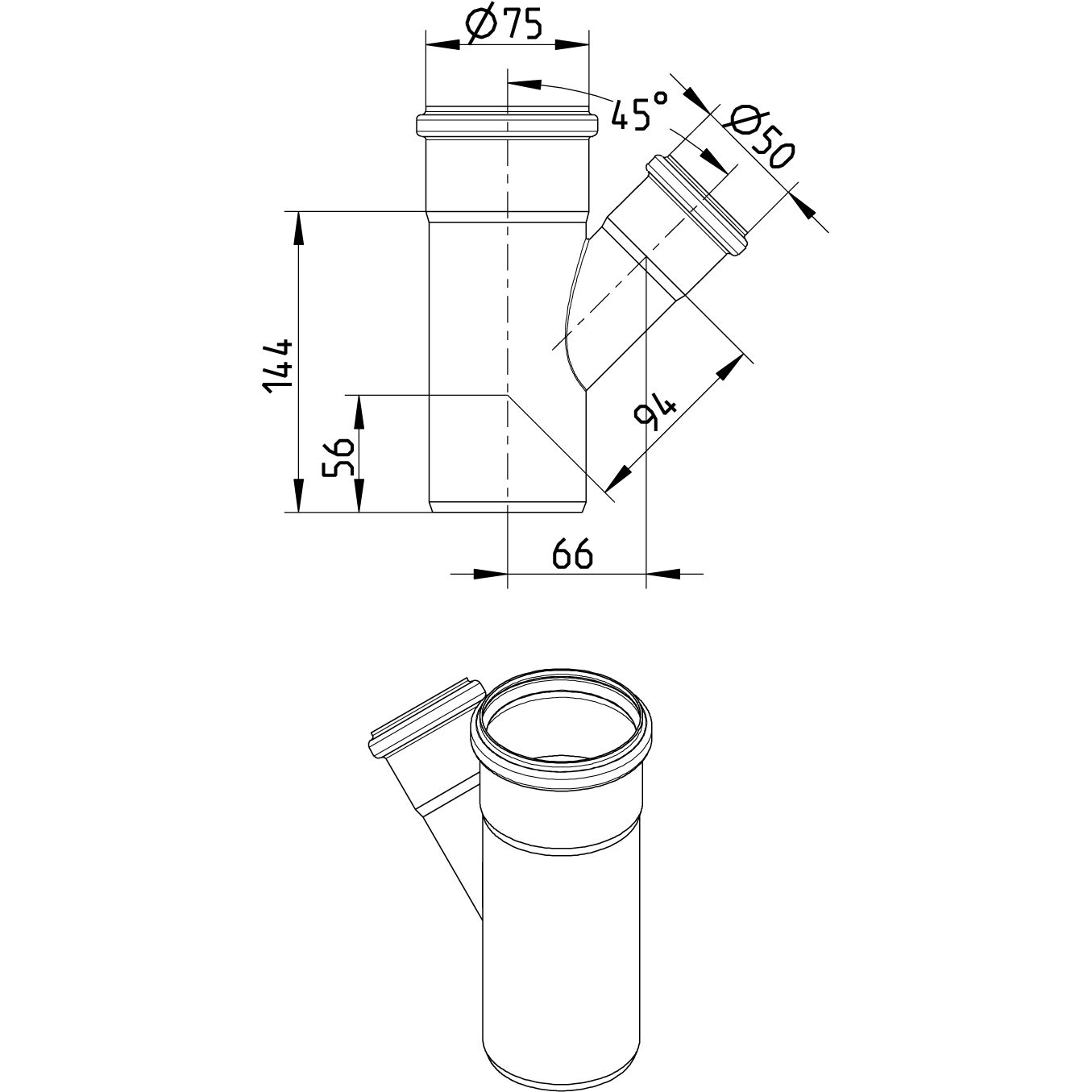

OBLIQUE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 144 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,48 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - TÜV Rheinland R 60178453 0001
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA
