OBLIQUE BRANCH 45° - (838.050.082)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.082
EAN no.: 5705499411980
VVS no.: 160224080
NRF no.: 2172356
OBLIQUE BRANCH 45°

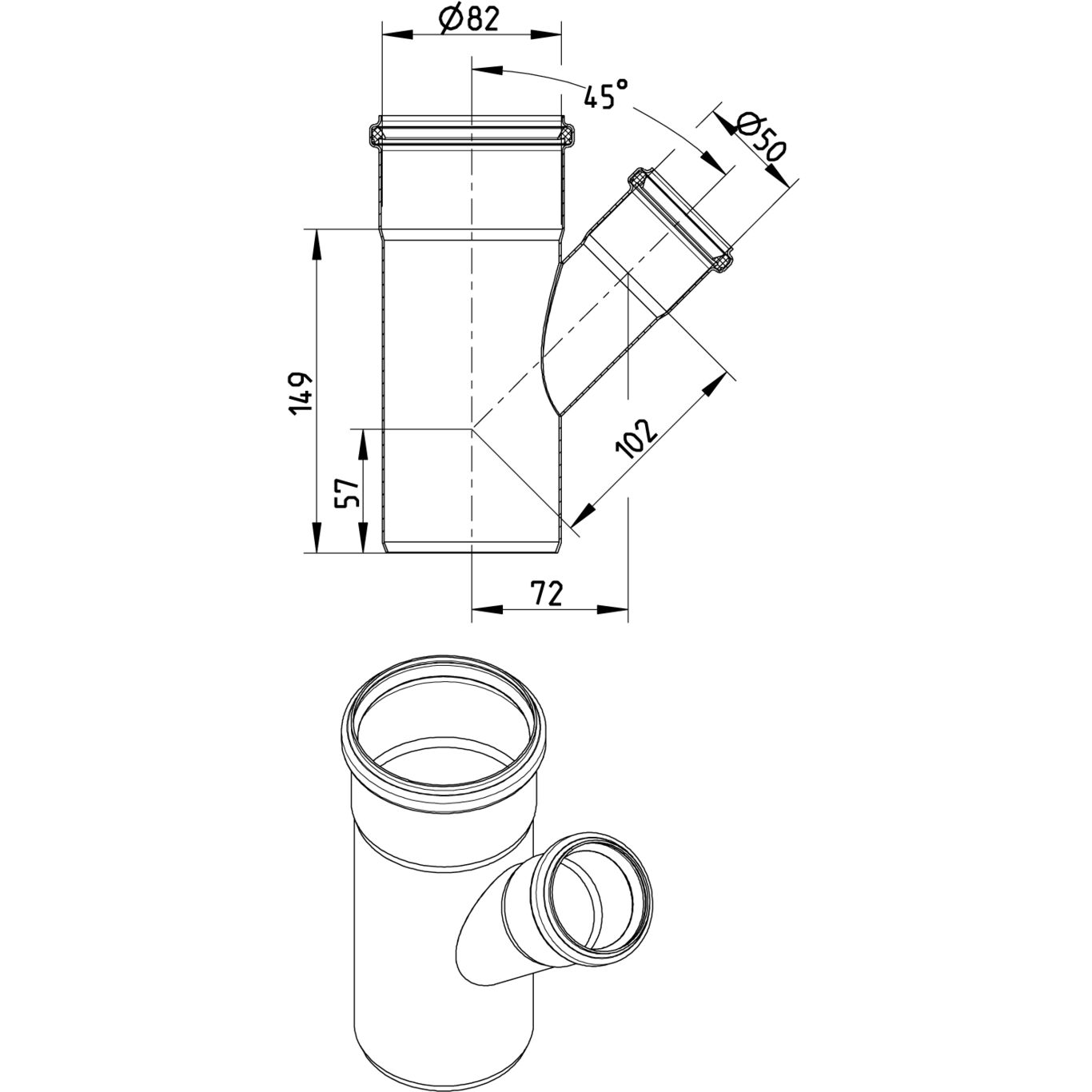

-Pipe diameter: Ø82mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 45 |
| Length (mm) | 149 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
TÜRK LOYDU - 25041616077231247
DE - LGA Certificate 57214035 a RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products
