OBLIQUE BRANCH 45° - (838.075.110 S)
Part Of the Series: Branch-45
Type no.: 838.075.110 S
EAN no.: 5705499402445
VVS no.: 160224408
RSK no.: 1550314
NRF no.: 2170796
LVI no.: 0251159
OBLIQUE BRANCH 45°

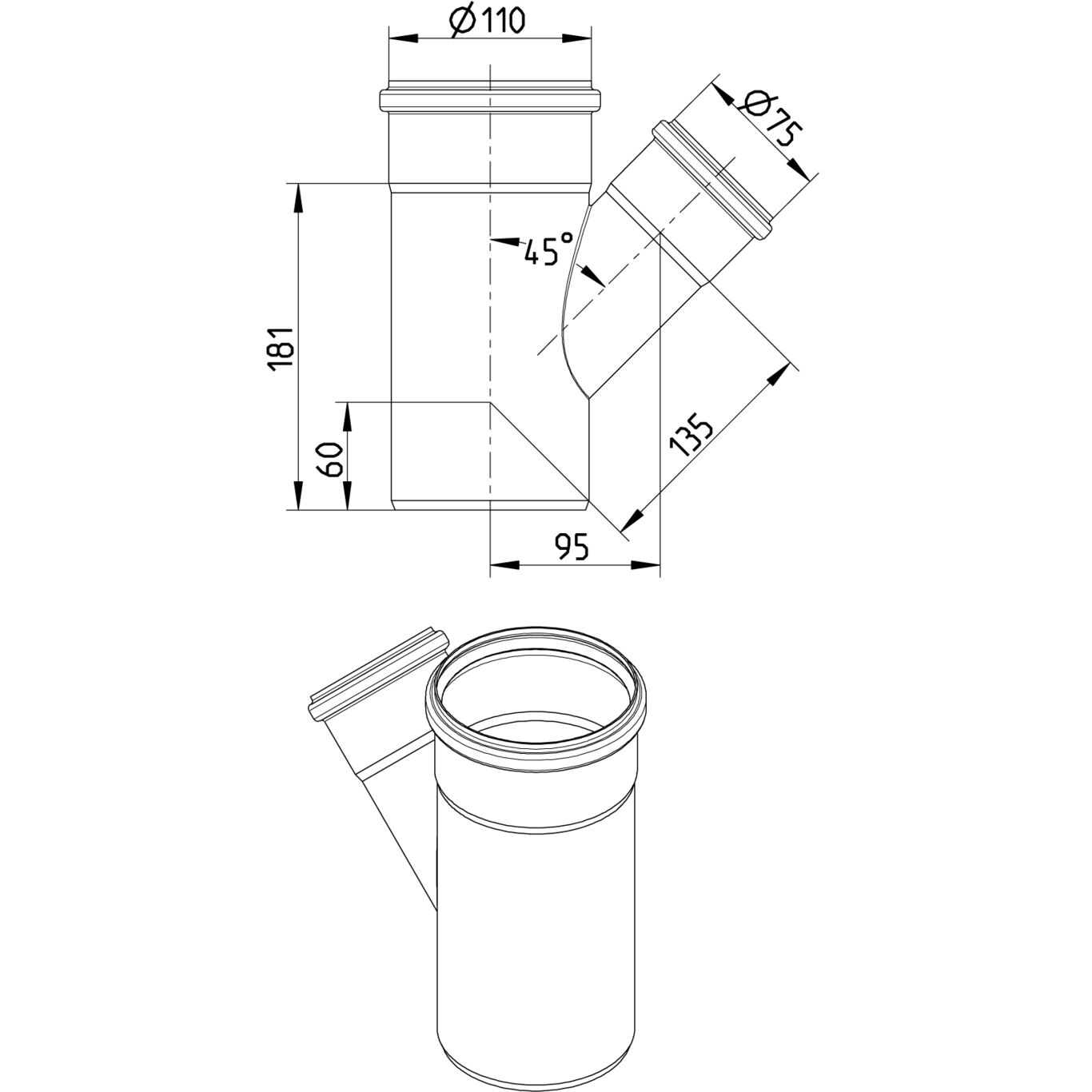

-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 181 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 0,88 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe DE - LGA Certificate 57214035 a FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia AUS - WMKT00204 - 24 NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA DNV - TAP0000023-rev4, Sanitary discharge pipes
