OBLIQUE BRANCH 45° - (838.075.125 S)
Part Of the Series: Branch-45
Type no.: 838.075.125 S
EAN no.: 5705499409321
VVS no.: 160224422
RSK no.: 1551177
NRF no.: 2170833
LVI no.: 0256031

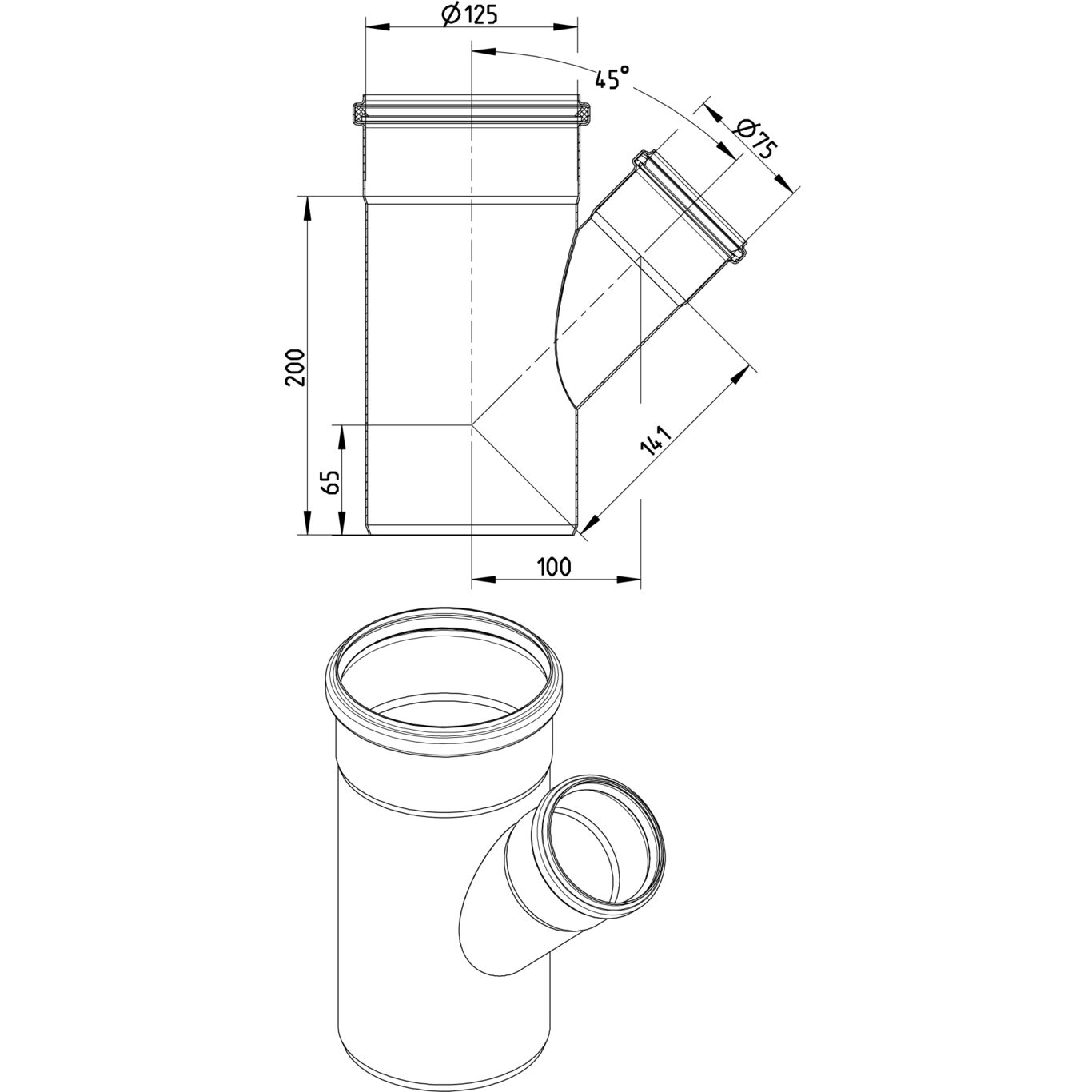

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 200 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 1,32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia FR - DTA 14.1/12-1811_V3 EuroPipe ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev4, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains
