OBLIQUE BRANCH 45° - (838.110.125 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.110.125 S
EAN no.: 5705499409345
VVS no.: 160224424
RSK no.: 1551178
NRF no.: 2170834
LVI no.: 0256032

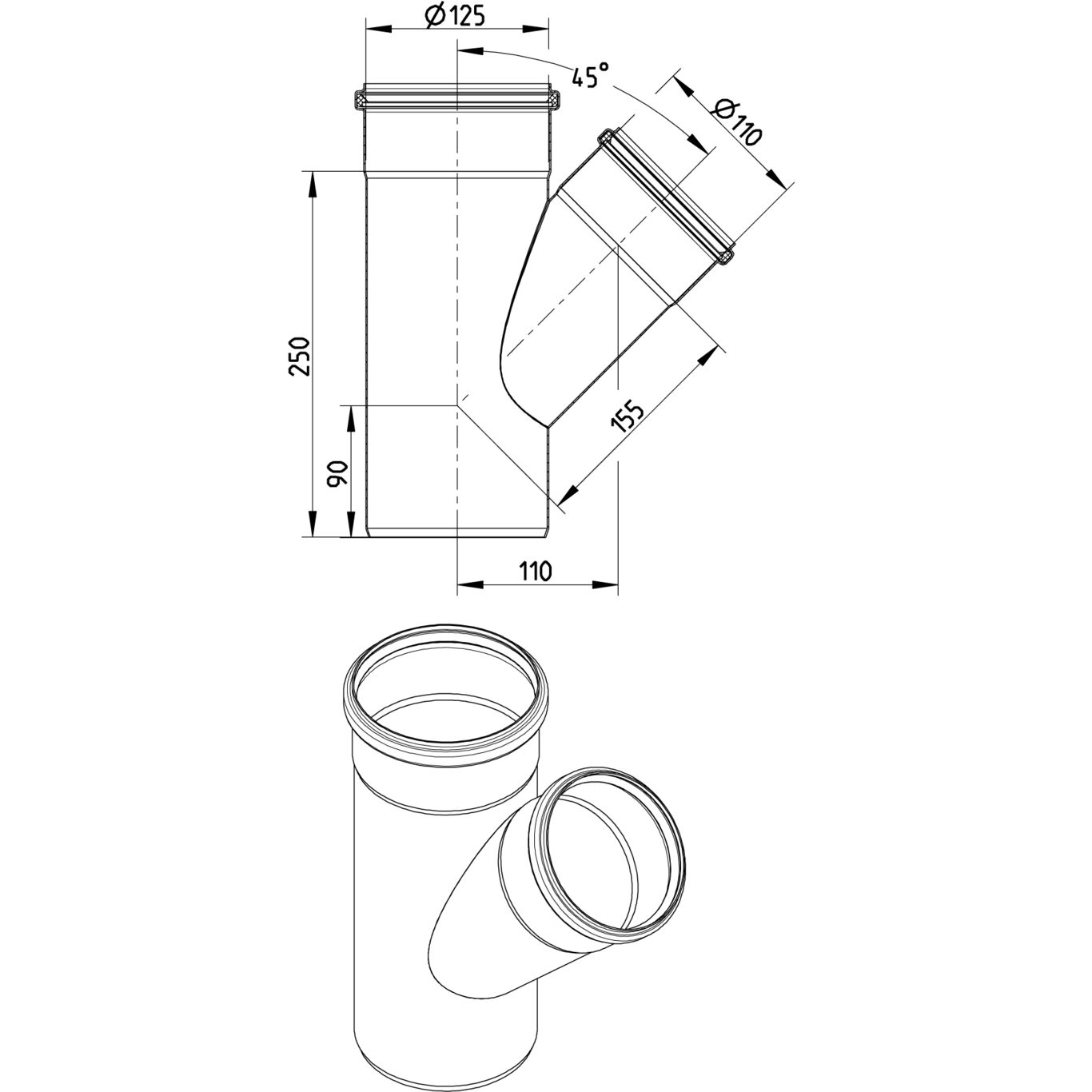

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance BS-EN1124-1-002
Declaration of Perfomance EN1124-1-001
DE - TÜV Rheinland R 60178453 0001
