OBLIQUE BRANCH 45° - (838.125.125 S)
Part Of the Series: Branch-45
Type no.: 838.125.125 S
EAN no.: 5705499409369
VVS no.: 160224425
RSK no.: 1551179
NRF no.: 2170835
LVI no.: 0256033

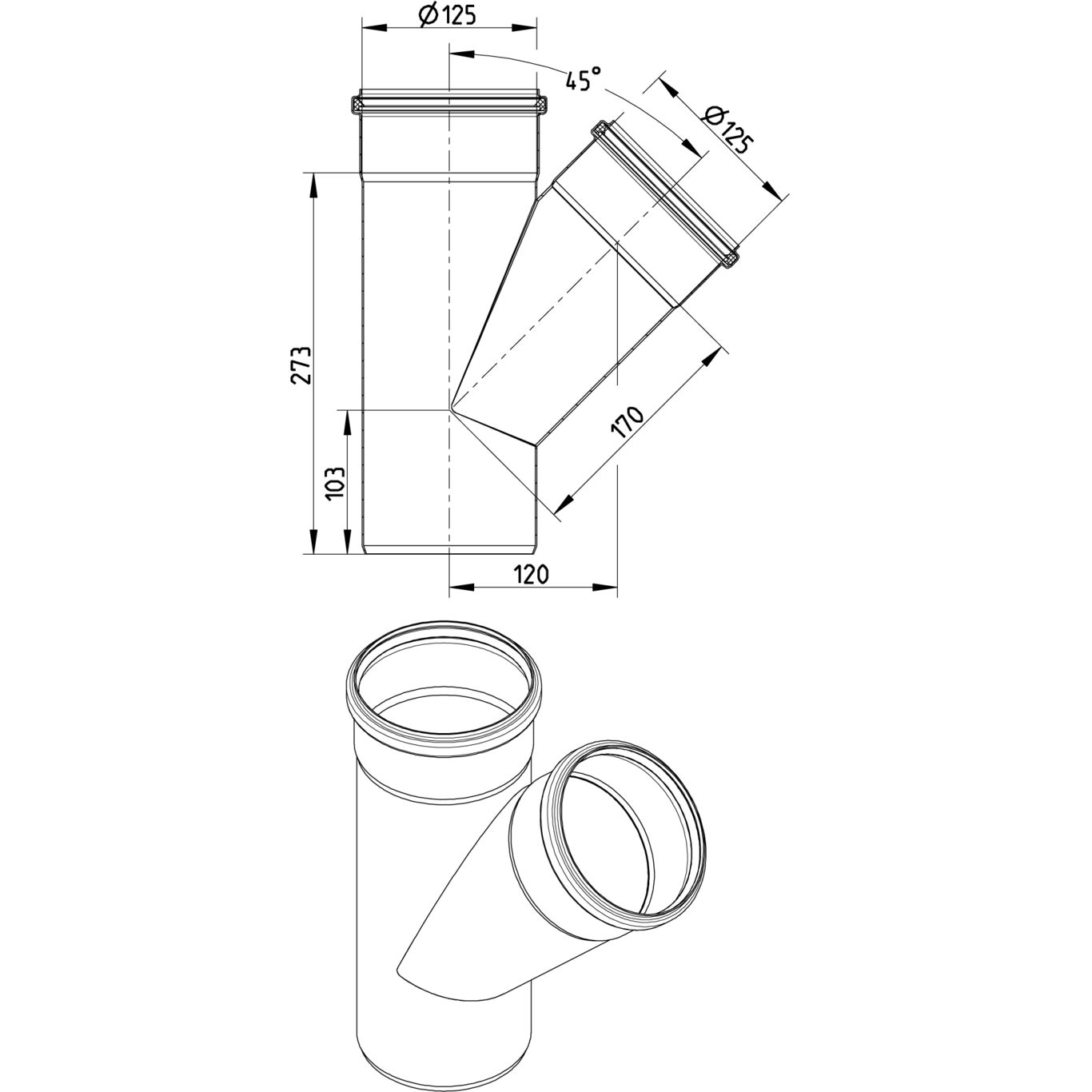

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 273 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 1,49 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001
