OBLIQUE BRANCH 45° - (838.160.160 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.160.160 S
EAN no.: 5705499402506
VVS no.: 160224460
RSK no.: 1550308
NRF no.: 2170139
LVI no.: 0251165

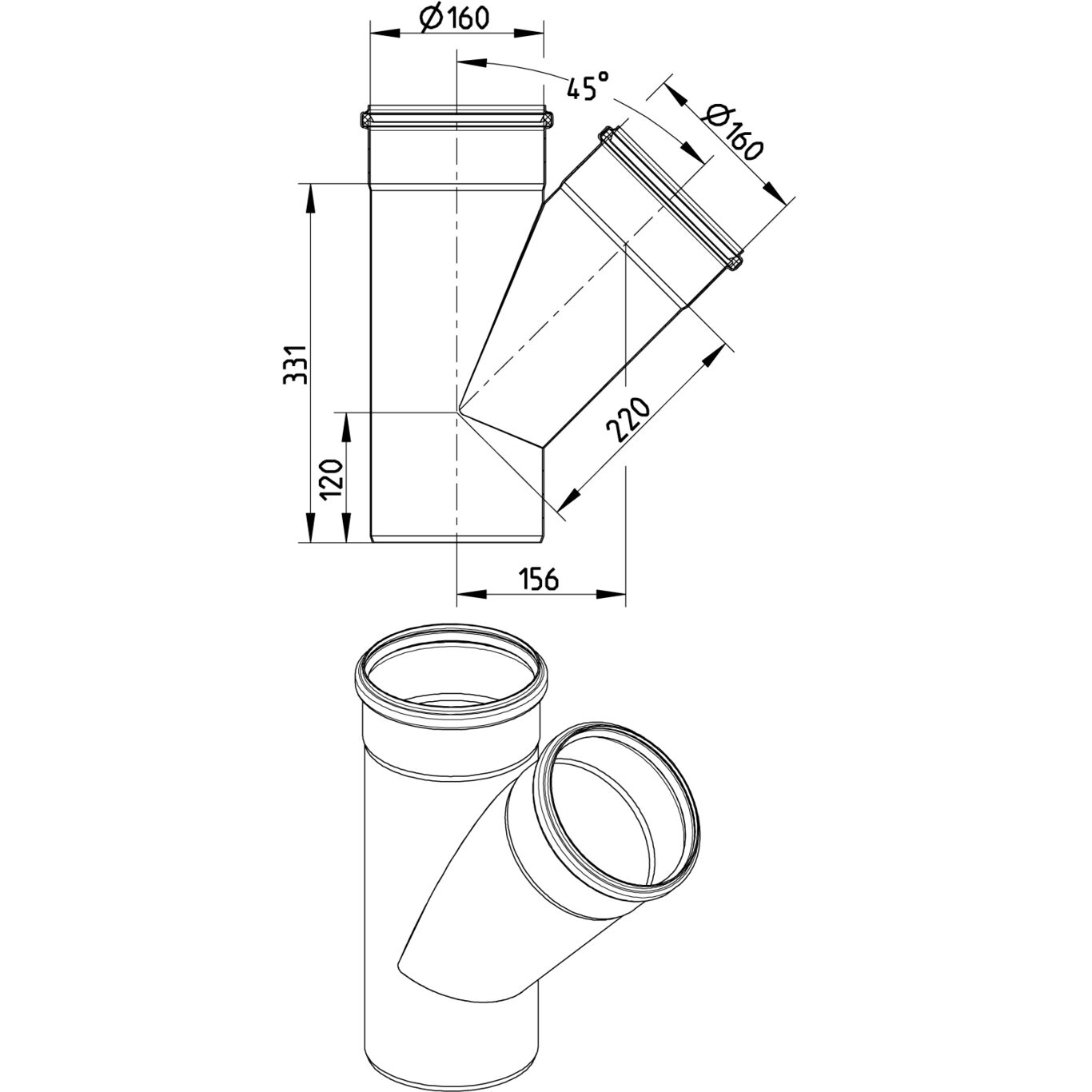

OBLIQUE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 331 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 3,04 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19350
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
