BRANCH 87.5° WITH ACCESS - (834.110.110 S)
×
![]()
Part Of the Series: Branch-87.5-access
Type no.: 834.110.110 S
EAN no.: 5705499409284
NRF no.: 2172605
LVI no.: 0256037

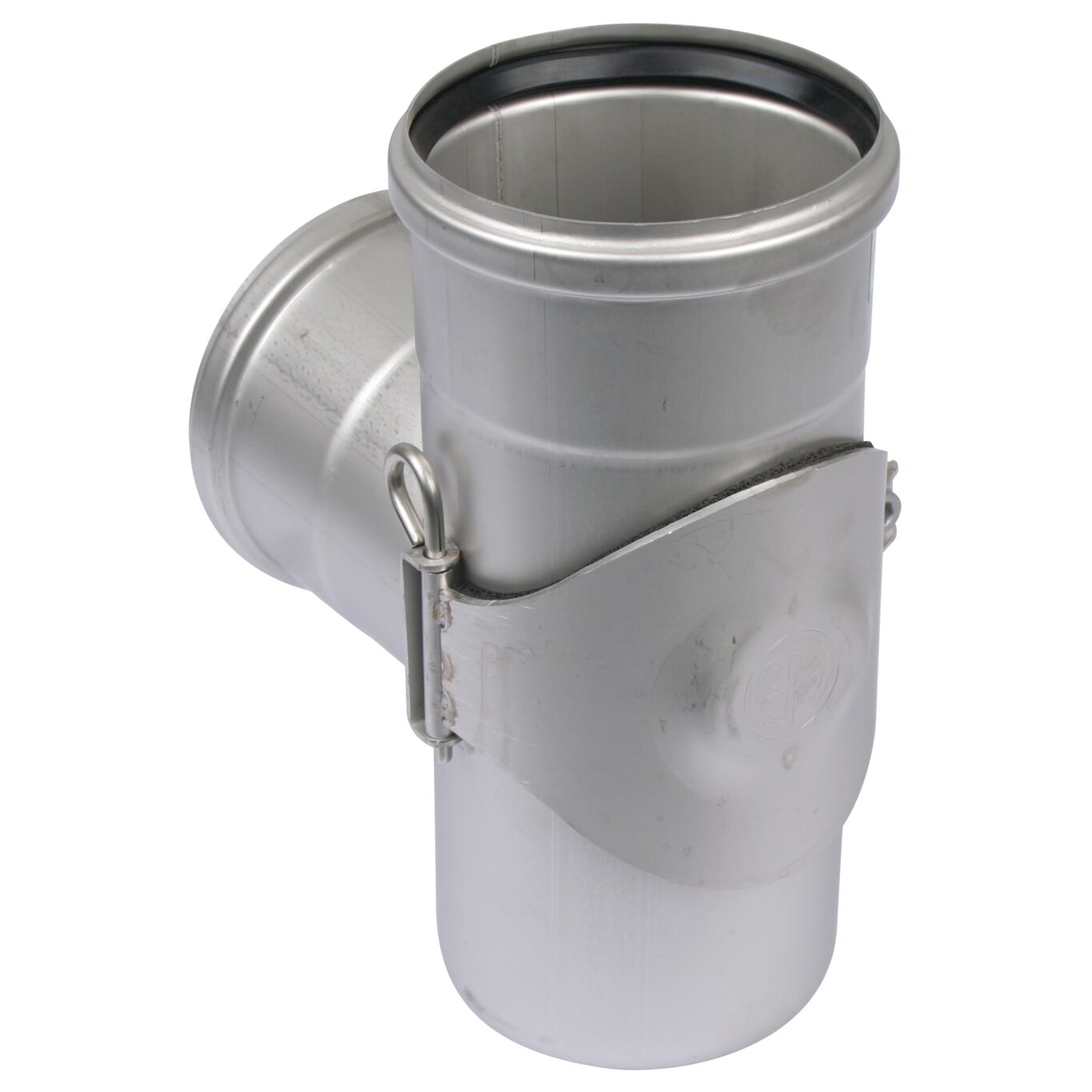

BRANCH 87.5° WITH ACCESS
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 194 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,17 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
TÜRK LOYDU - 25041616077231247
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
