BRANCH 87.5° - (830.040.040)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.040.040
EAN no.: 5705499412932
VVS no.: 160221040
RSK no.: 1552786
NRF no.: 2171206
LVI no.: 0241951

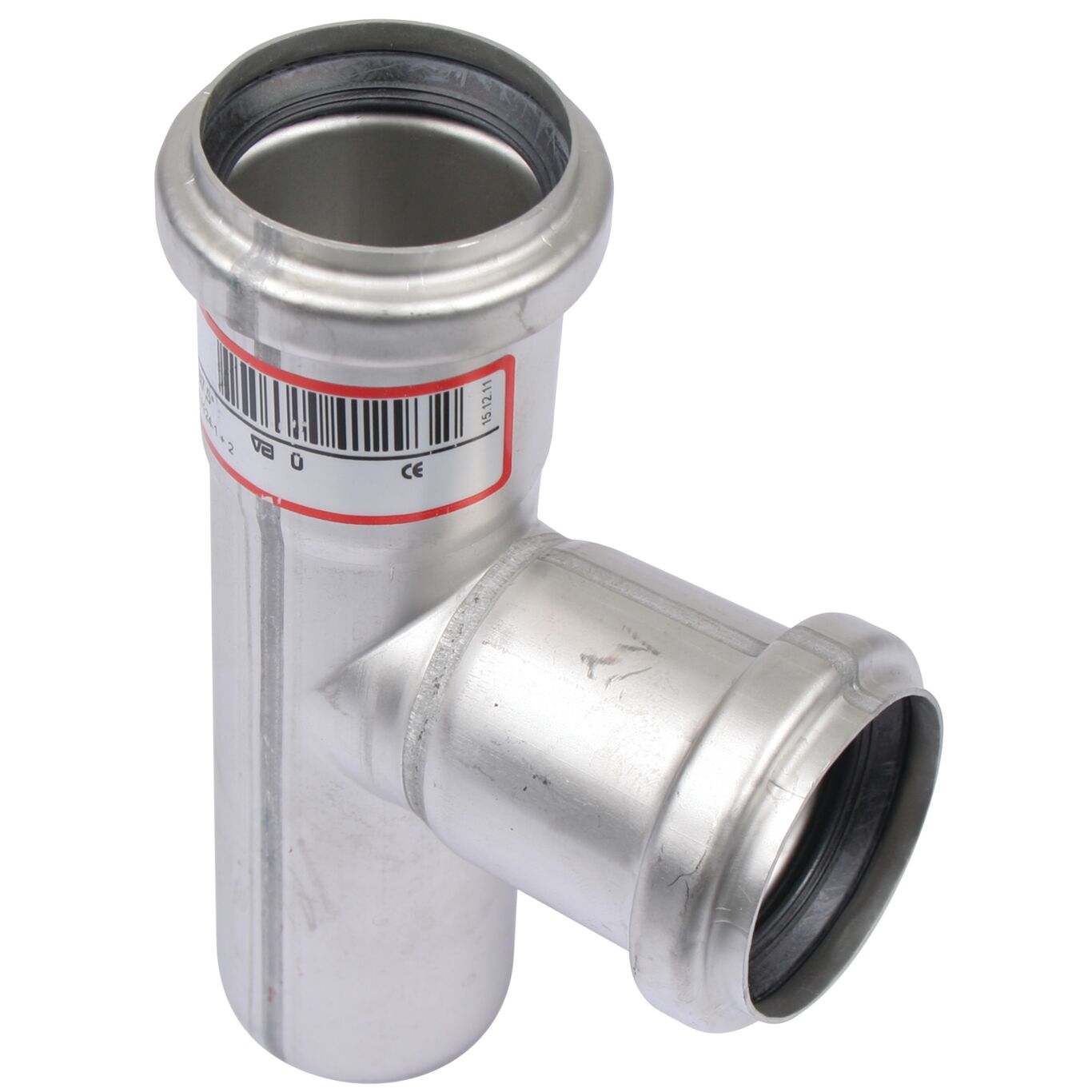

BRANCH 87.5°

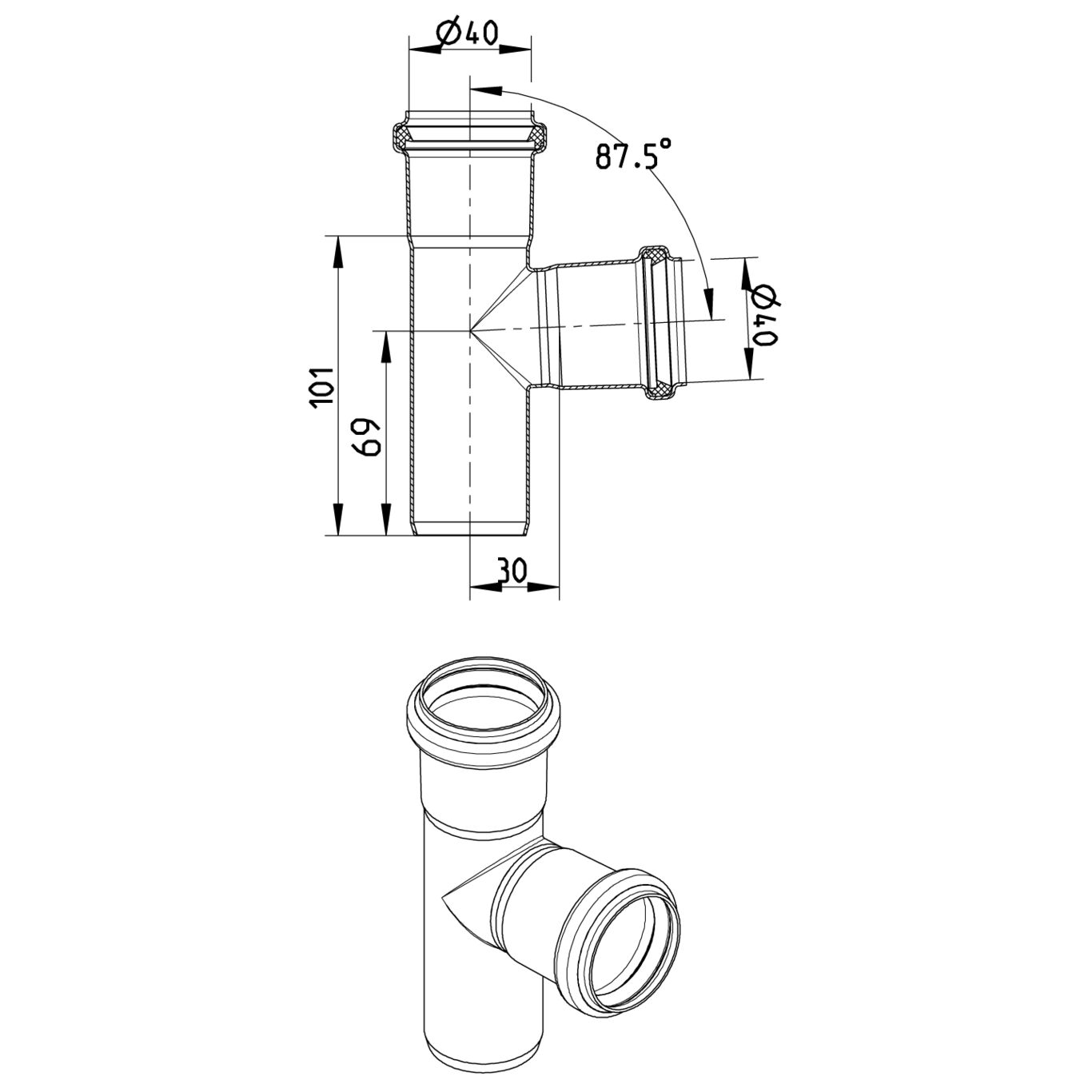

-Pipe diameter: Ø40mm. Branch diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 101 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,22 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA
