BRANCH 87.5° - (830.050.050 S)
Part Of the Series: Branch-87.5
Type no.: 830.050.050 S
EAN no.: 5705499401615
VVS no.: 160221350
RSK no.: 1550302
NRF no.: 2170809
LVI no.: 0251953

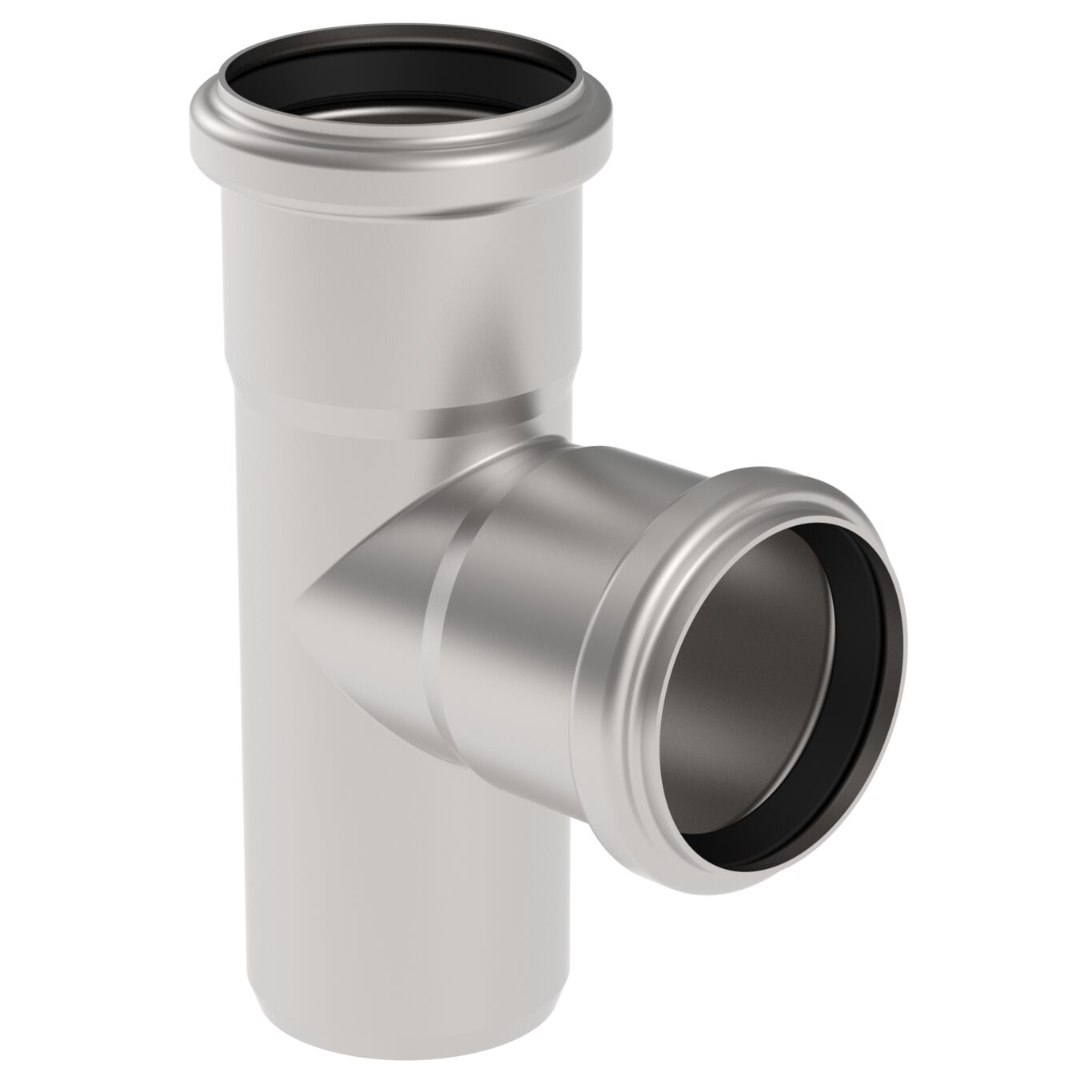

BRANCH 87.5°

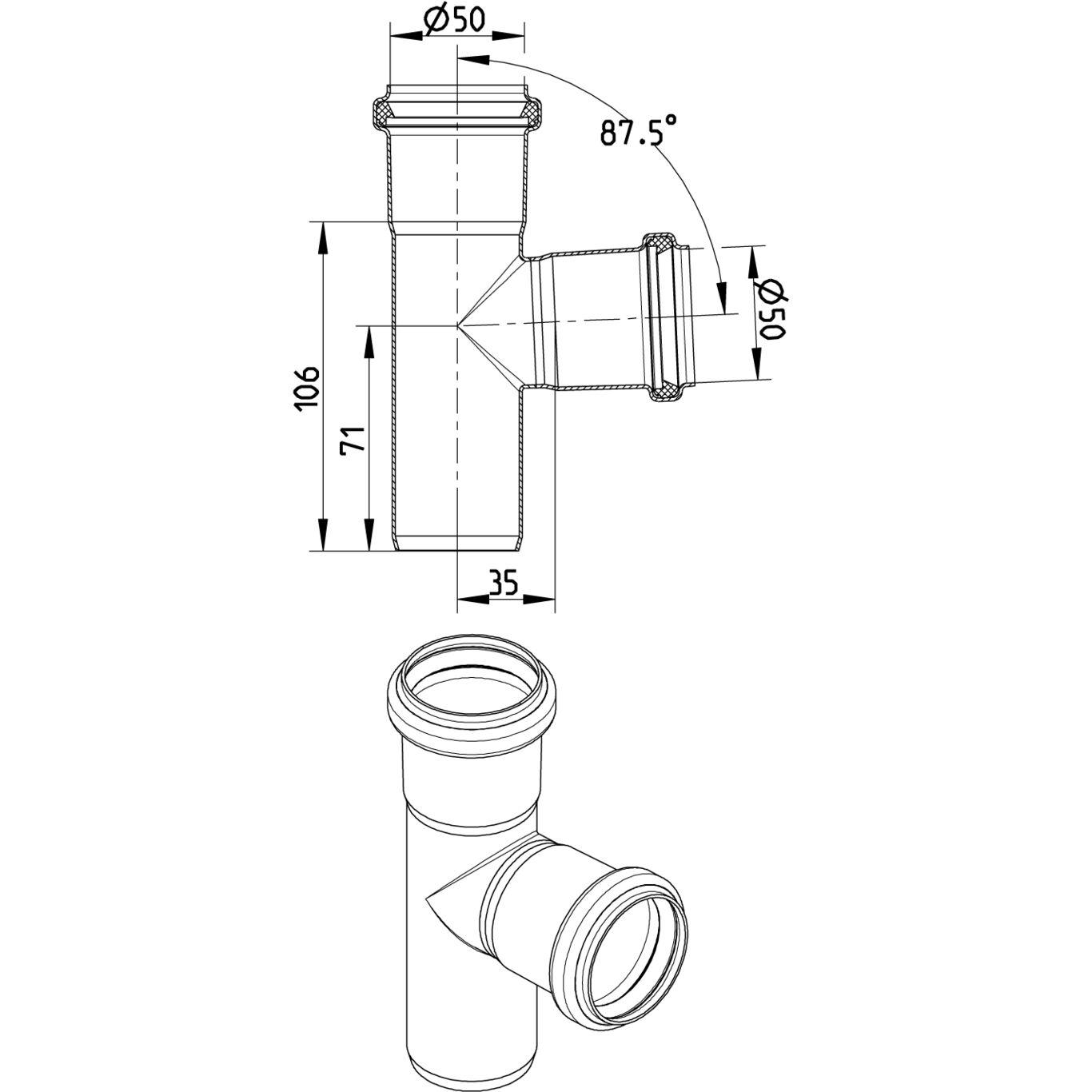

-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 106 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,27 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22
