BRANCH 87.5° - (830.050.082 S)

Part Of the Series: Branch-87.5

Type no.: 830.050.082 S

EAN no.: 5705499411935

VVS no.: 160221380

NRF no.: 2172563

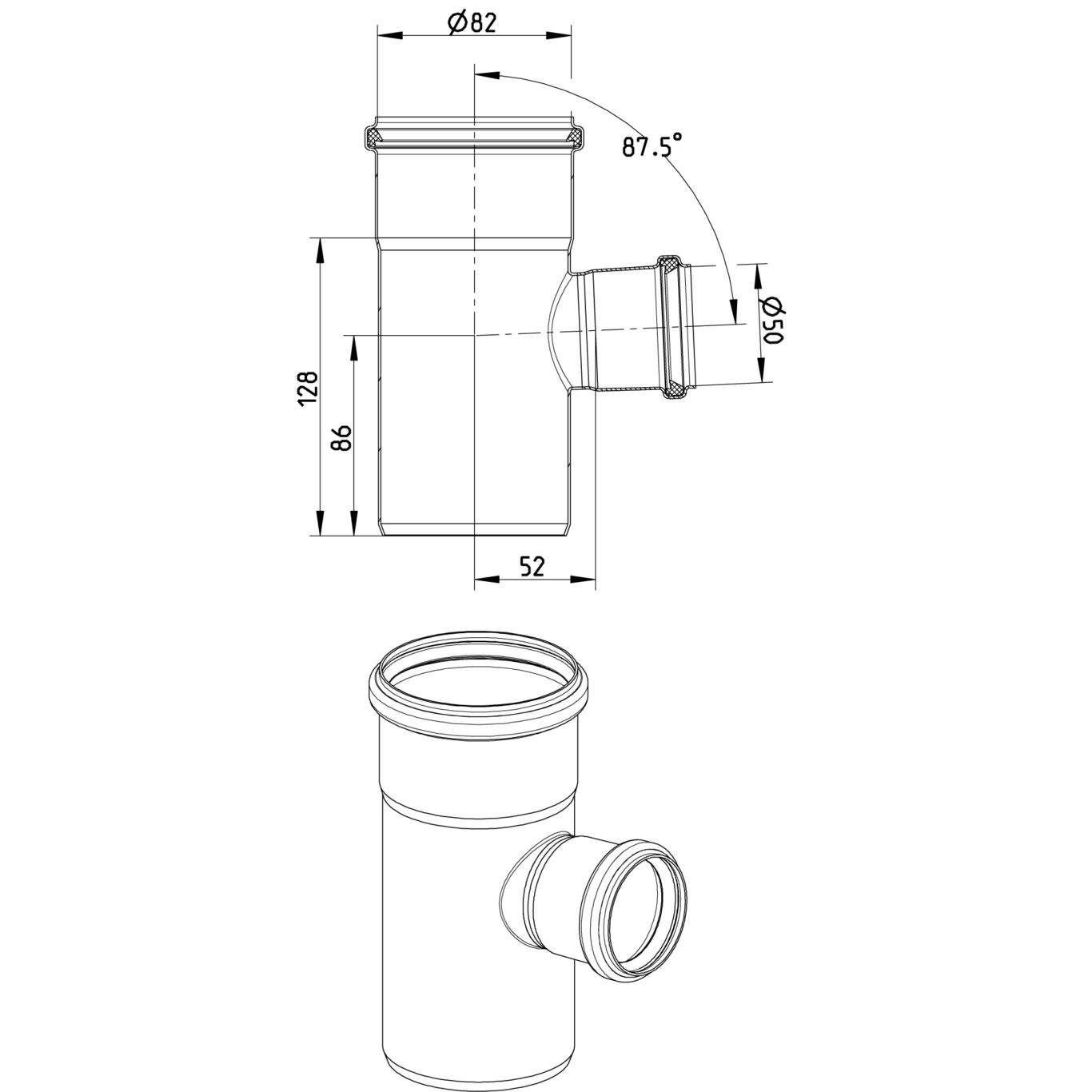

BRANCH 87.5°
-Pipe diameter: Ø82mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
All Renovation 82 products	RS82
Angle (°)	87.5
Length (mm)	128
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	82
Weight (kg)	0,47

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

HACCP Food Safety Programme - Europe DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings
