BRANCH 87.5° - (830.075.075)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.075.075
EAN no.: 5705499401684
VVS no.: 160221075
RSK no.: 1550103
NRF no.: 2170116
LVI no.: 0241956

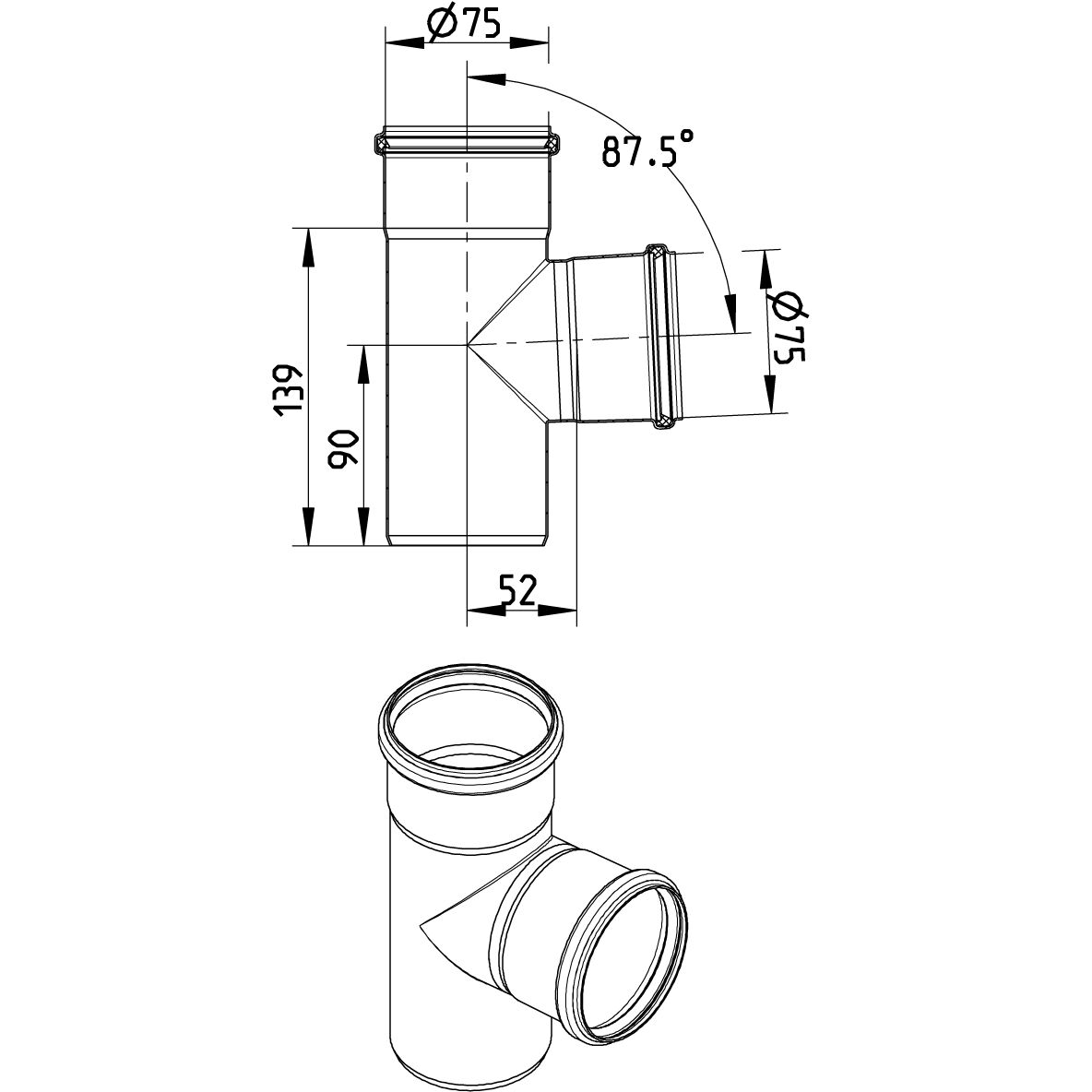

BRANCH 87.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
