BRANCH 87.5° - (830.075.082 S)

Part Of the Series: Branch-87.5

Type no.: 830.075.082 S

EAN no.: 5705499411959

VVS no.: 160221381

NRF no.: 2172566

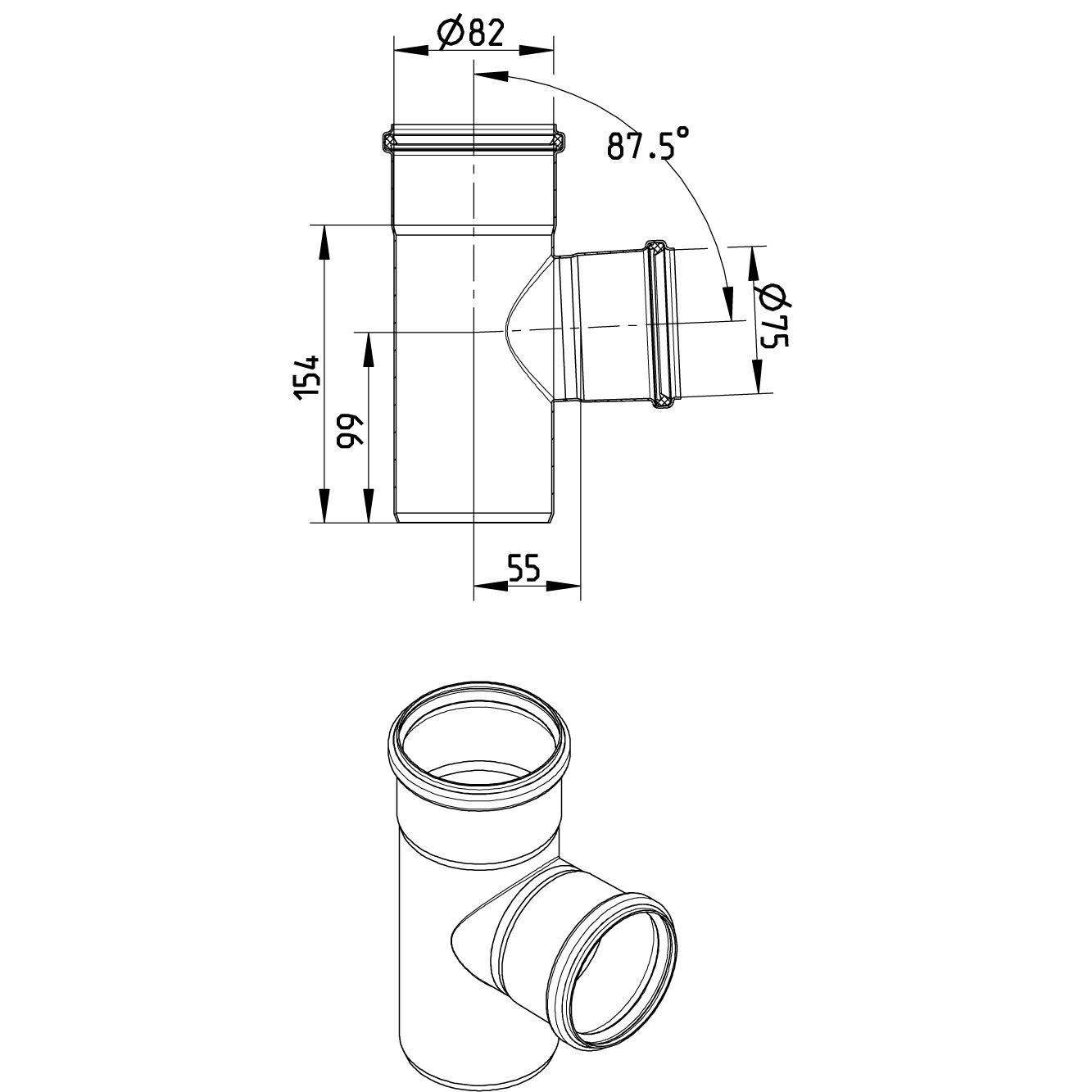

BRANCH 87.5°
-Pipe diameter: Ø82mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
All Renovation 82 products	RS82
Angle (°)	87.5
Length (mm)	154
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	82
Weight (kg)	0,57

Downloads
- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approval Information

For approval information, please refer to the below approval certificates.

HACCP Food Safety Programme - Europe DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes
