BRANCH 87.5° - (830.075.110 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.075.110 S
EAN no.: 5705499401714
VVS no.: 160221408
RSK no.: 1550307
NRF no.: 2170823
LVI no.: 0251959

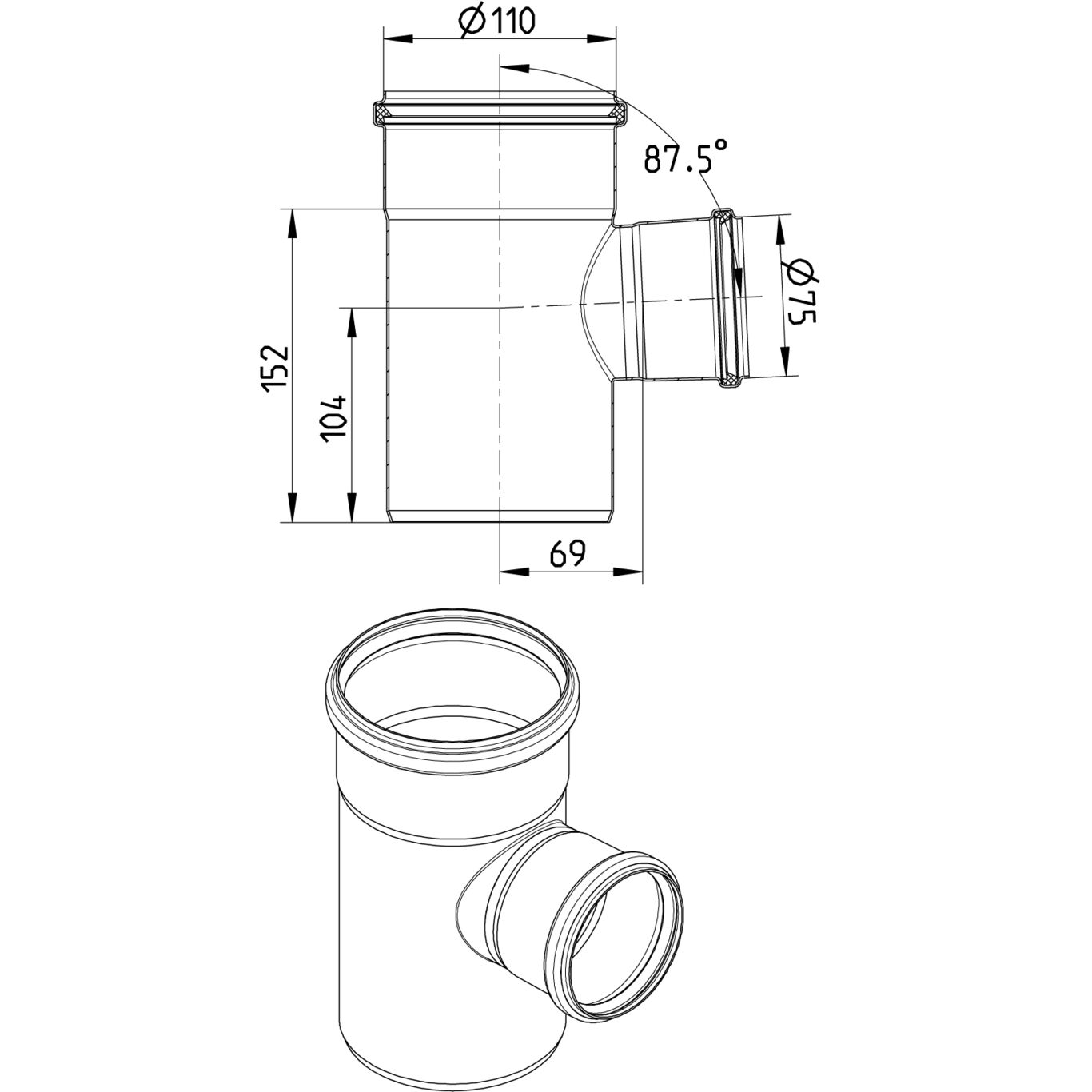

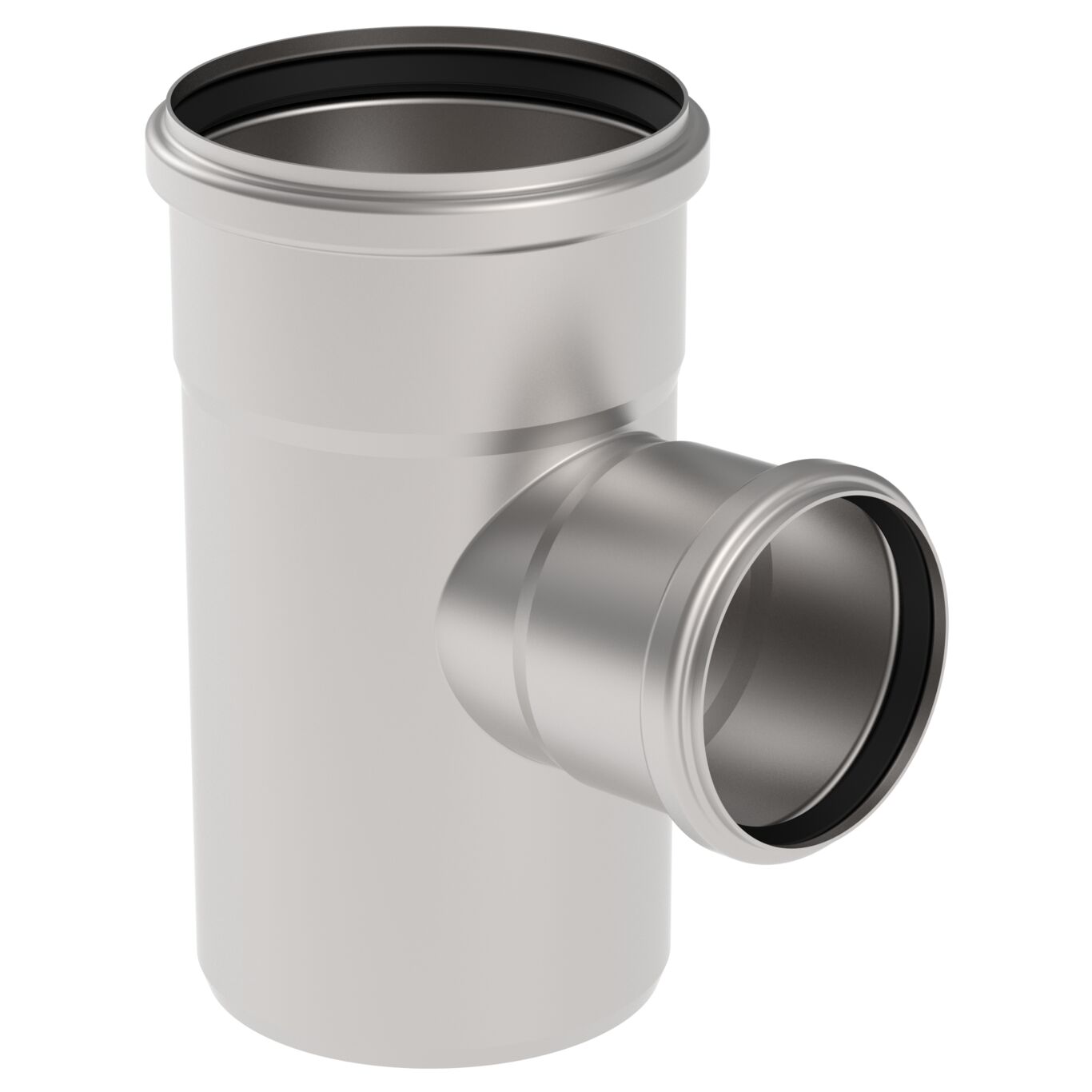

BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 152 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,76 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains
