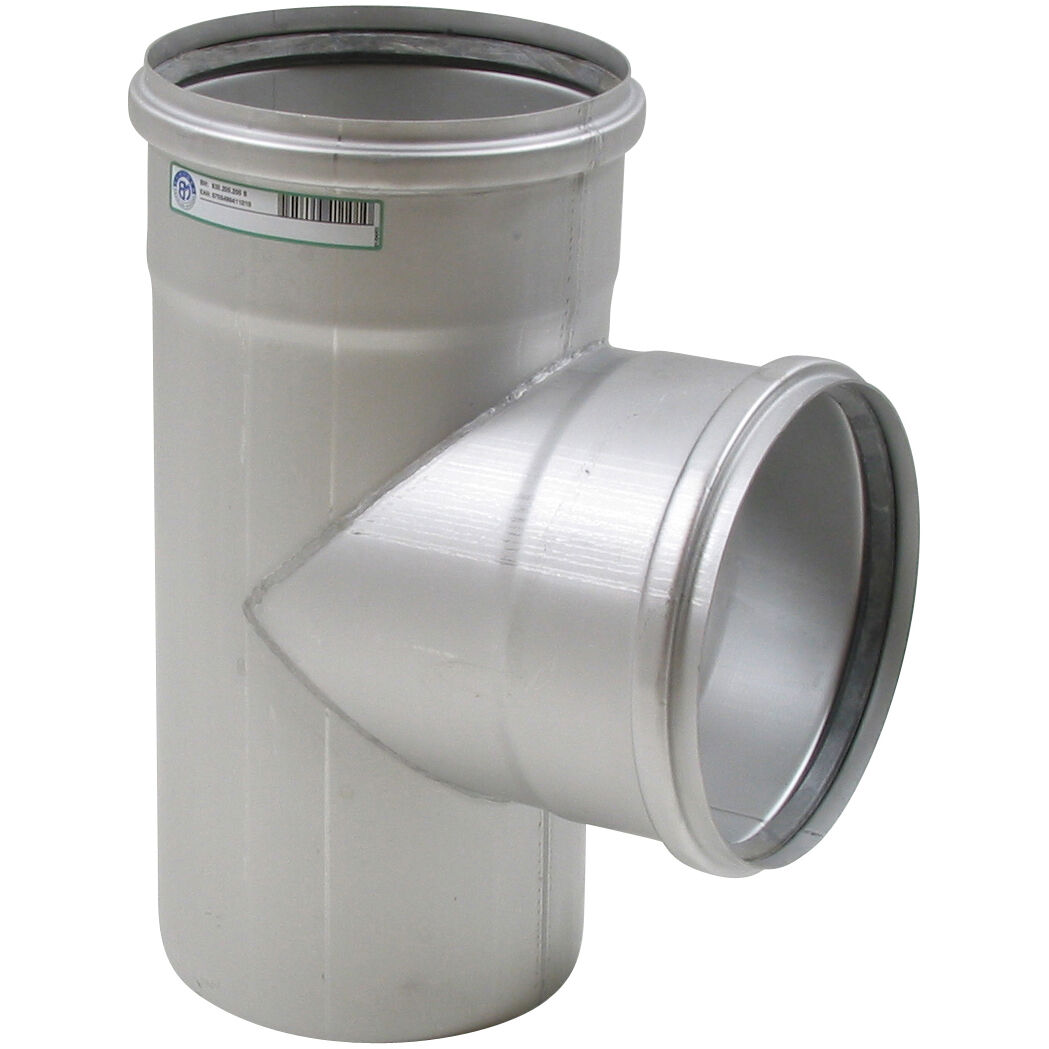

BRANCH 87.5° - (830.200.200 S)
Part Of the Series: Branch-87.5
Type no.: 830.200.200 S
EAN no.: 5705499411010
VVS no.: 160221500
RSK no.: 1551550
NRF no.: 2170822
LVI no.: 0251969

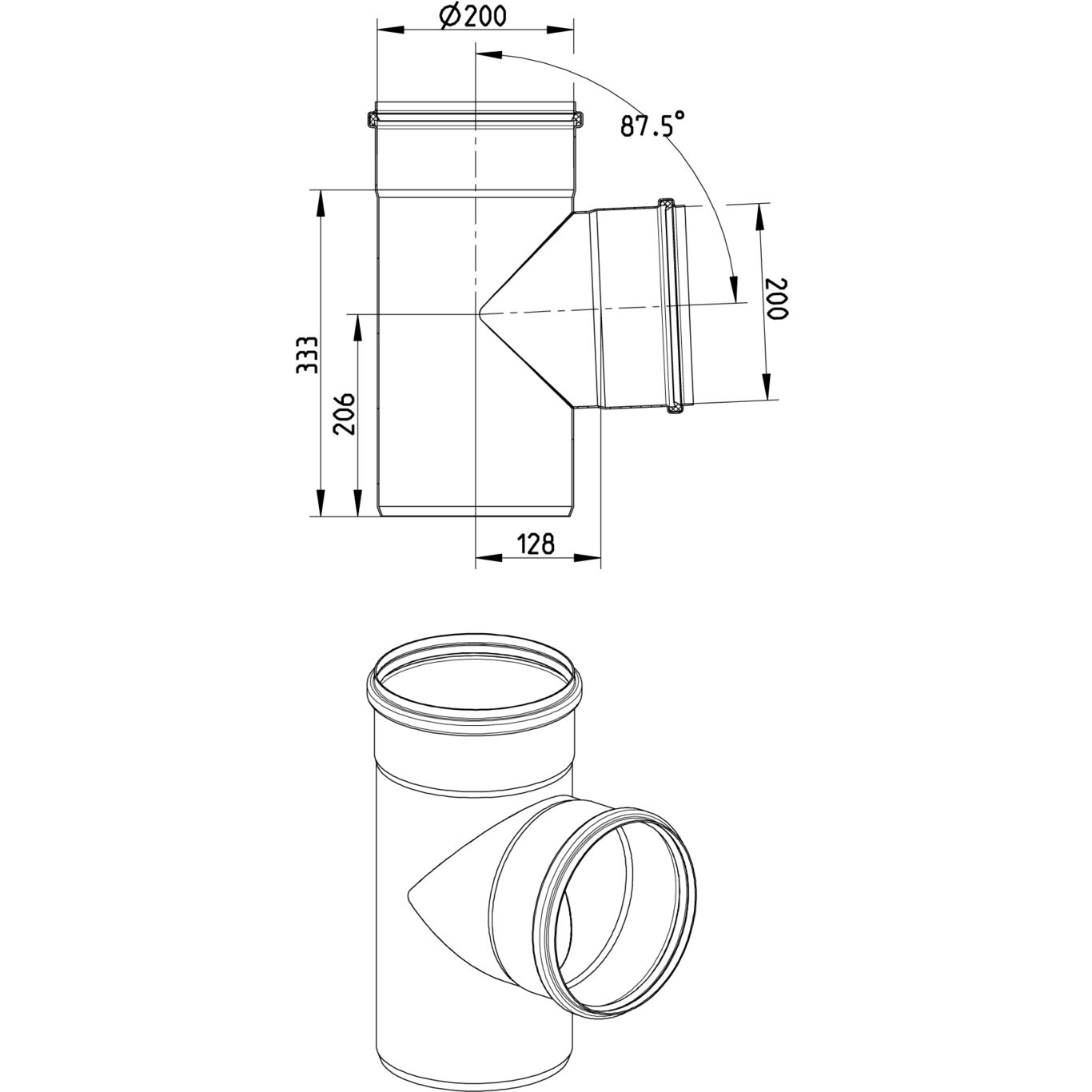

BRANCH 87.5°
-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 333 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 200 |
Weight (kg) | 4,17 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19350 HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001
