BRANCH 87.5° - (830.250.250 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.250.250 S
EAN no.: 5705499121643
VVS no.: 160221550
RSK no.: 1552159
NRF no.: 2170859
LVI no.: 0251971

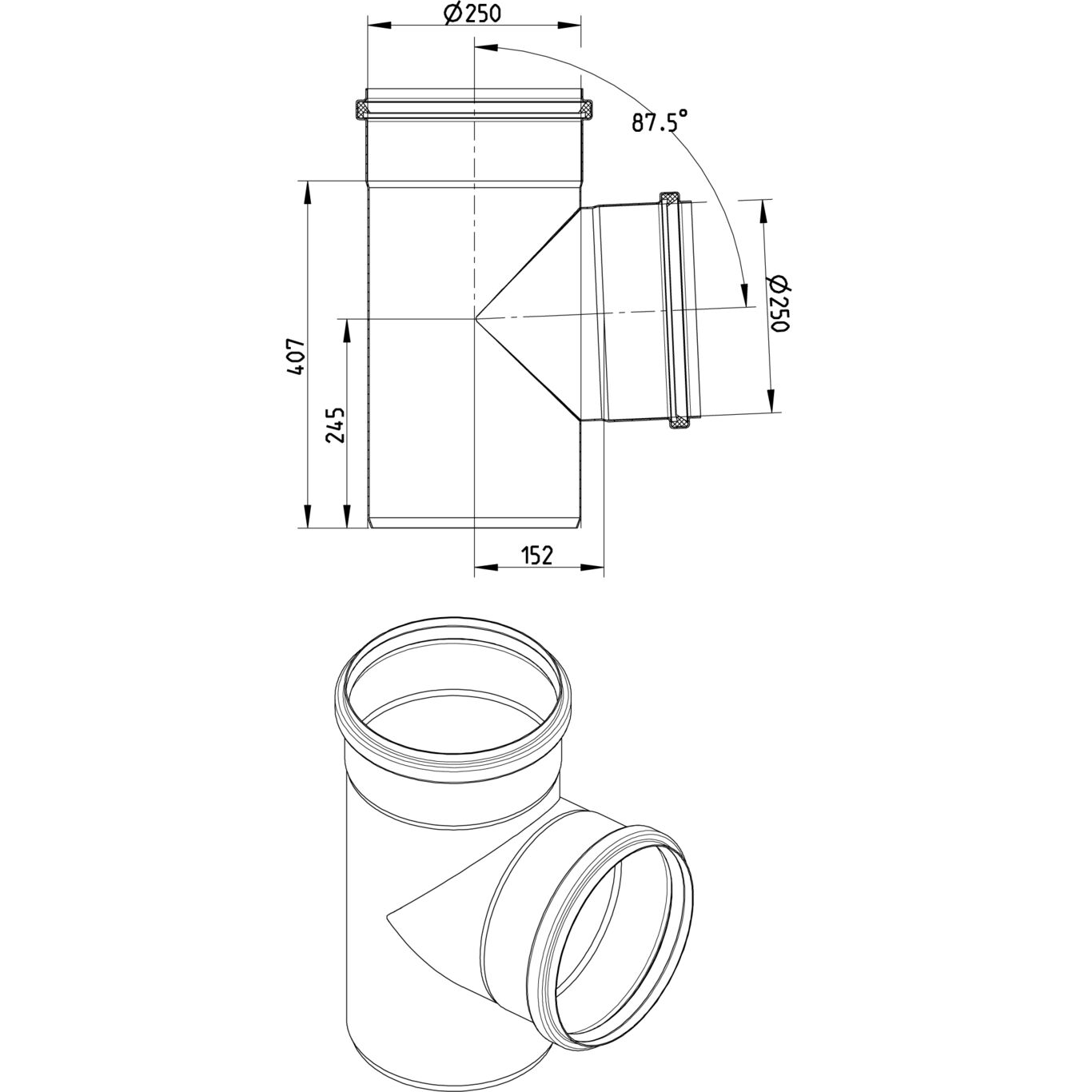

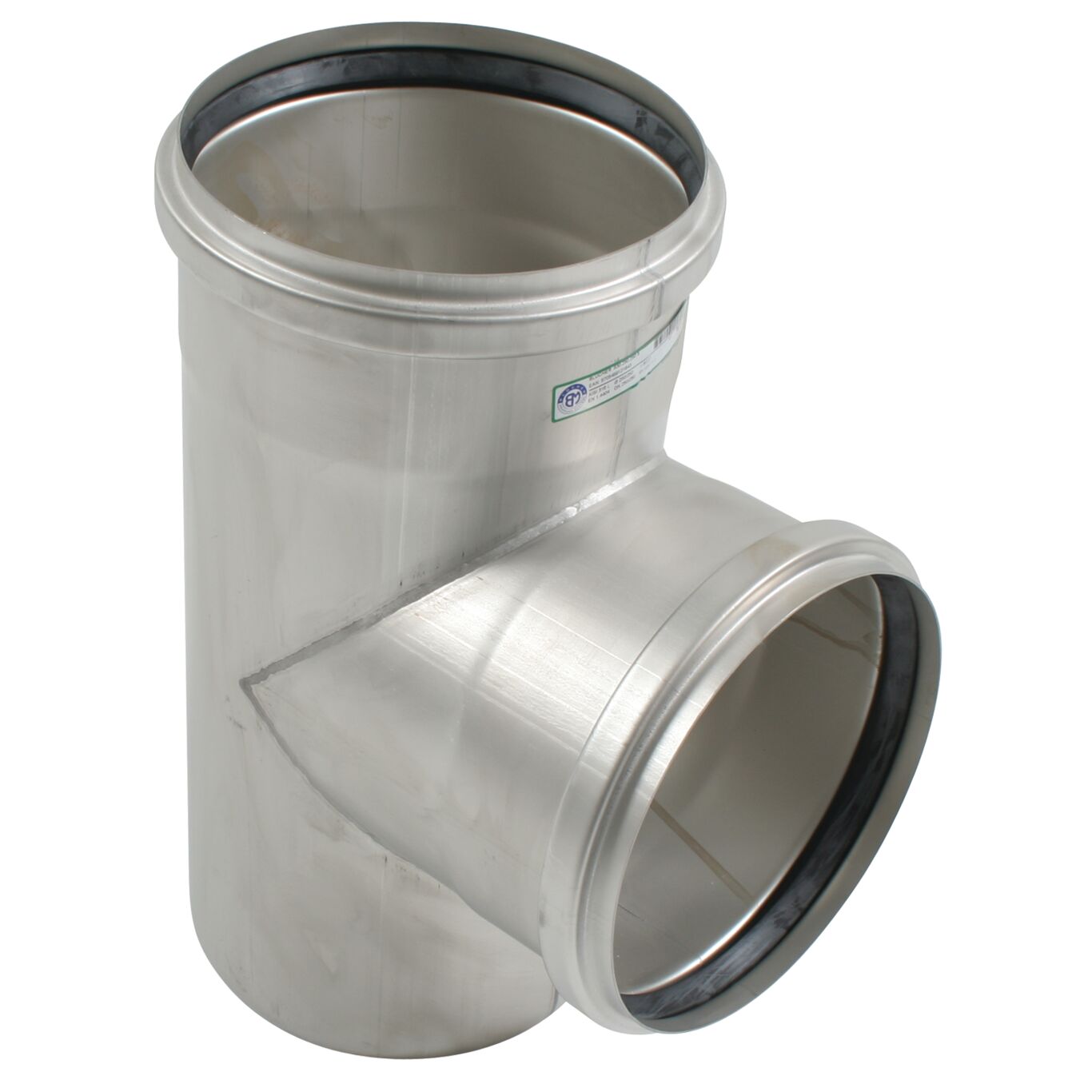

BRANCH 87.5°
-Pipe diameter: Ø250mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 407 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 6,53 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
Declaration of Perfomance BS-EN1124-1-002
DE - TÜV Rheinland R 60178453 0001
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
Declaration of Perfomance EN1124-1-001
TÜRK LOYDU - 25041616077231247
US - IAPMO File No.3247-EuroPipe
BLÜCHER® EuroPipe EPD UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
