BRANCH 89° - (830.075.110 AS)
×
![]()
Part Of the Series: Branch-89
Type no.: 830.075.110 AS
EAN no.: 5705499408935
NRF no.: 2172567

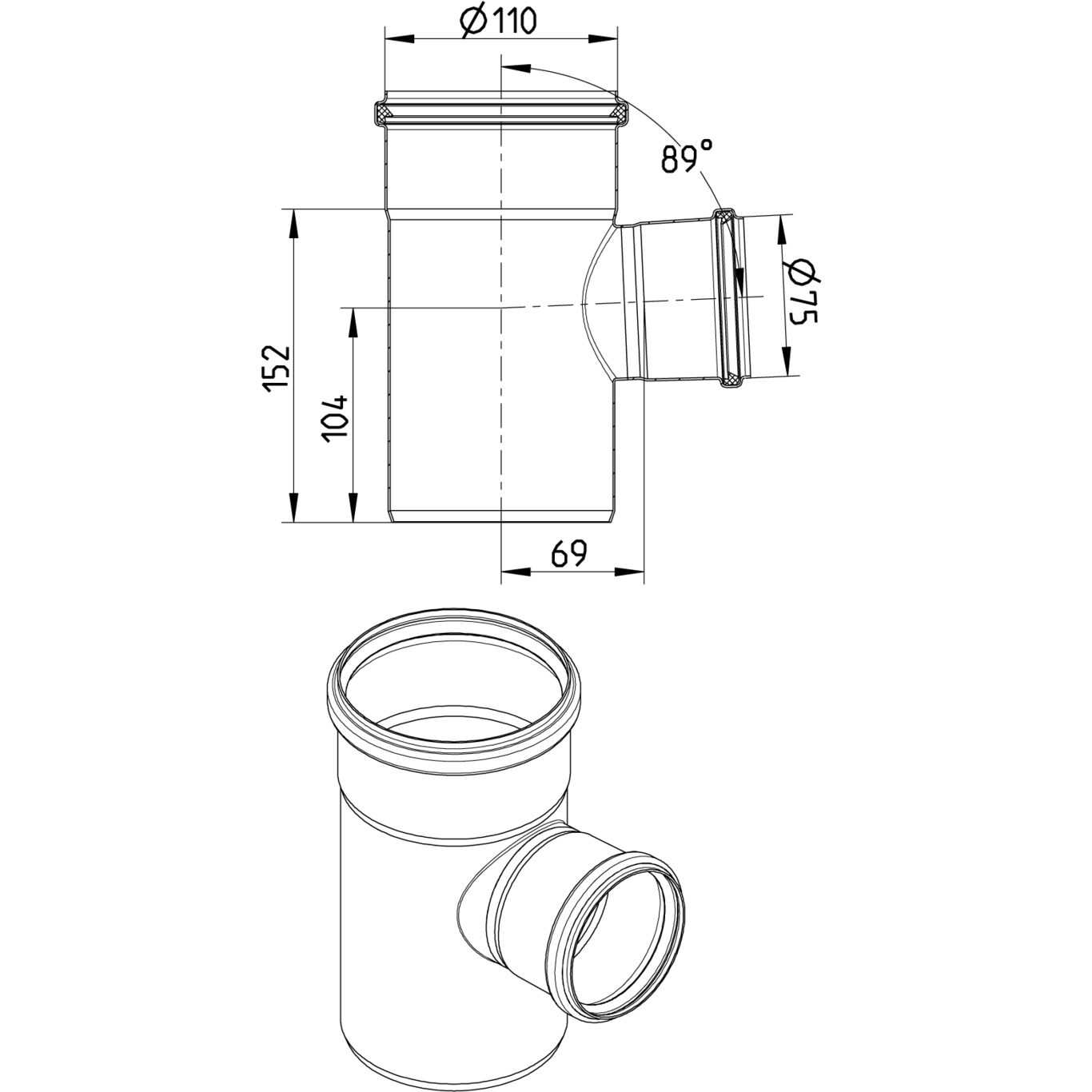

BRANCH 89°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 152 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,76 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
Declaration of Perfomance BS-EN1124-1-002
Declaration of Perfomance EN1124-1-001
TÜRK LOYDU - 25041616077231247
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 RINA -MAC320524XG EuroPipe
