DOUBLE BRANCH 45° - (836.110.160 S)
Part Of the Series: Double branch-45-180
Type no.: 836.110.160 S
EAN no.: 5705499402223
VVS no.: 160235457
RSK no.: 1549398
NRF no.: 2172613
LVI no.: 0253664

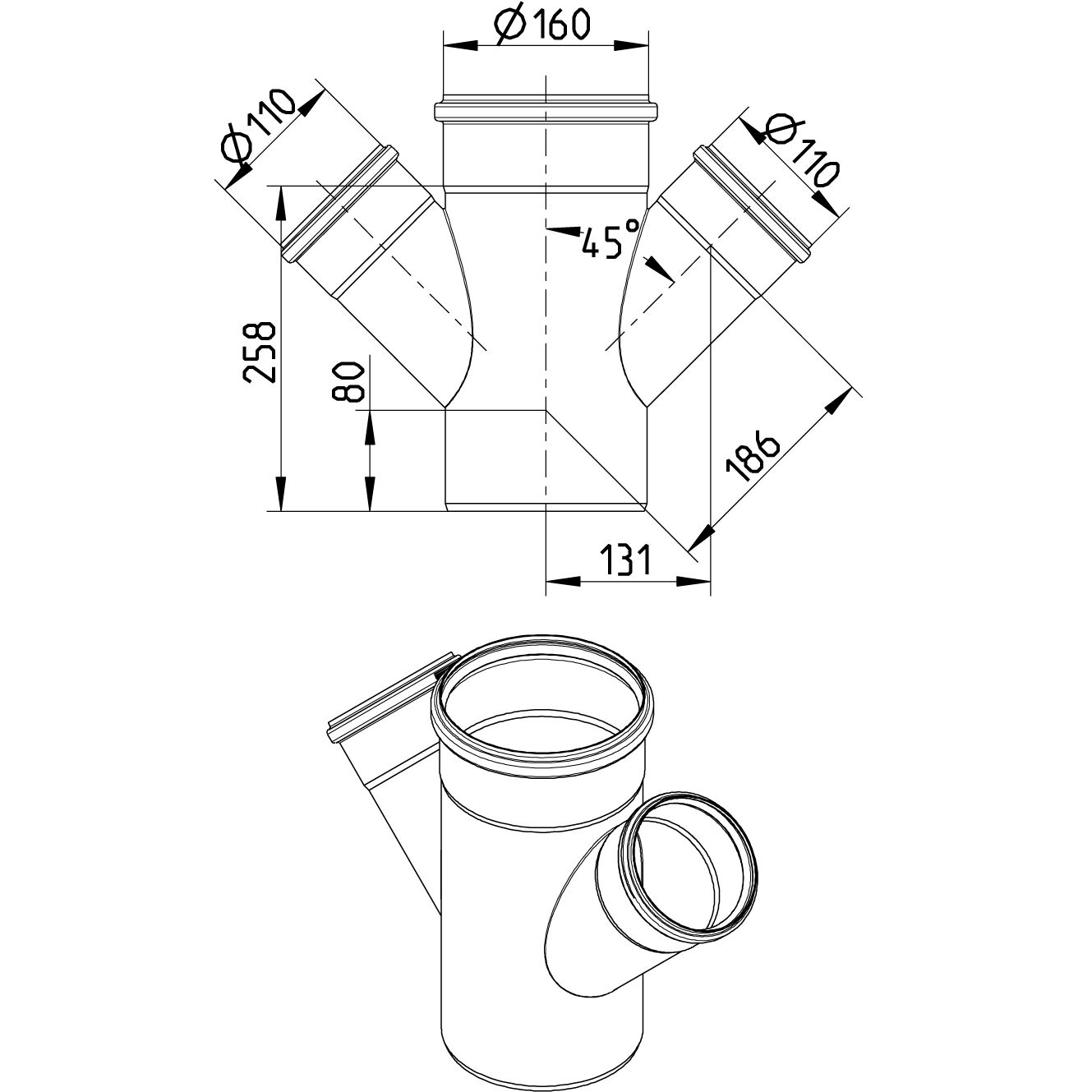

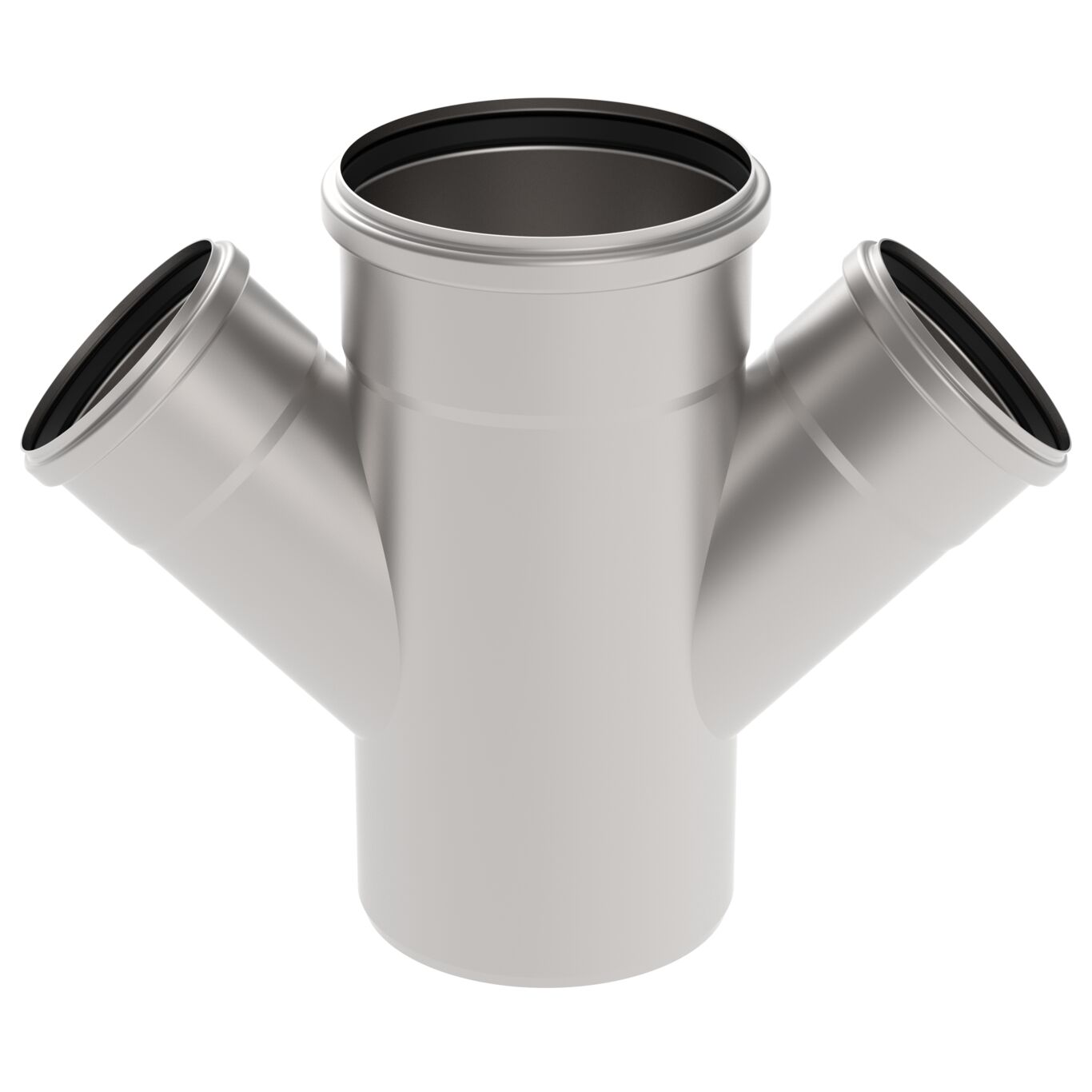

DOUBLE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 258 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 2,85 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia DK - VA 2.12/19350 US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe AUS - WMKT00204 - 24 HACCP Food Safety Programme - Europe KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings
