DOUBLE BRANCH 45° - (836.125.125 S)
Part Of the Series: Double branch-45-180
Type no.: 836.125.125 S
EAN no.: 5705499412581
NRF no.: 2172614
LVI no.: 0256028

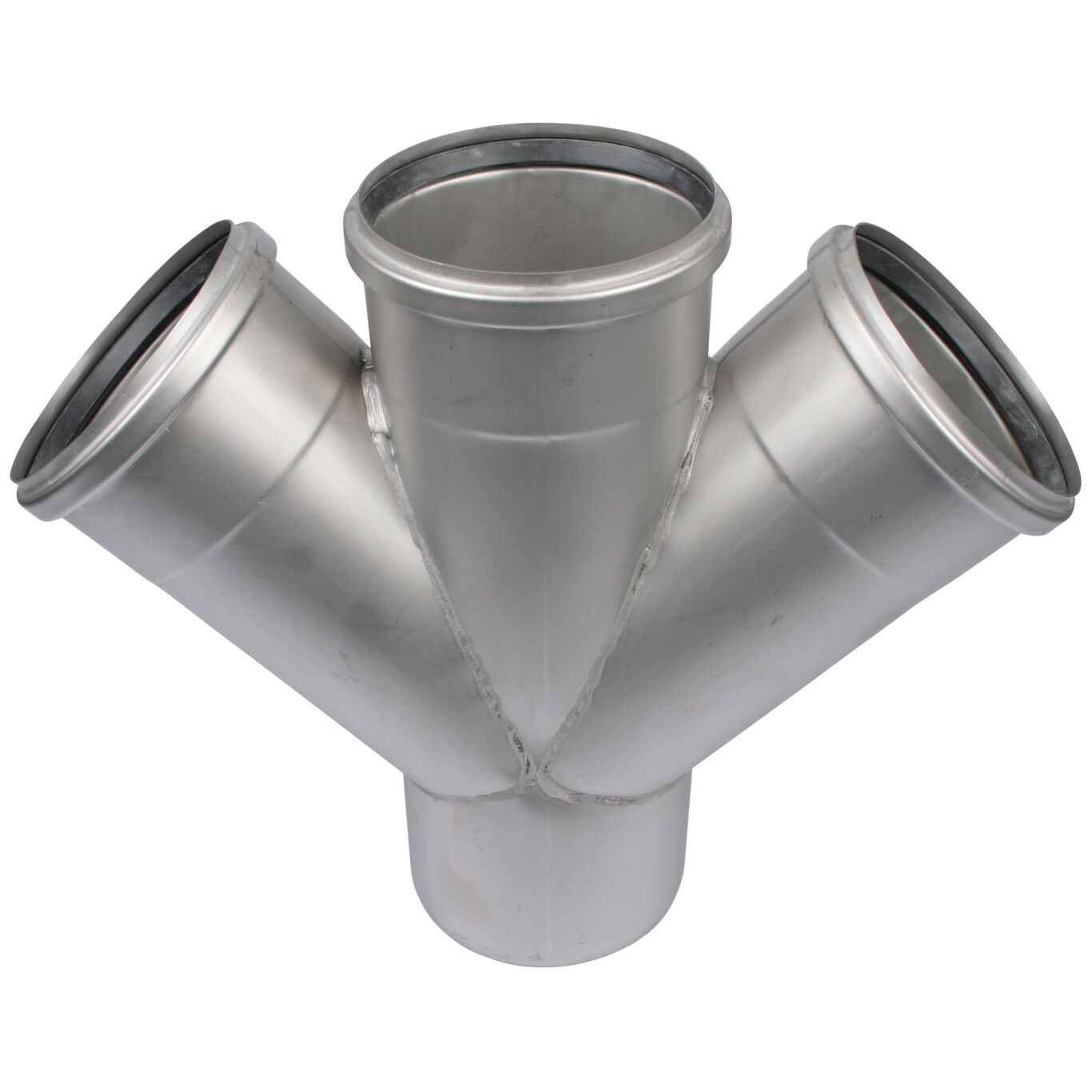

DOUBLE BRANCH 45°

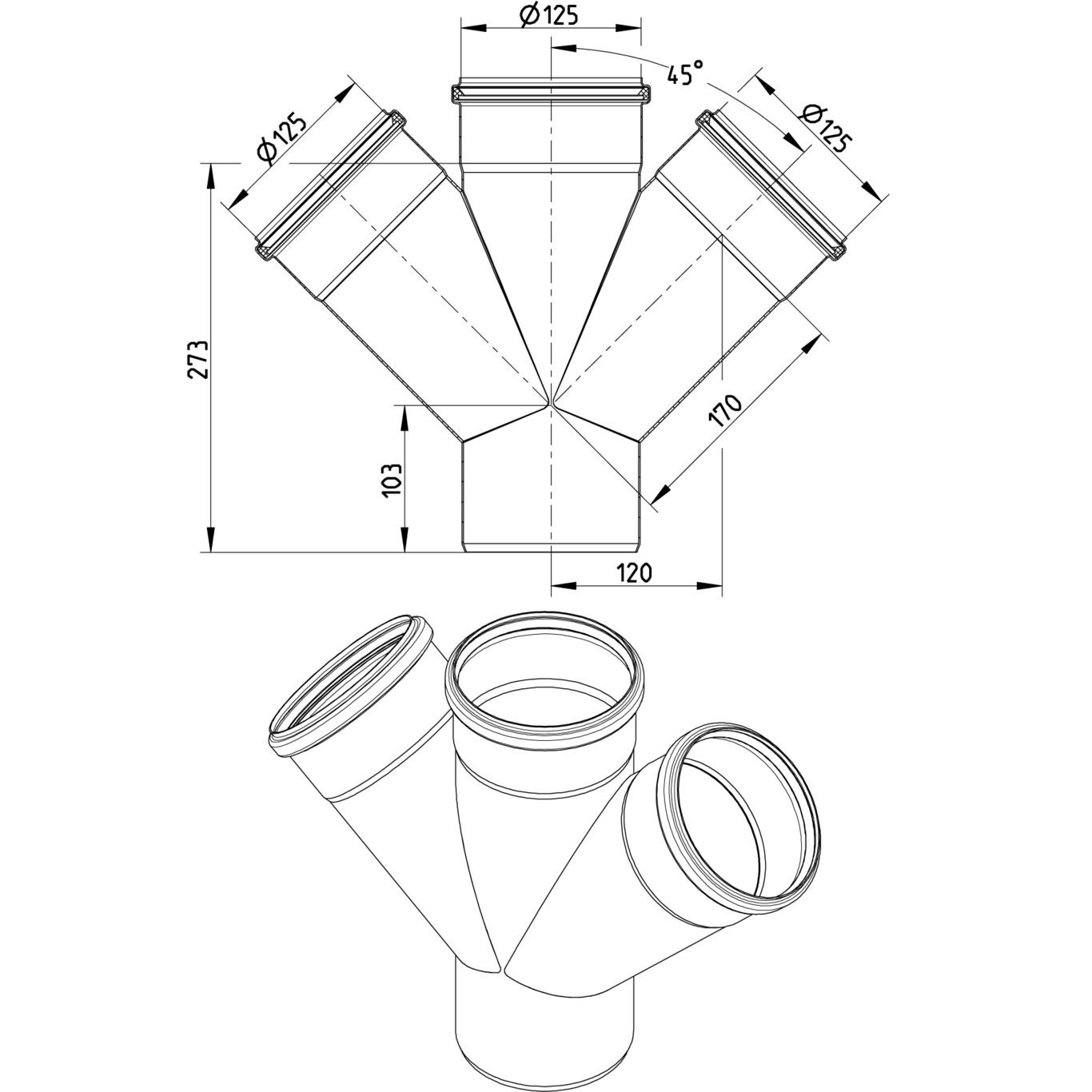

-Pipe diameter: Ø125mm. Branch diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 273 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 2,10 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350 DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products
