DOUBLE BRANCH 45° - (836.200.200 S)

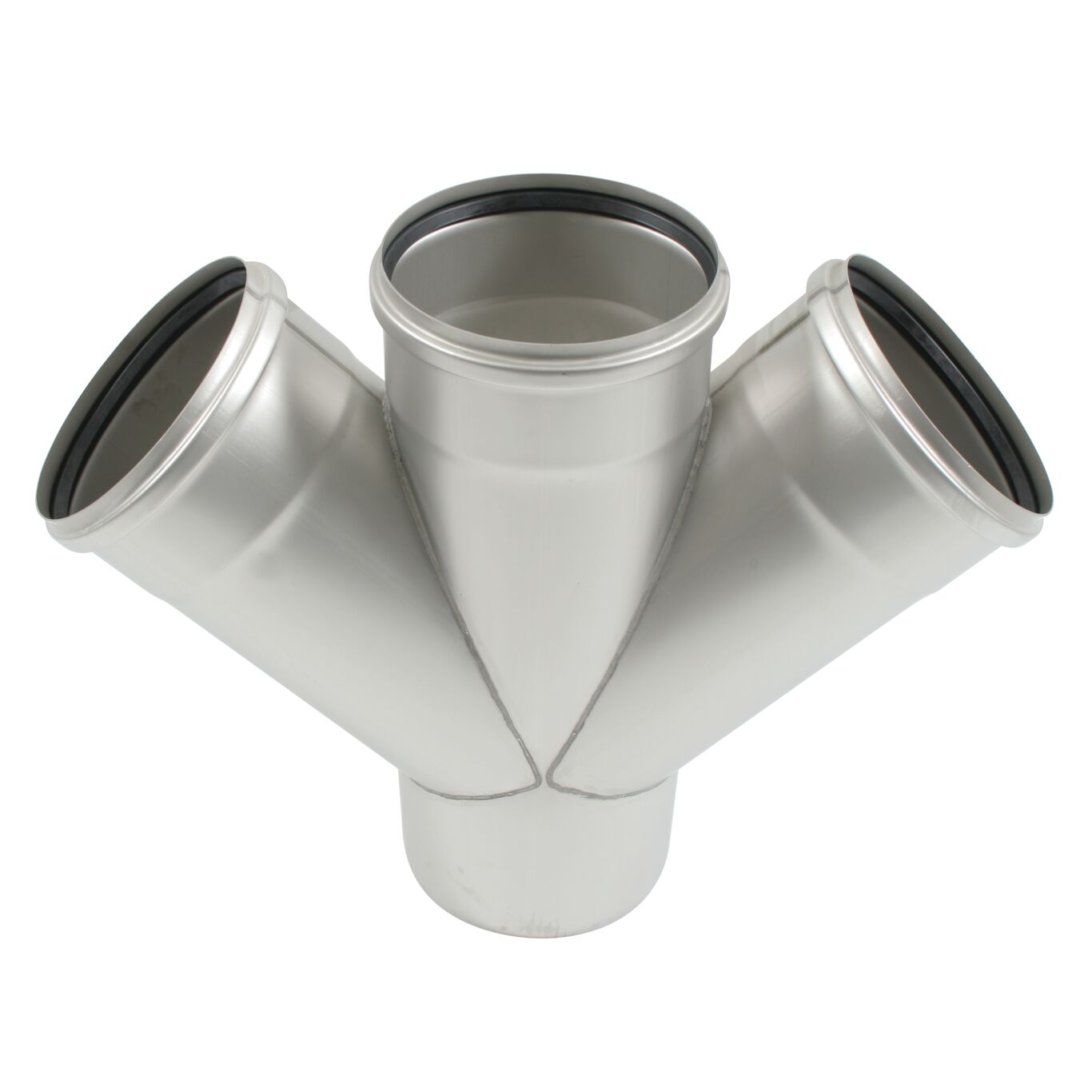

Product Image - Double branch-45-180

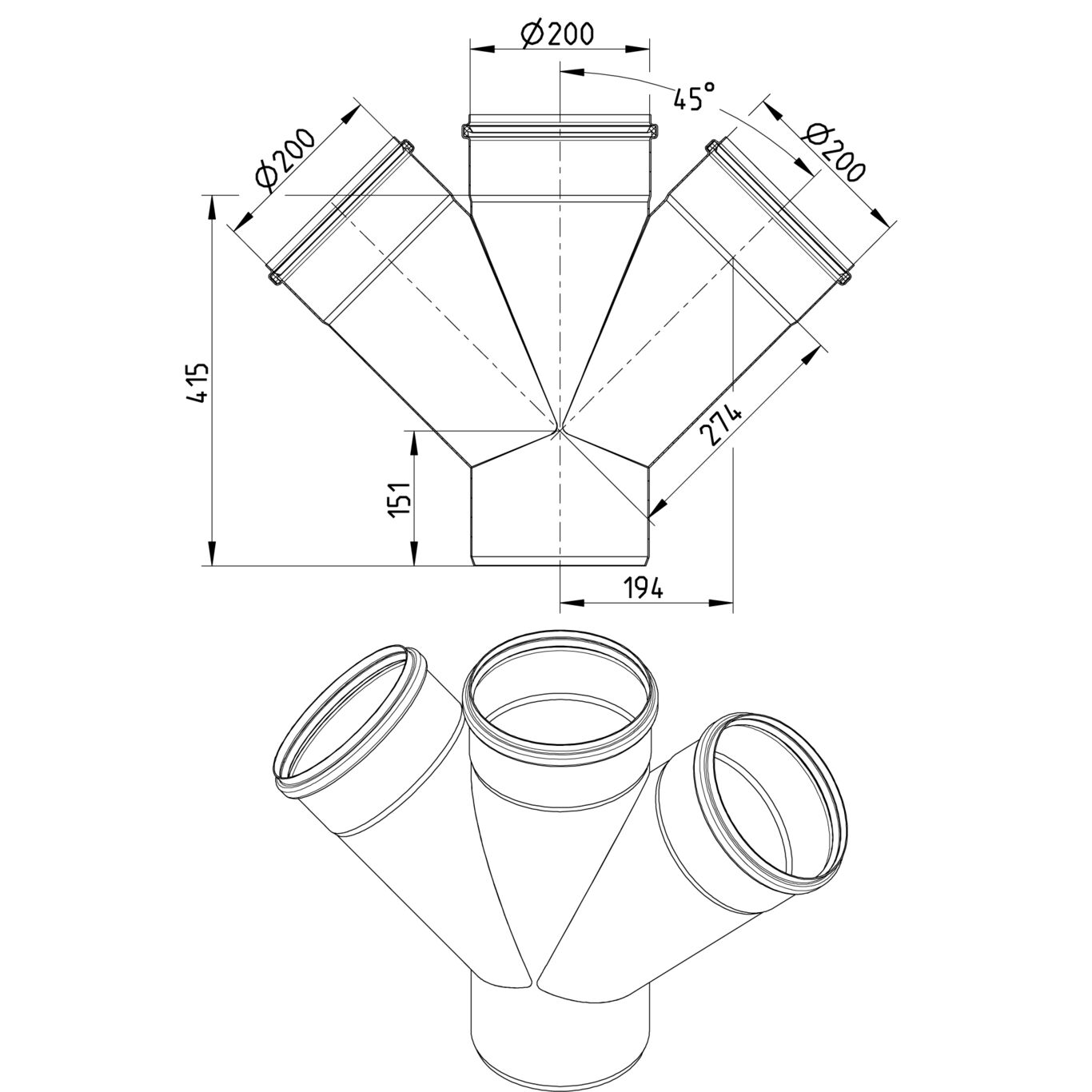

Line Drawing - Double branch-45-180

Part Of the Series: Double branch-45-180

Type no.: 836.200.200 S

EAN no.: 5705499412598

NRF no.: 2172616

LVI no.: 0256029

DOUBLE BRANCH 45°
-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	45
Length (mm)	415
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet Diameter (mm)	200
Weight (kg)	5,28

Downloads

Approval Information

For approval information, please refer to the below approval certificates.

DK - VA 2.12/19350 FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products

Find a Sales Representative

Find a Wholesaler/Distributor

Customer Support Access BIM Drawings

Share this Product

Product Accessories

Clamps

PIPE JOINT CLAMP - (847.200.200)

PRESSURE PEAK CLAMP - (847.001.200)

Oil and Lubricants

JOINTING LUBRICANT 0.5 L - (007.100.050)

GLIDEX SILICONE LUBRICANT - (007.200.040)

JOINTING LUBRICANT 0.5 L - (007.100.050 SIL)

Pipe Hangers

PIPE HANGER WITH EPDM - (895.402.200)

PIPE HANGER WITH EPDM - (895.403.200 S)

PIPE HANGER WITH EPDM - (895.401.200)

Plugs

SOCKET PLUG - (844.000.200 S)

Sealing Rings

NBR SEAL BLACK/YELLOW - (801.NBR.200)

EPDM LIP SEALING BLACK, Ø200MM - (801.EPDM.200)

FPM LIP SEALING GREEN, Ø200MM - (801.FPM.200)

Tools

ASSEMBLY TOOL - (806.000.200)

DIMPLING JAWS - (800.200.001)
