DOUBLE BRANCH 45° - (836.250.250 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.250.250 S
EAN no.: 5705499412604
NRF no.: 2172617
LVI no.: 0256030

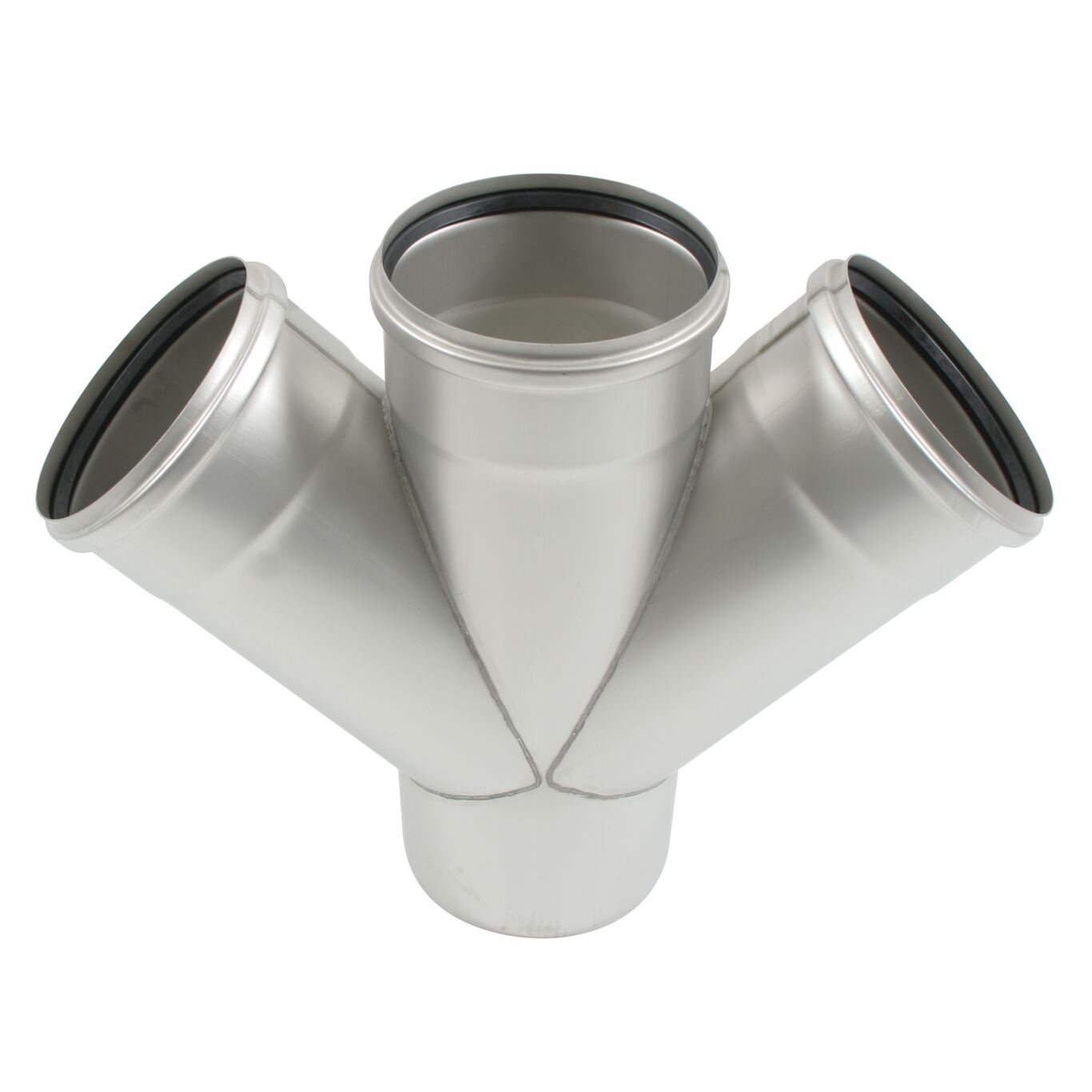

DOUBLE BRANCH 45°

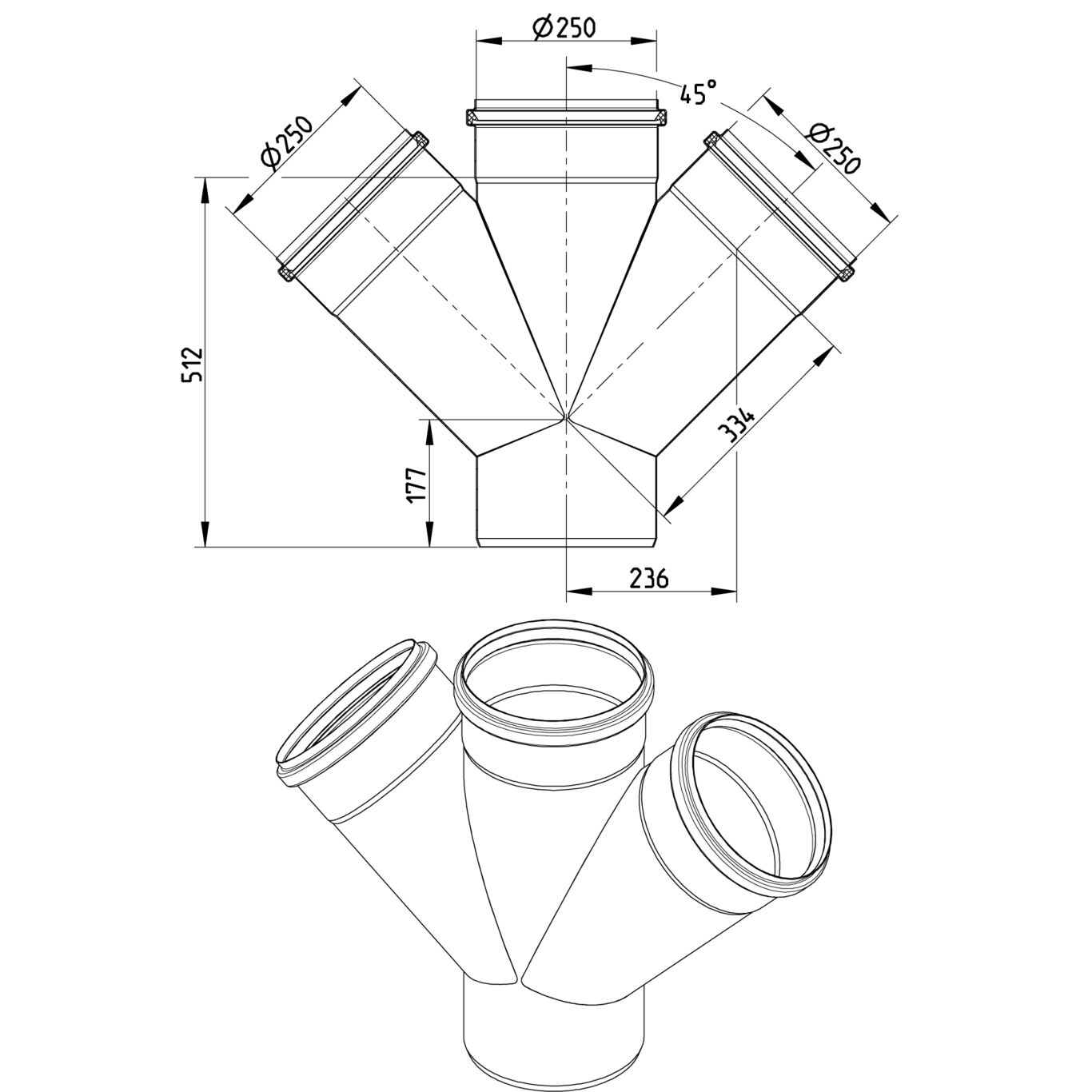

-Pipe diameter: Ø250mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 512 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 7,01 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
