DOUBLE BRANCH 45° - (837.075.110 S)
Part Of the Series: Double branch-45-90
Type no.: 837.075.110 S
EAN no.: 5705499402308
VVS no.: 160236408
RSK no.: 1550379
NRF no.: 2172623
LVI no.: 0254460

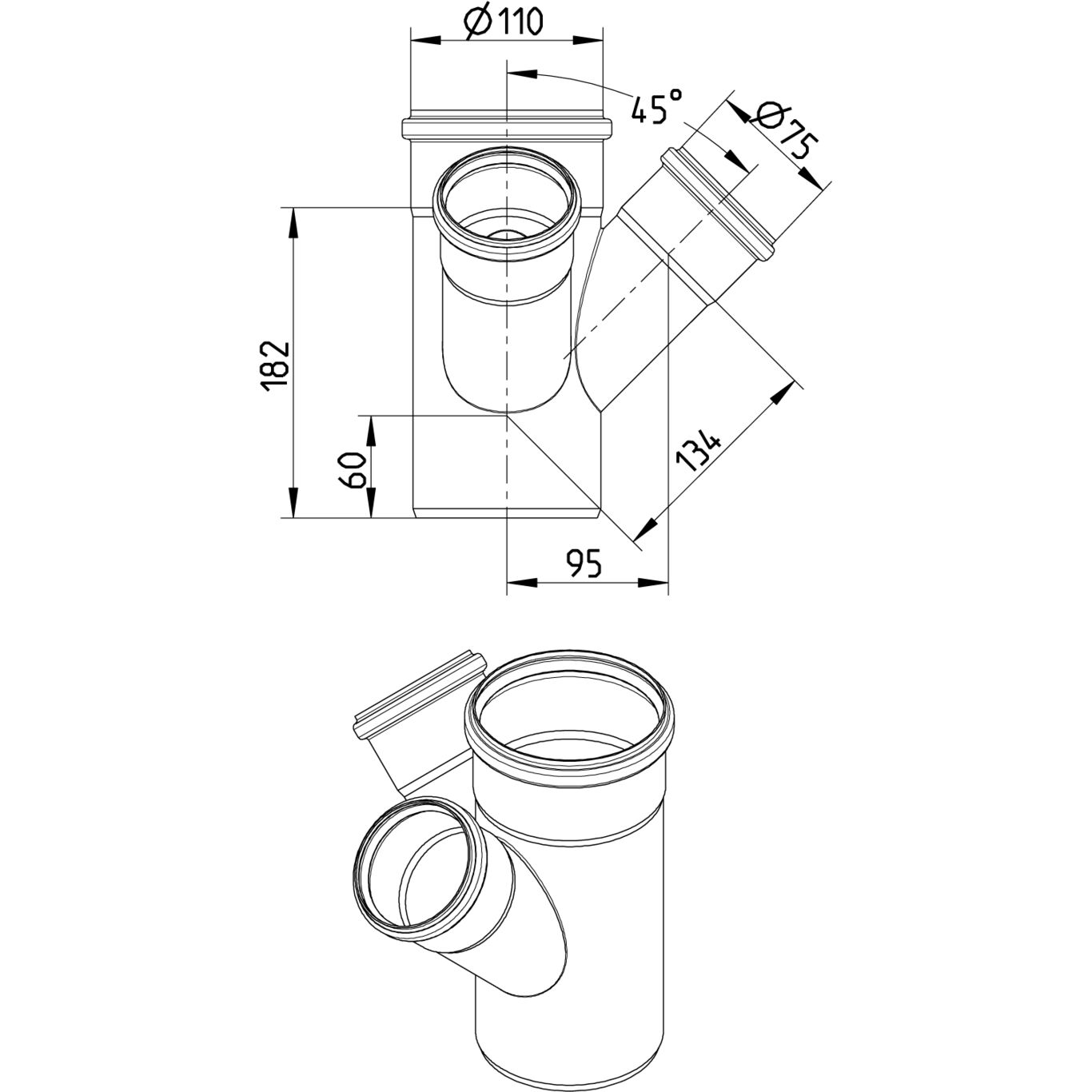

DOUBLE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 182 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia AUS - WMKT00204 - 24 Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM
