DOUBLE BRANCH 87.5° - (831.050.075 S)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.050.075 S
EAN no.: 5705499401813
VVS no.: 160231373
RSK no.: 1549401
NRF no.: 2170512
LVI no.: 0254155

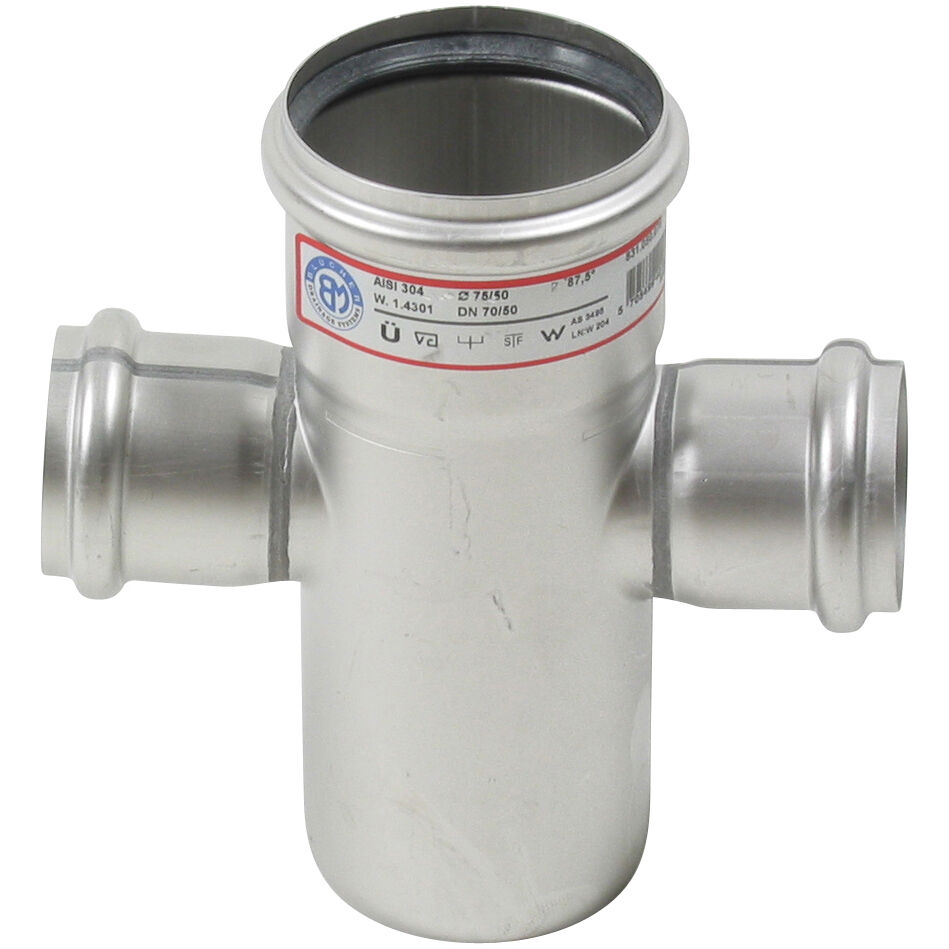

DOUBLE BRANCH 87.5°

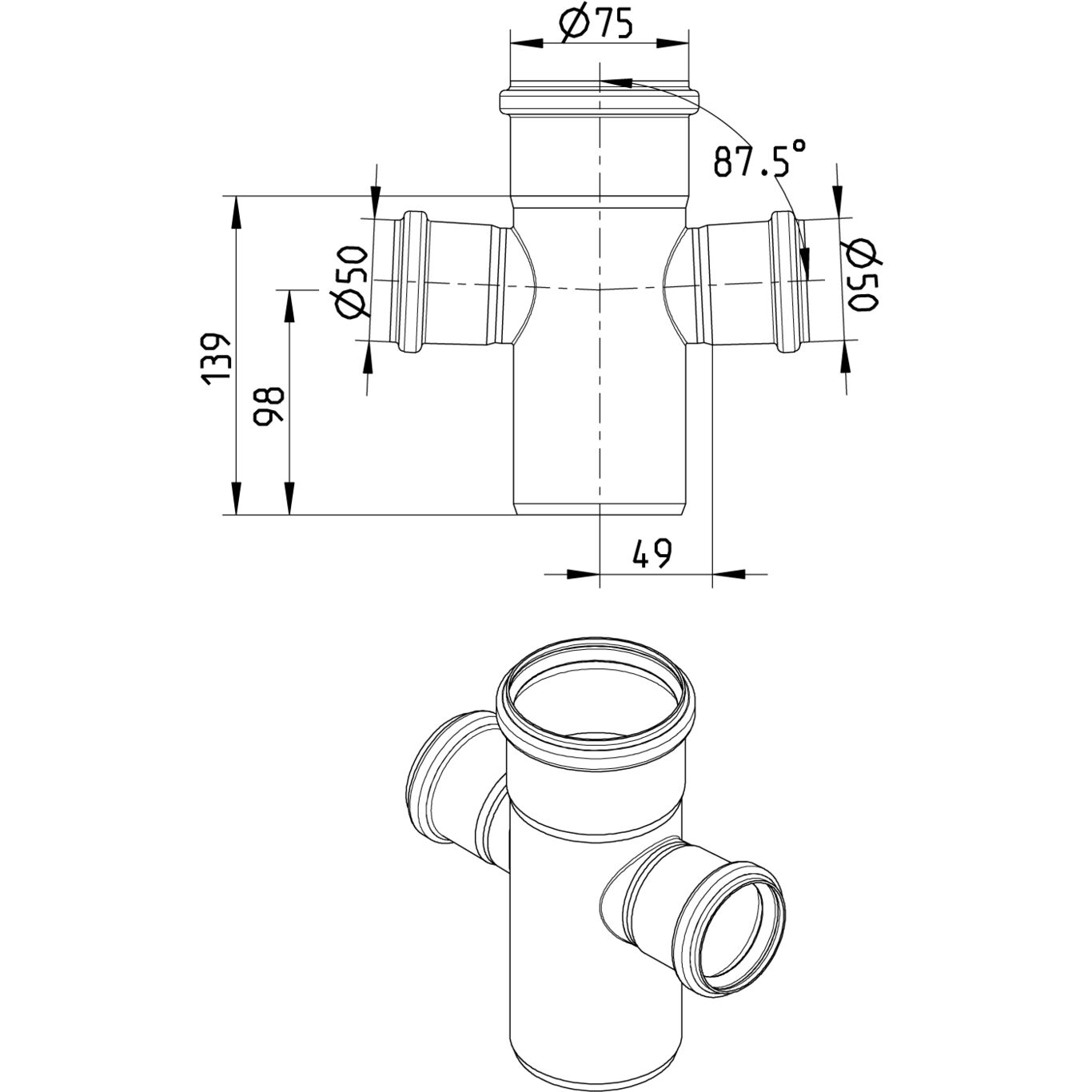

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
