DOUBLE BRANCH 87.5° - (831.050.160)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.050.160
EAN no.: 5705499412567
NRF no.: 2172343
LVI no.: 0246019

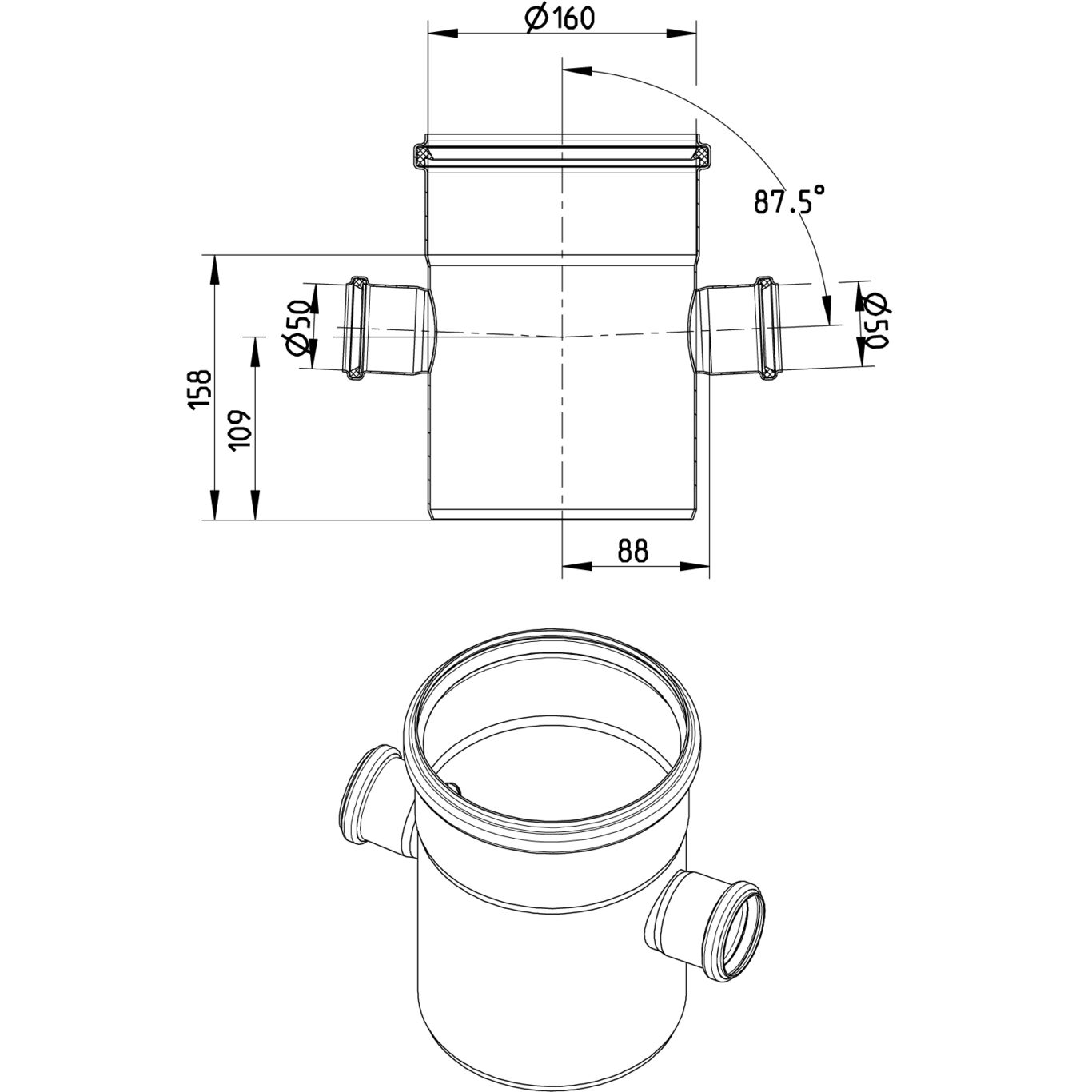

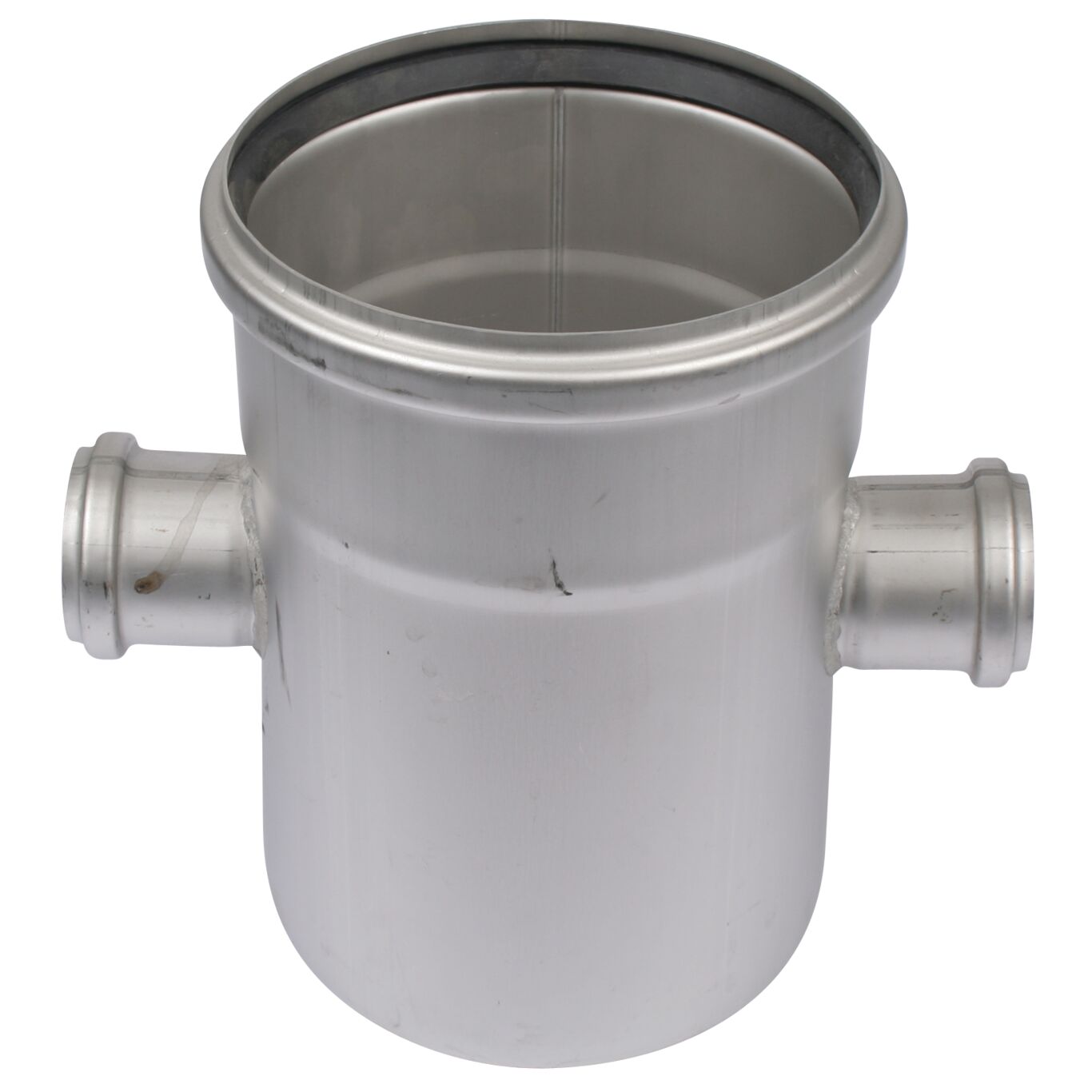

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 158 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,38 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702 RINA -MAC320524XG EuroPipe
