DOUBLE BRANCH 87.5° - (831.110.110)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.110.110
EAN no.: 5705499401882
VVS no.: 160231110
RSK no.: 1550174
NRF no.: 2172345
LVI no.: 0244160

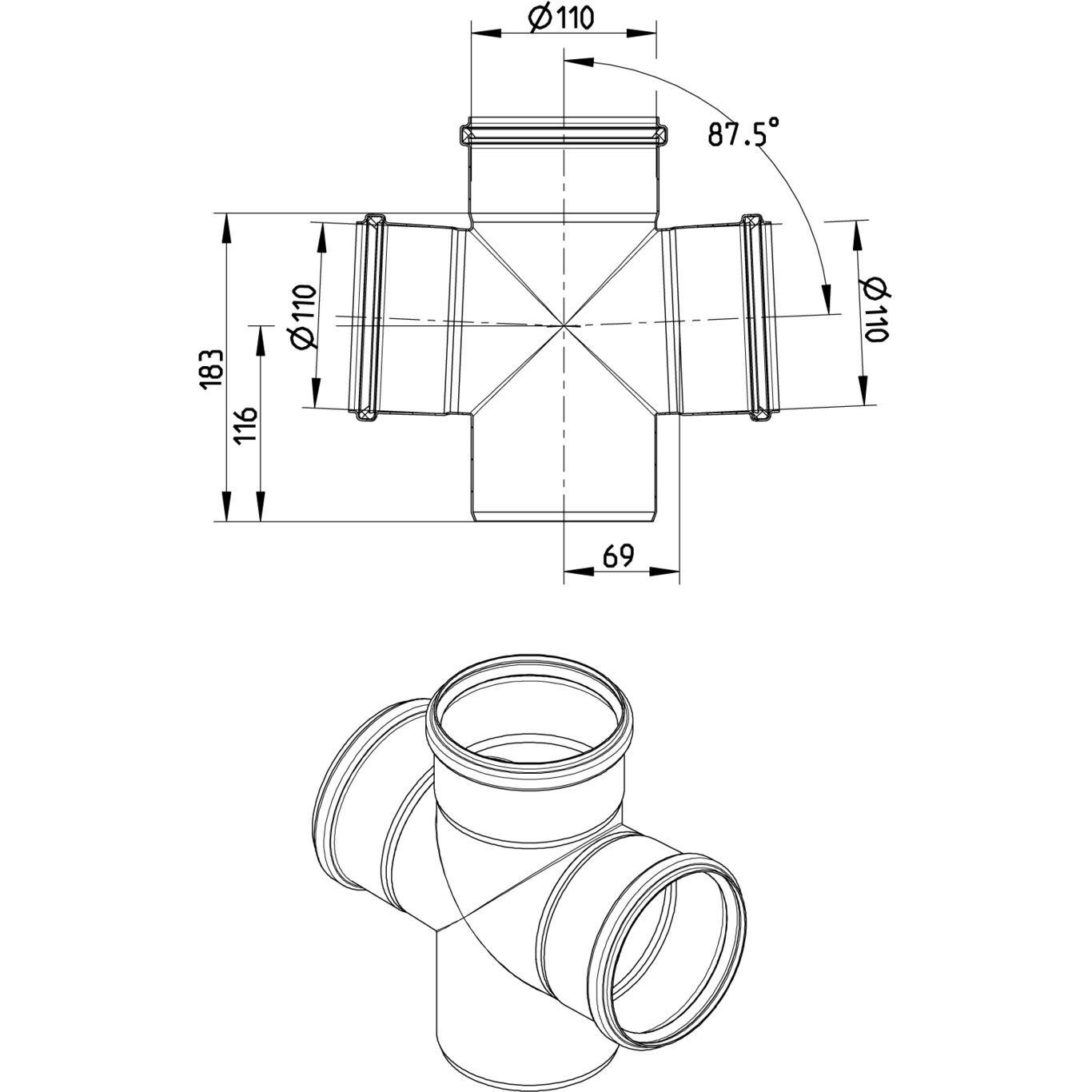

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 183 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,14 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001
