DOUBLE BRANCH 87.5° - (832.075.075)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.075.075
EAN no.: 5705499402001
VVS no.: 160232075
LVI no.: 0244956

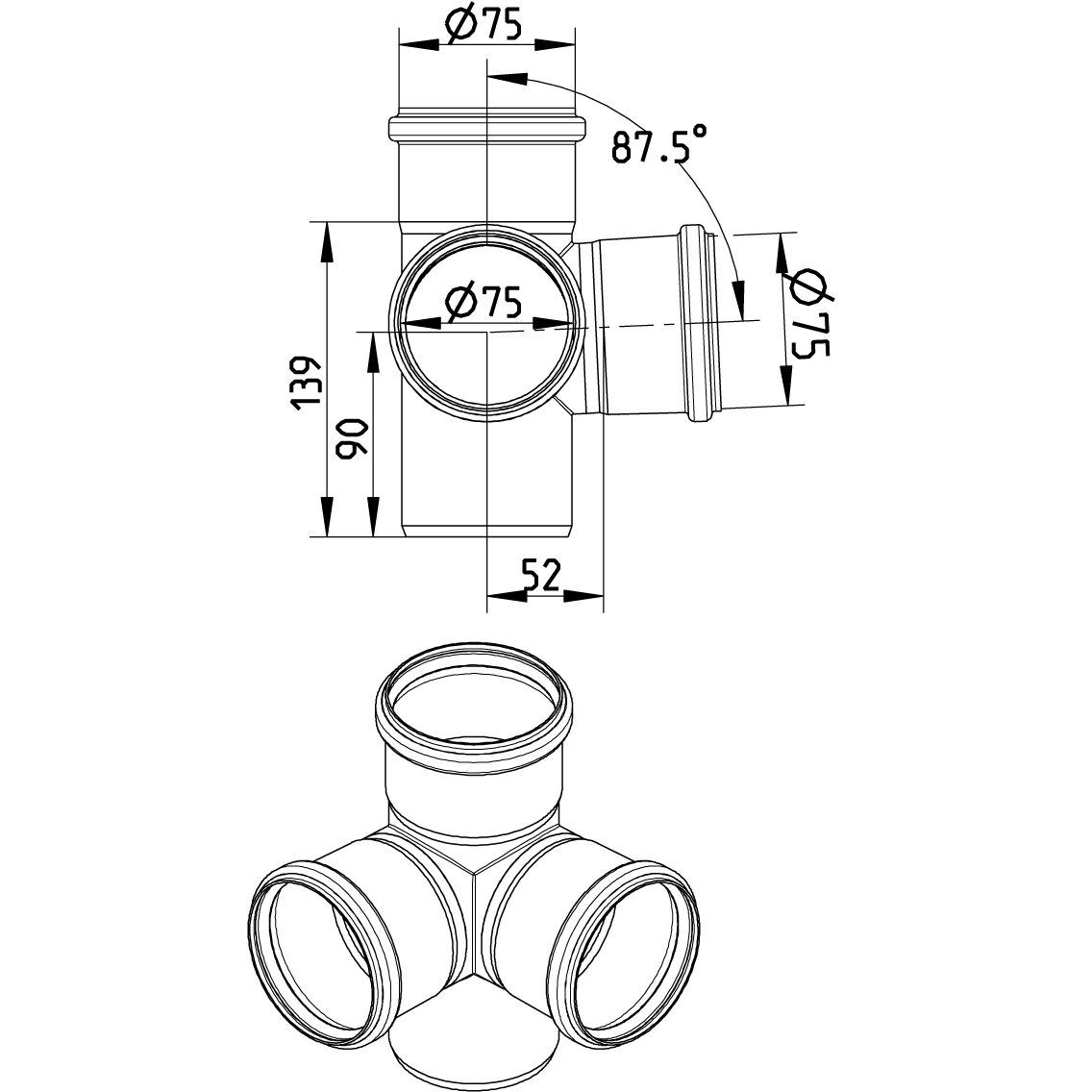

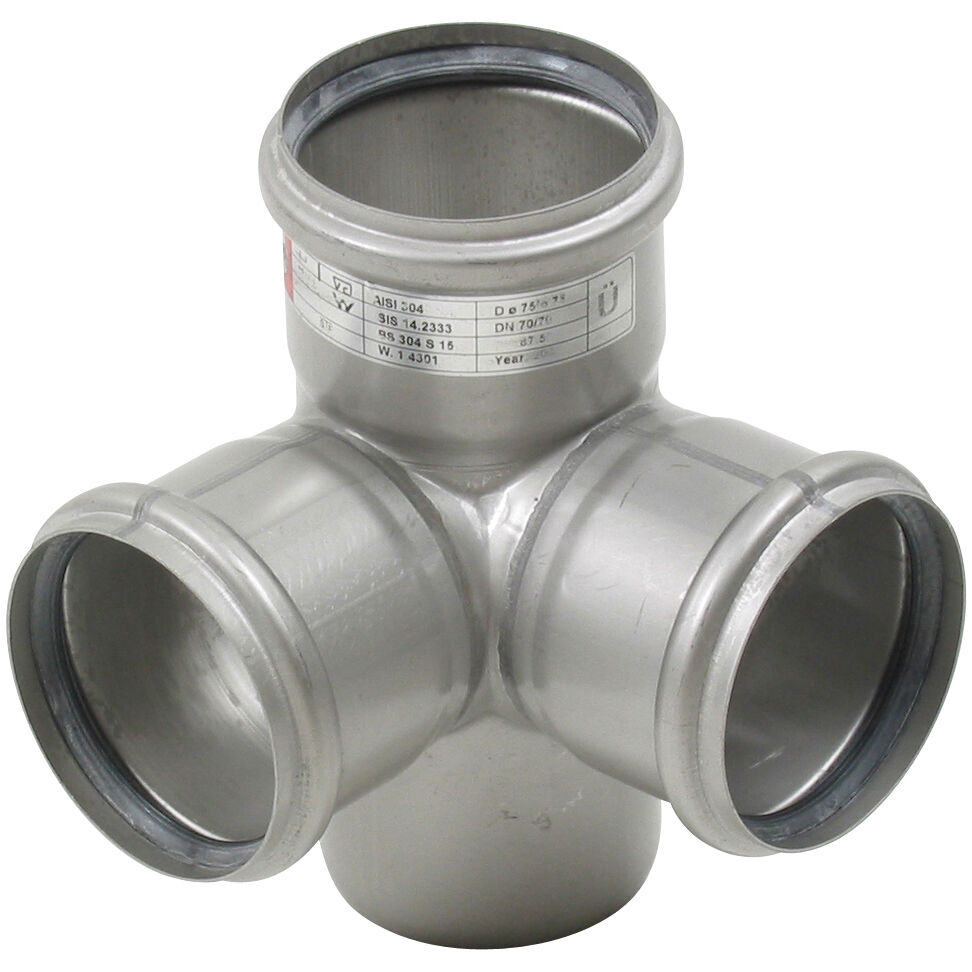

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,66 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24 Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products
