DOUBLE BRANCH 87.5° - (832.160.160)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.160.160
EAN no.: 5705499402087
VVS no.: 160232160
NRF no.: 2172355
LVI no.: 0244973

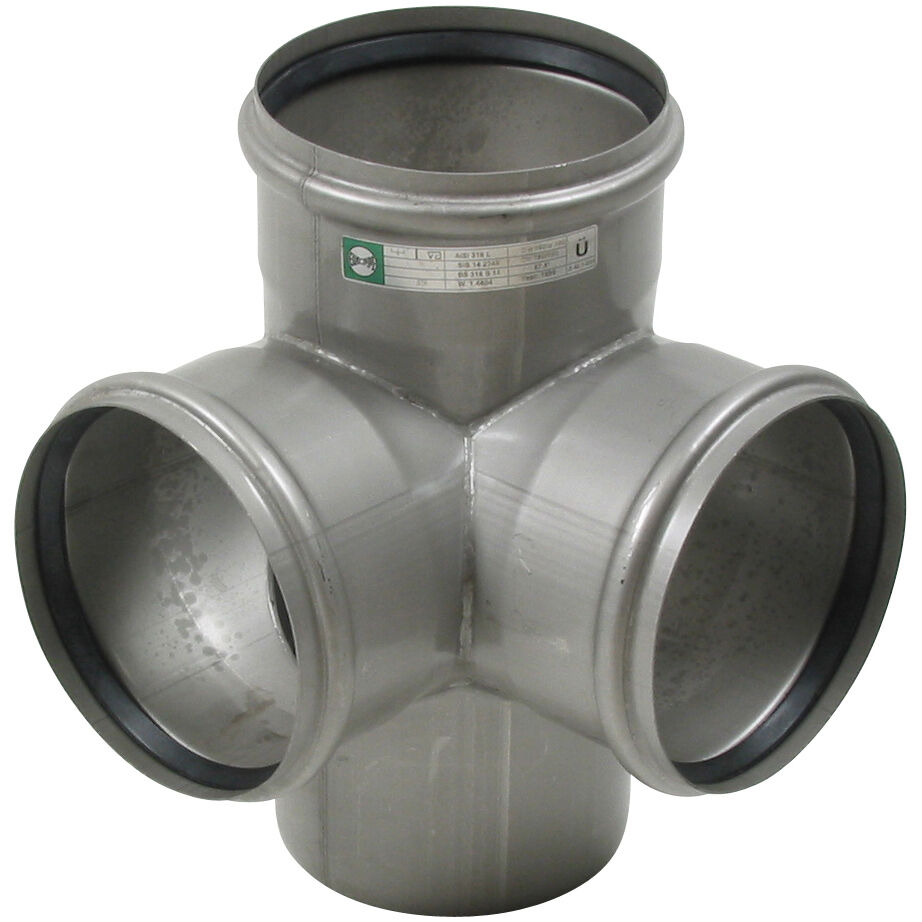

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 288 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,91 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19350
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe
