DOUBLE BRANCH 89° - (831.050.050 AS)
Part Of the Series: Double branch-89-180
Type no.: 831.050.050 AS
EAN no.: 5705499409031
NRF no.: 2172575

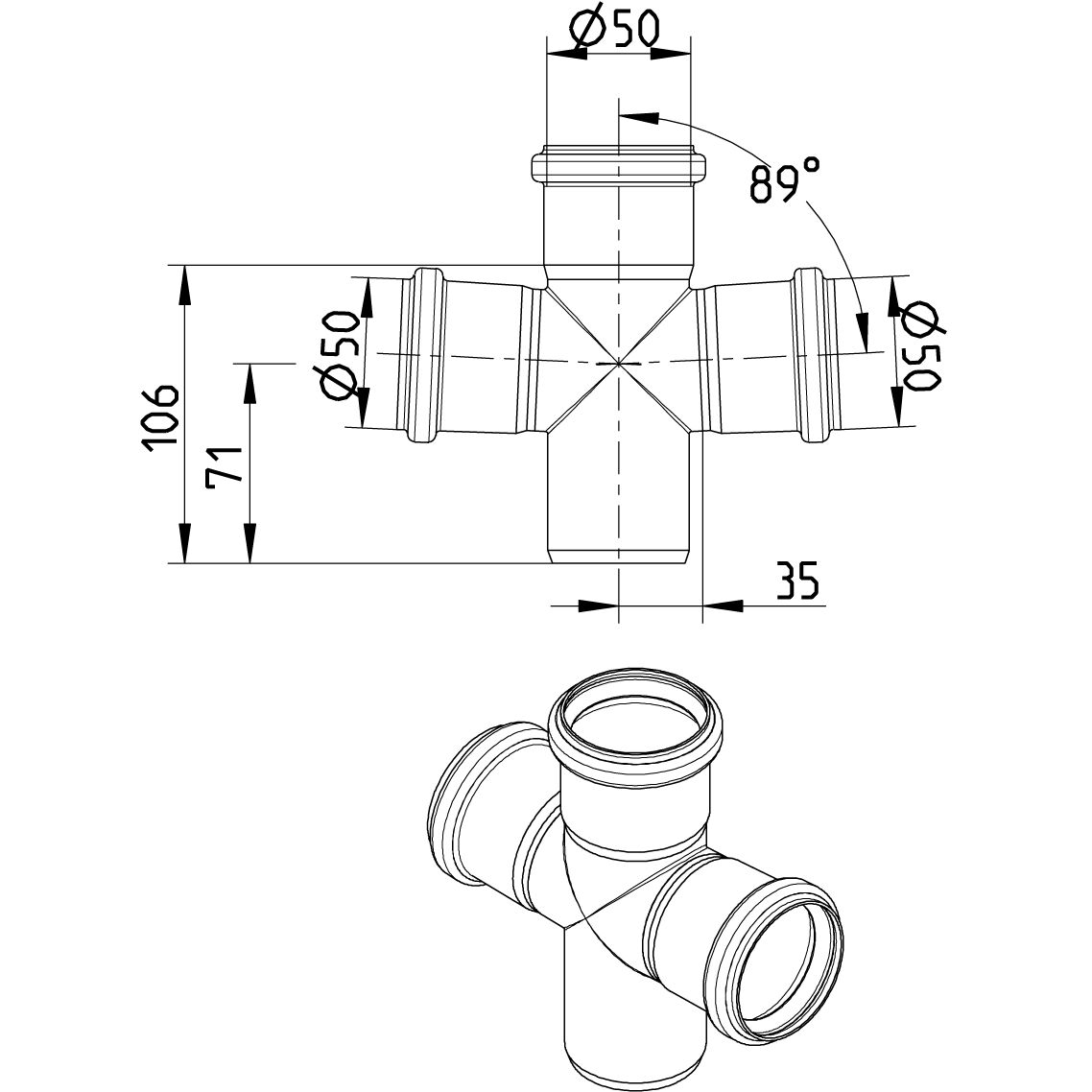

DOUBLE BRANCH 89°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 89 |
Length (mm) | 106 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
